KEB COMBIVERT S6 Series User Manual

71
BRAKE CONTROL AND TEMPERATURE DETECTION FOR P- CONTROL
4.4.2.1 Operation without temperature detection
Use of the COMBIVERT without evaluation of the temperature input:
• Deactivate the evaluation (pn12 = 7).
or
• Install bridge between terminal TA1 (X1C.9) and TA2 (X1C.10) (dr33 = 1).
4.4.2.2 Connection of a KTY sensor
NOTICE
No protection of the motor winding in case of wrong connection.
► Operate KTY sensors in forward direction. Non-observance leads
incorrect measurement in the upper temperature range.
► KTY sensors may not be combined with other detections.
X1C.9 (TA1)
X1C.10 (TA2)
+
KTY84
Name Function Stetting
TA1 (X1C.9);
TA2 (X1C.10)
Temperature sensor input
dr33=0; KTY84/130
dr33=3; KTY83/110

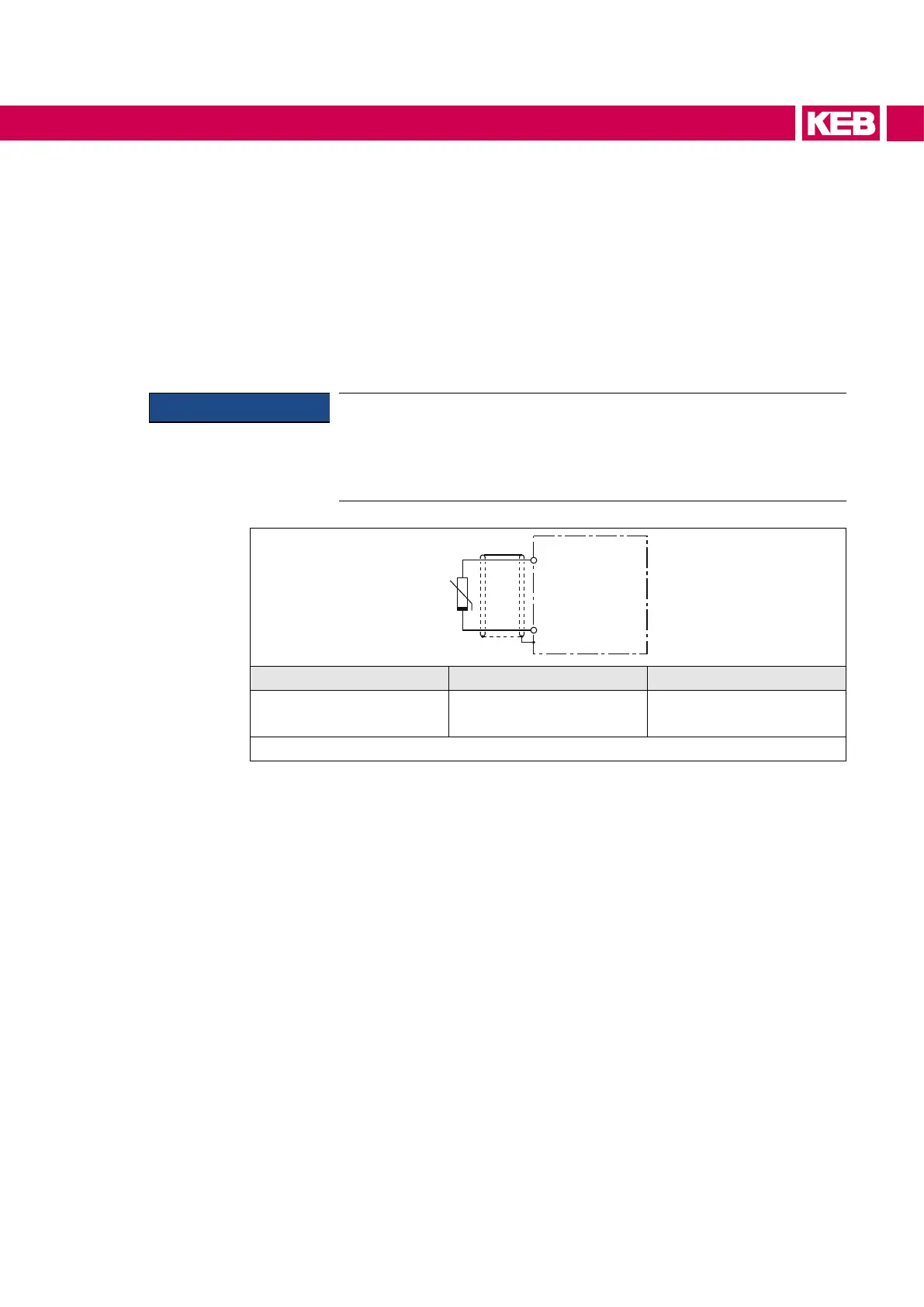

Figure 29: Connection of a KTY sensor for P-control
