Keithley DAQ6510 Quick Start Guide

Verify measurement operation
The following steps provide a quick way to verify that the
instrument is operating correctly.
To verify measurement operation:
1. Turn the instrument on.
2. On the front panel, press the HOME key.
3. On the Functions swipe screen, select DCV.
4. Short the connections.
The voltage measurements appear in the MEASURE DC
VOLTAGE area of the home screen and should read
approximately 0 V.

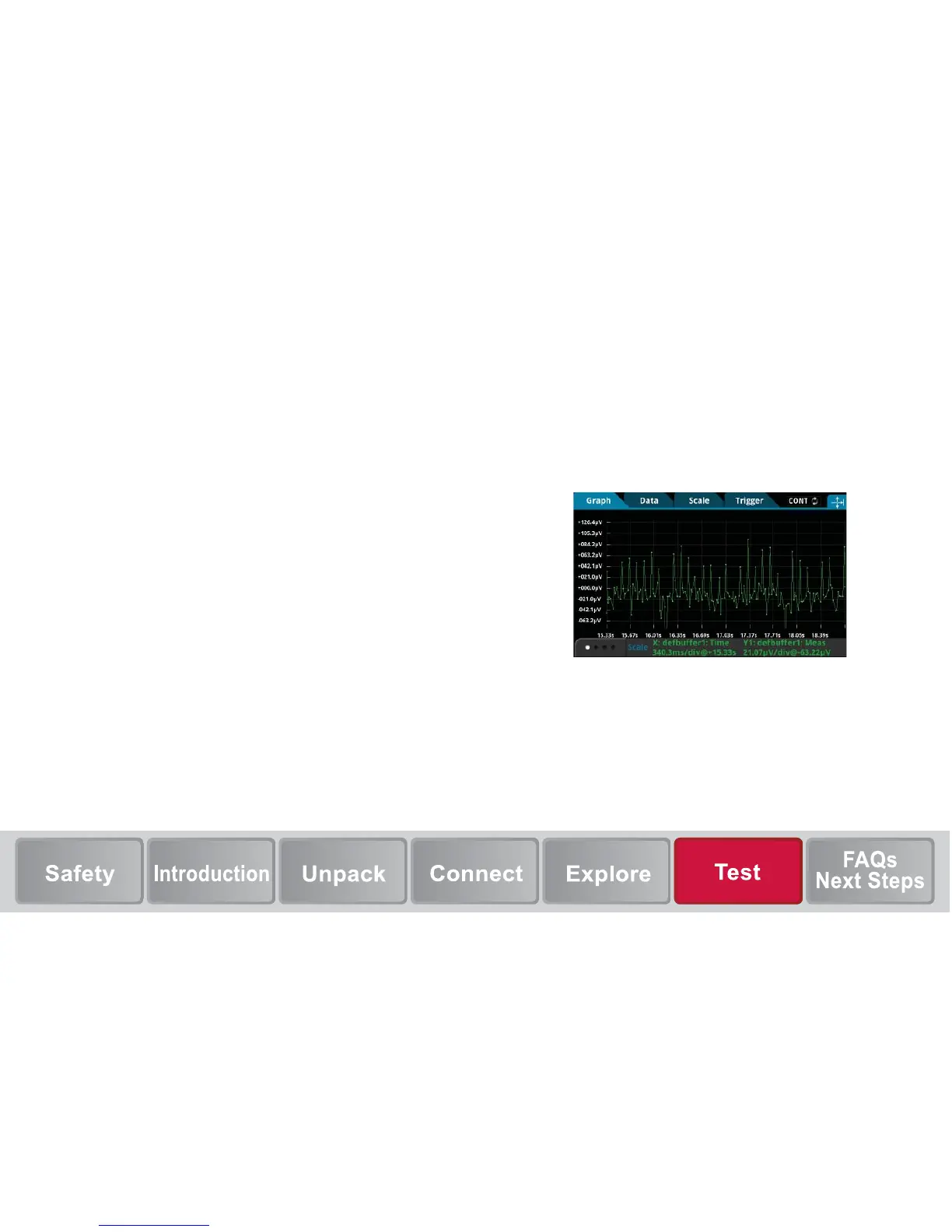

To view measurements on the graph screen:
1. Press the MENU key.
2. Under Views, select Graph.
You can adjust the graph settings using the options in the Data
and Scale tabs.

Keithley DAQ6510 Specifications

General

Measurement Functions	DC Voltage, AC Voltage, DC Current, AC Current, Frequency, Temperature, Capacitance
Frequency Range	3 Hz to 300 kHz
Temperature Range	-200°C to 1820°C
Connectivity	USB, Ethernet, GPIB
Digit Display	6.5 digits
Channels	Up to 80 channels
Memory	Internal non-volatile memory for data storage
Power Supply	100 V to 240 V, 50 Hz to 60 Hz
Dimensions	213 mm x 297 mm x 88 mm (8.4 in x 11.7 in x 3.5 in)
Weight	3.6 kg
