Section
3: Using a remote interface Model 2450 Interactive SourceMeter® Instrument
User's Manual
3-10 2450-900-01 Rev. C / December 2013

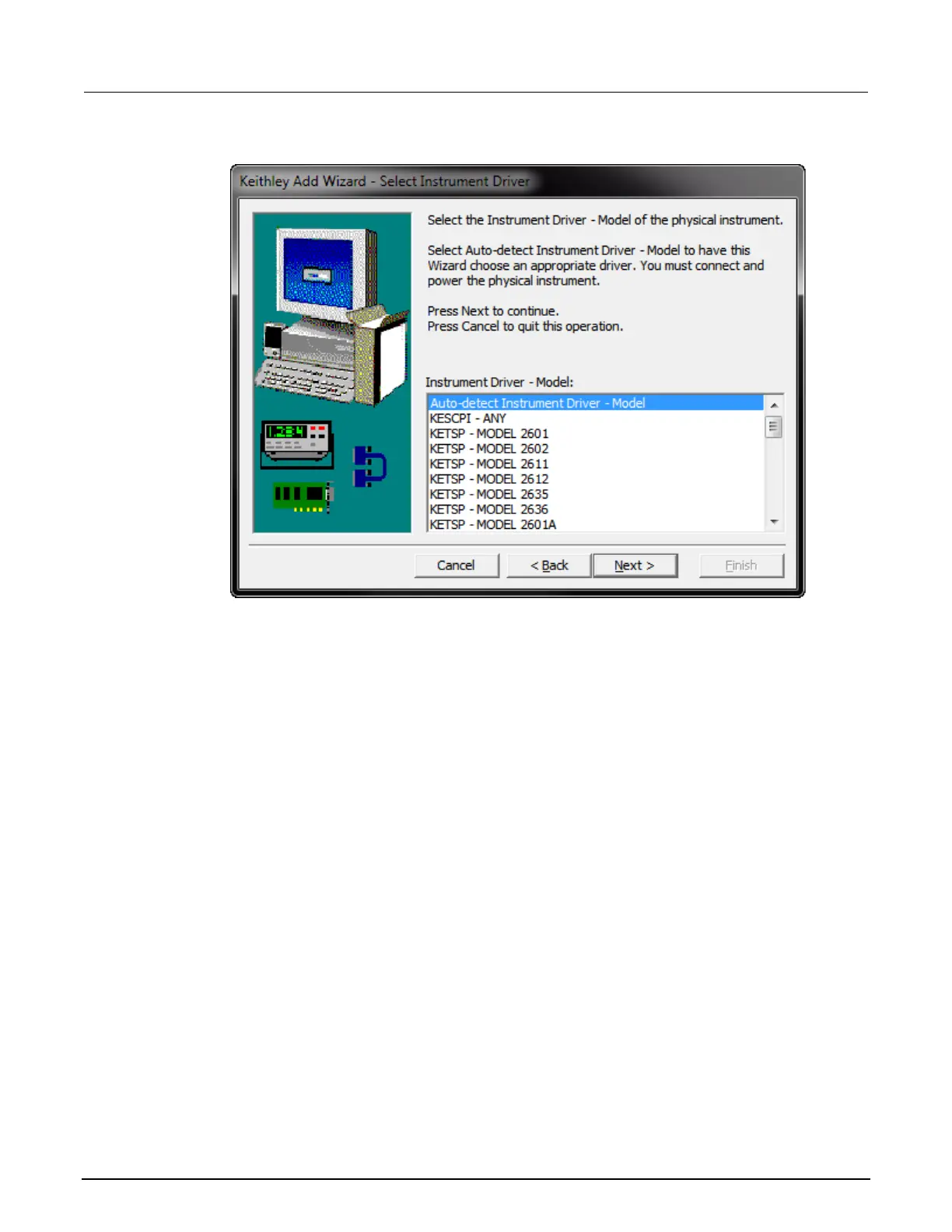

Figure 12: Select Instrument Driver dialog box
6. Select Auto-detect Instrument Driver - Model.
7. Click Next. The Configure USB Instrument dialog box is displayed with the detected instrument
VISA resource string visible.
8. Click Next. The Name Virtual Instrument dialog box is displayed.
