Keithley Interactive SourceMeter 2450 - Page 29

Model 2450
Interactive SourceMeter® Instrument User's Manual Section 3: Using
a remote interface
2450-900-01 Rev. C / December 2013 3-11

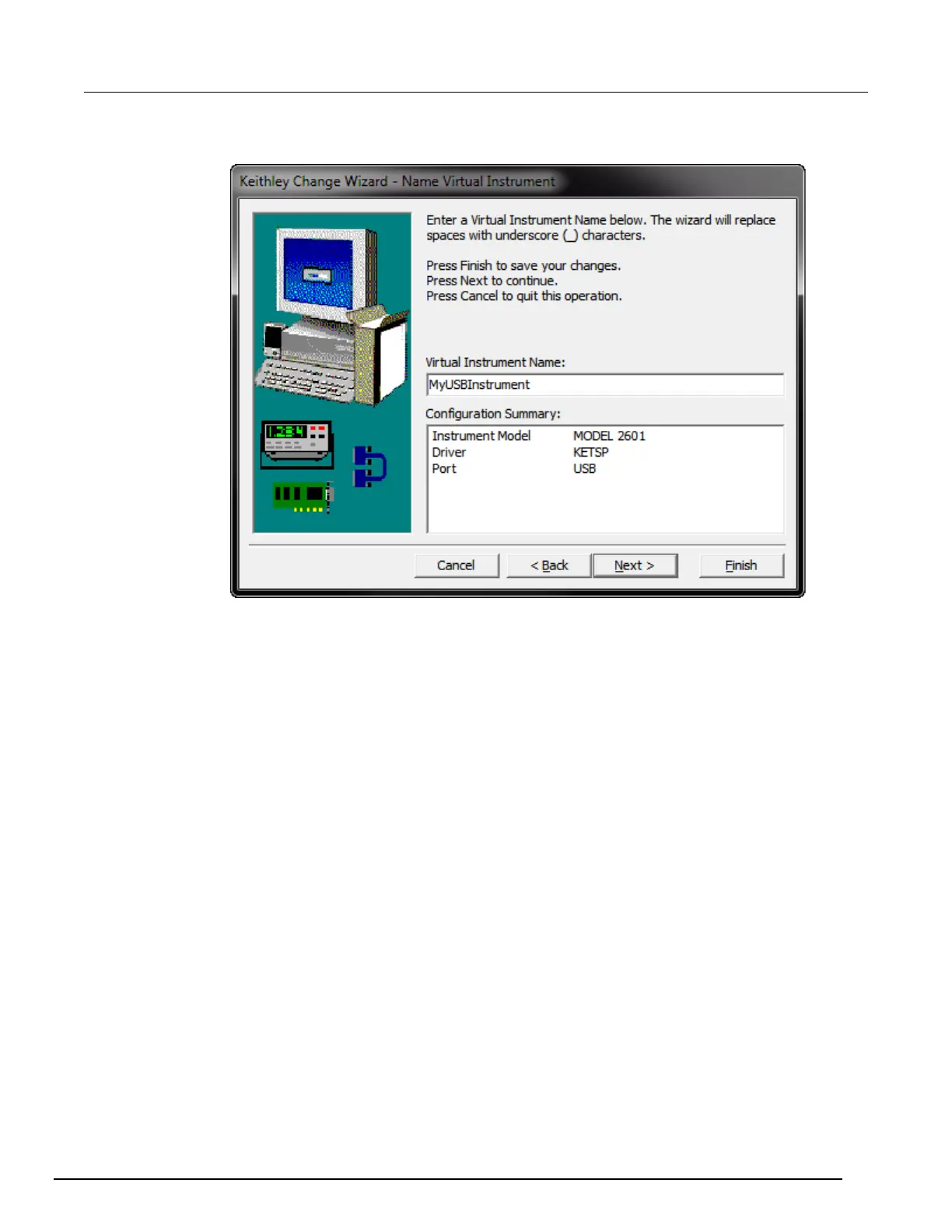

Figure 13: Name Virtual Instrument dialog box
9. In the Virtual Instrument Name box, enter a name that you want to use to refer to the instrument.
10. Click Finish.
11. Click Cancel to close the Wizard.
12. Save the configuration. From the Keithley Configuration Panel, select File > Save.
