©2009 4Front Engineered Solutions, Inc.
January 2009 6004754F — HK and HK-S Hydraulic Dock Leveler, 3 Button — SafeTFrame
45
PARTS LIST
, continued
SUBFRAME AND MAINTENANCE STRUT ASSEMBLIES
Item Quantity
Description
Part Number
  
6' Long 713-308
8' Long 708-882
10' long 713-345
   
   
*   
*5 1 PIN, Cotter - Hair 035-200
   
   
   
9 1 PIN, Cotter 035-036
10 1 PIN, Clevis 035-051
   
Manual 6004754
Placard 6004009

184-475
Manual 6004754
Placard 6004010
12 1 Danger Label — Entering Pit 921-070
*Included in item 1.

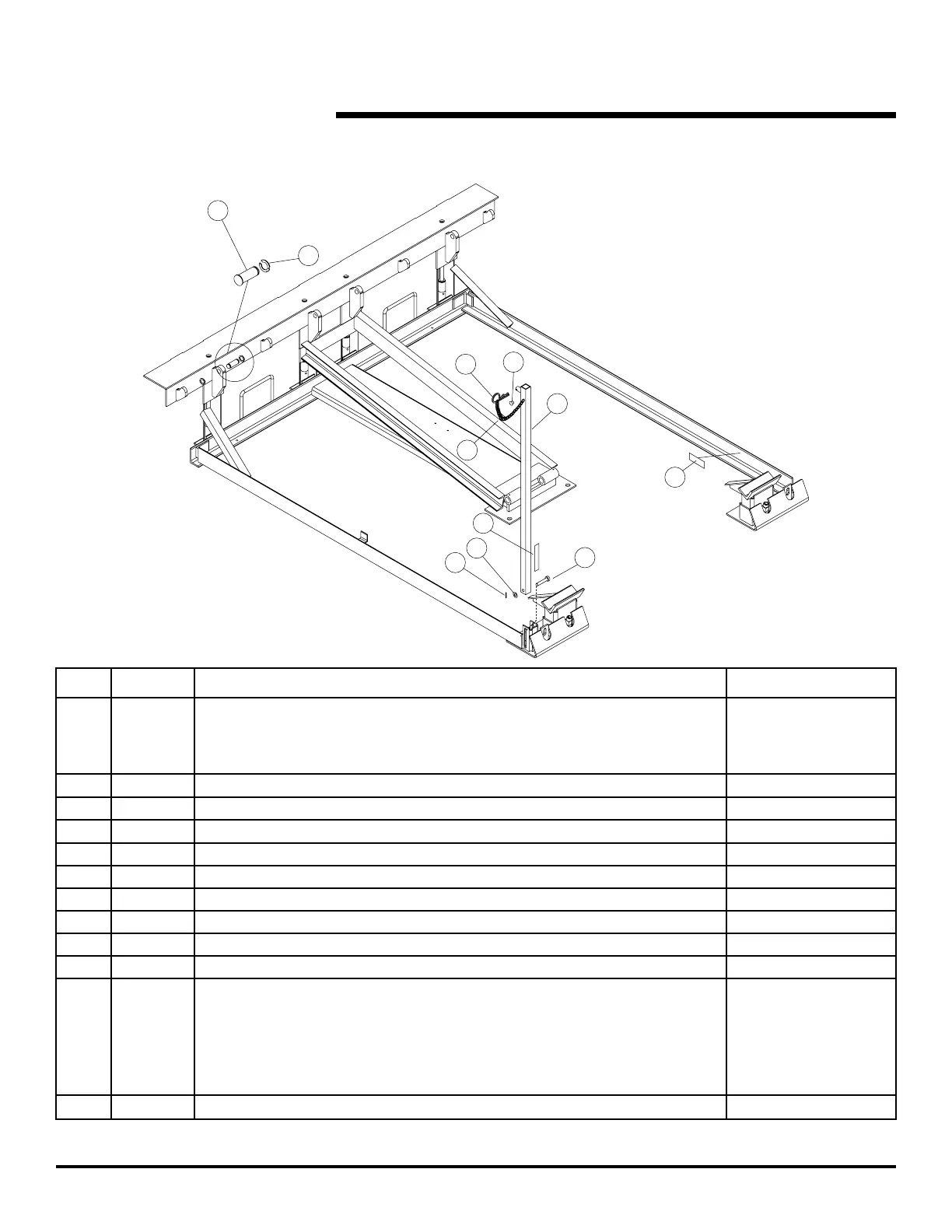

Fig. 51
1
4
7
5
6
8
9
10
2
3
12
