2.5.2 Wire feeder connection
The HiArc power source is designed to be used with the HiArc F wire feed units.
To connect the F 10 wire feeder unit to the power source, complete the following steps:
1.
2.
3.
1. Attach the HiArc F wire feed unit power cable to the + connector of the HiArc power
source. Hand tighten the connector with a clockwise push and twist action to lock.
2. Attach the HiArc F wire feed unit control cable plug to the control socket of the power
source.
3. Connect the shielding gas hose to the gas bottle or to the shielding gas distribution
system.
NOTE! Please read carefully the wire feeder installation and operation instructions in the Kemppi
HiArc F operating manual.
NOTE! Normally the wire feeder should be connected to the plus pole. However, with some ller
wires and shielding gases, you should connect the feeder to the minus pole, and the earth return
cable to the plus pole.

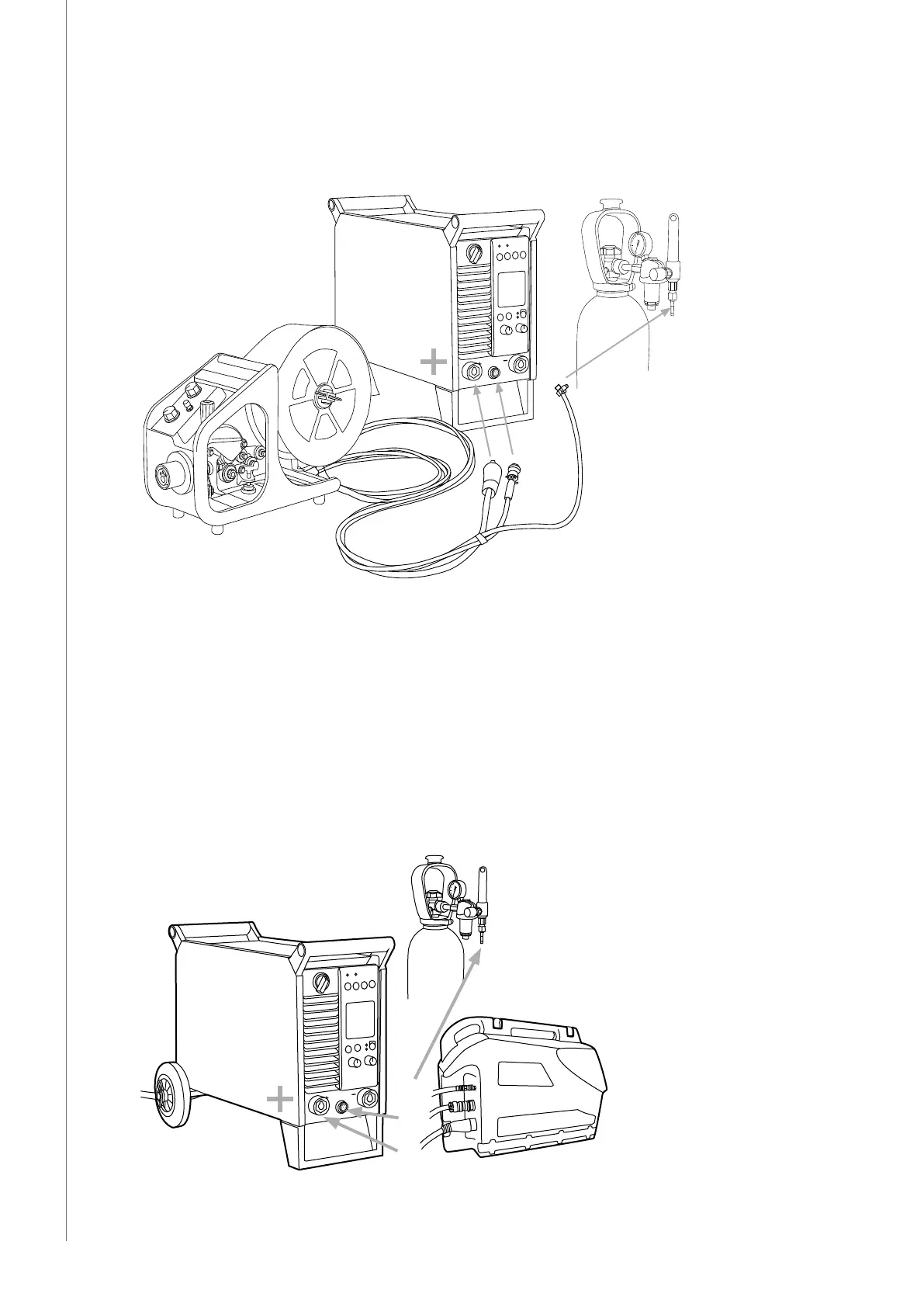

HiArc F 30 connections to the power source:
1.
2.
3.
HiArc M 400A, M 500A
8
