2. INSTALLATION
2.1 Before use
The product is packed in cartons designed specically for them. However, always make sure
before use that the products have not been damaged during transportation.
Check also that you have received the components you ordered and the instruction manuals
needed. Product packaging material is recyclable.
NOTE! When moving the welding machine, always lift it from the handle, never pull it from the
welding gun or other cables.
Operating environment
This machine is suitable for both indoor and outdoor use. Always make sure that the air ow in
the machine is unrestricted. The recommended operating temperature range is –20…+40 °C.
Please read also the Safety Instructions concerning the operating environment.

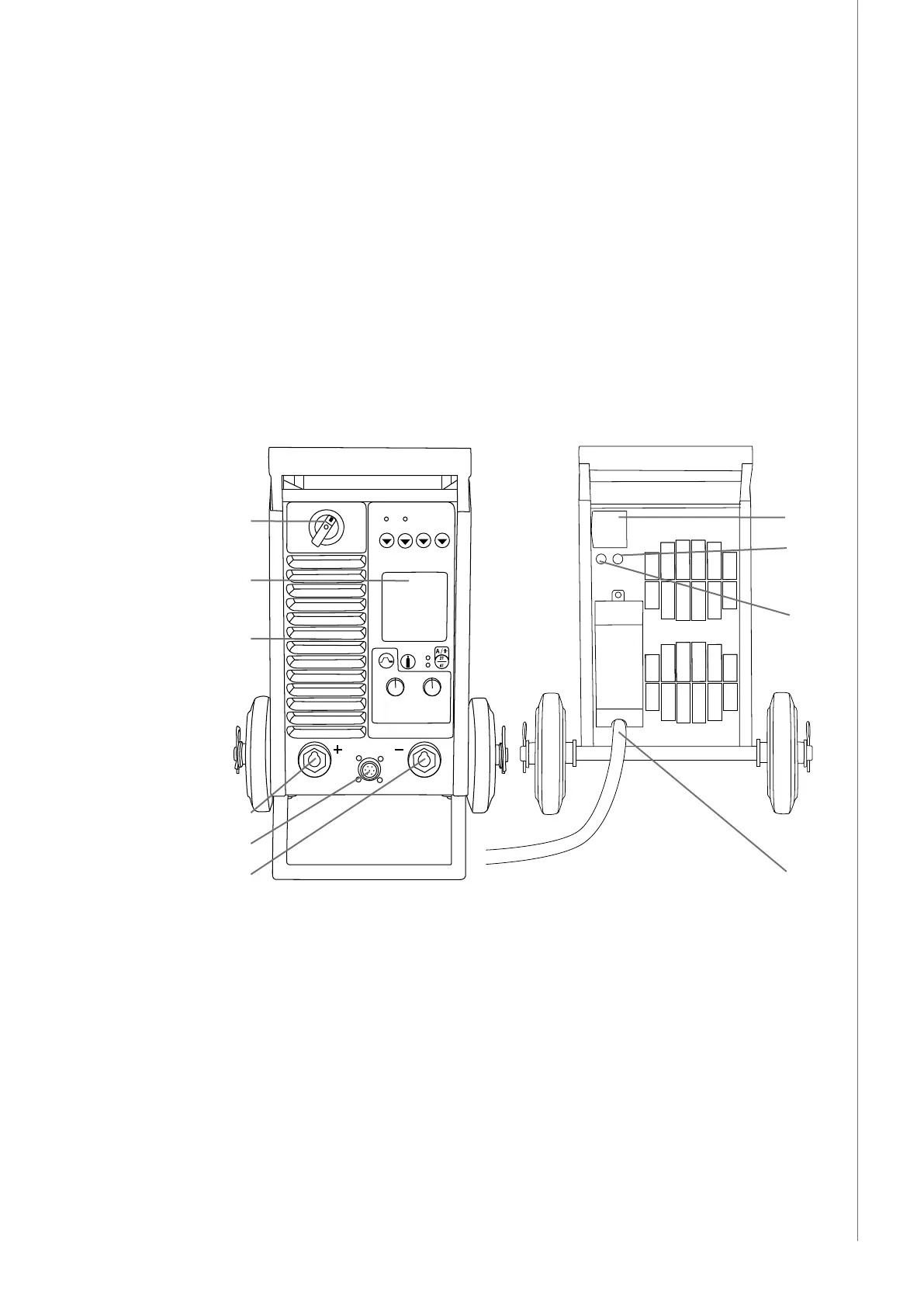

2.2 Machine introduction
1.
2.
3.
4.
5.
6. 7.
8.
9.
10.
FRONT
1. ON/OFF switch
2. LCD display
3. Fan grill
4. Wire feeder cable connector ( + )
5. Control cable connection
6. Earth return cable connector ( – )
BACK
7. Mains lead connector
8. Power source fuse, 8A
9. Shielding gas heater fuse, 6.3 A
10. Connector for shielding gas heater
