3. USING THE MACHINE
3.1 Control panel
2.
4.
5.
1.
3.
9.
12. 13.
8.
10.
7. 11.
6.

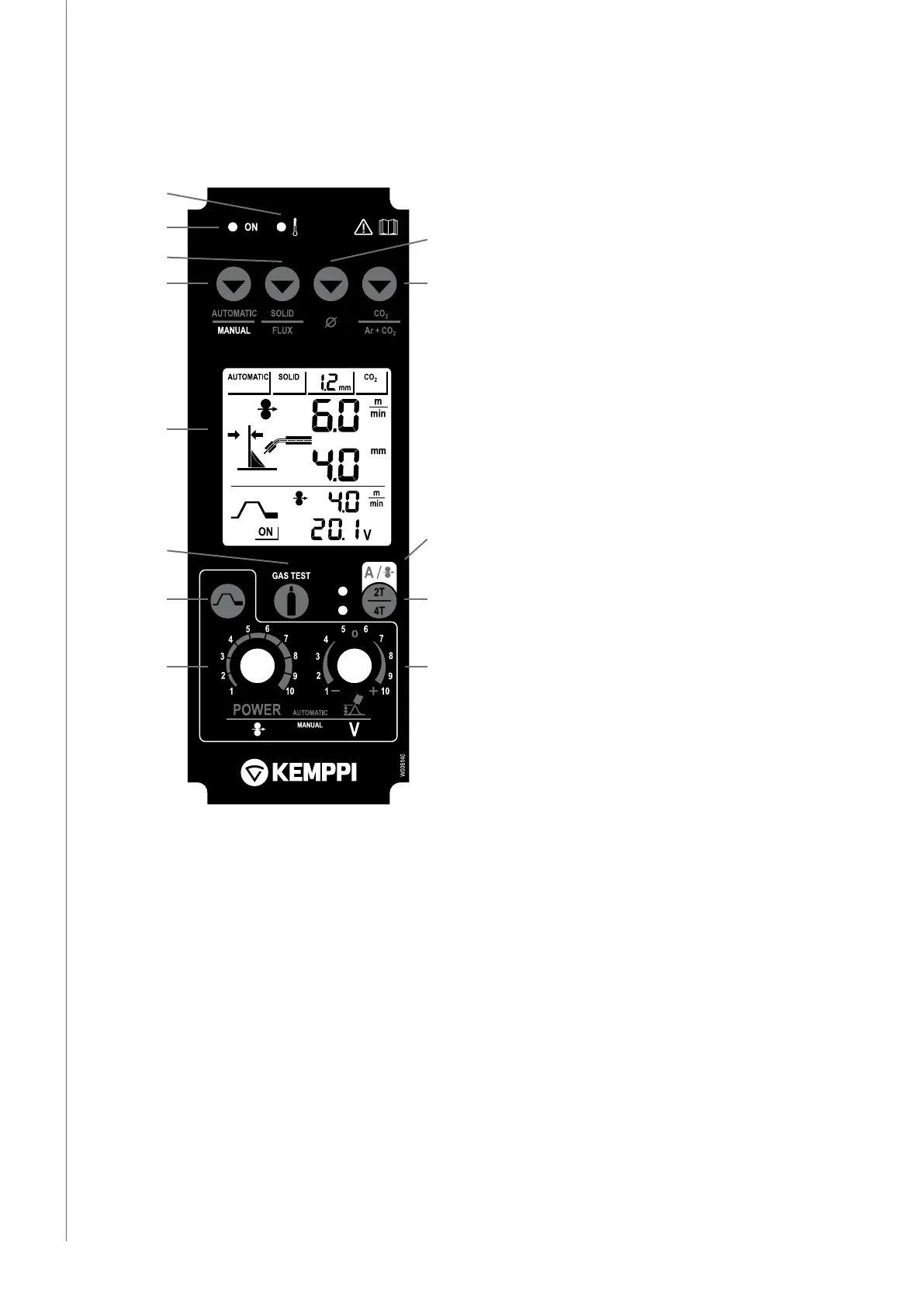

Control panel oer the following control functions
1. Indicator light for ON/OFF
2. Overheating indicator
3. Selection for MANUAL or AUTOMATIC mode
4. Selection for ller wire material type (automatic mode)
5. Selection for ller wire diameter (automatic mode)
6. Selection for shielding gas (automatic mode)
7. Selection of crater ll function
8. Gas test
9. Display
10. Selection for display of amperes/wire feed speed (automatic mode)
11. Selection of 2T/4T gun operating mode
12. Control knob for wire feed speed or power (Crater ll only)
13. Control knob for voltage or arc length (Crater ll only)
HiArc M 400A, M 500A
