Kemppi MasterTig 2200 - Lower IGBT Voltage Analysis (2800;3500)

Kemppi MasterTig 2200
31 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
B

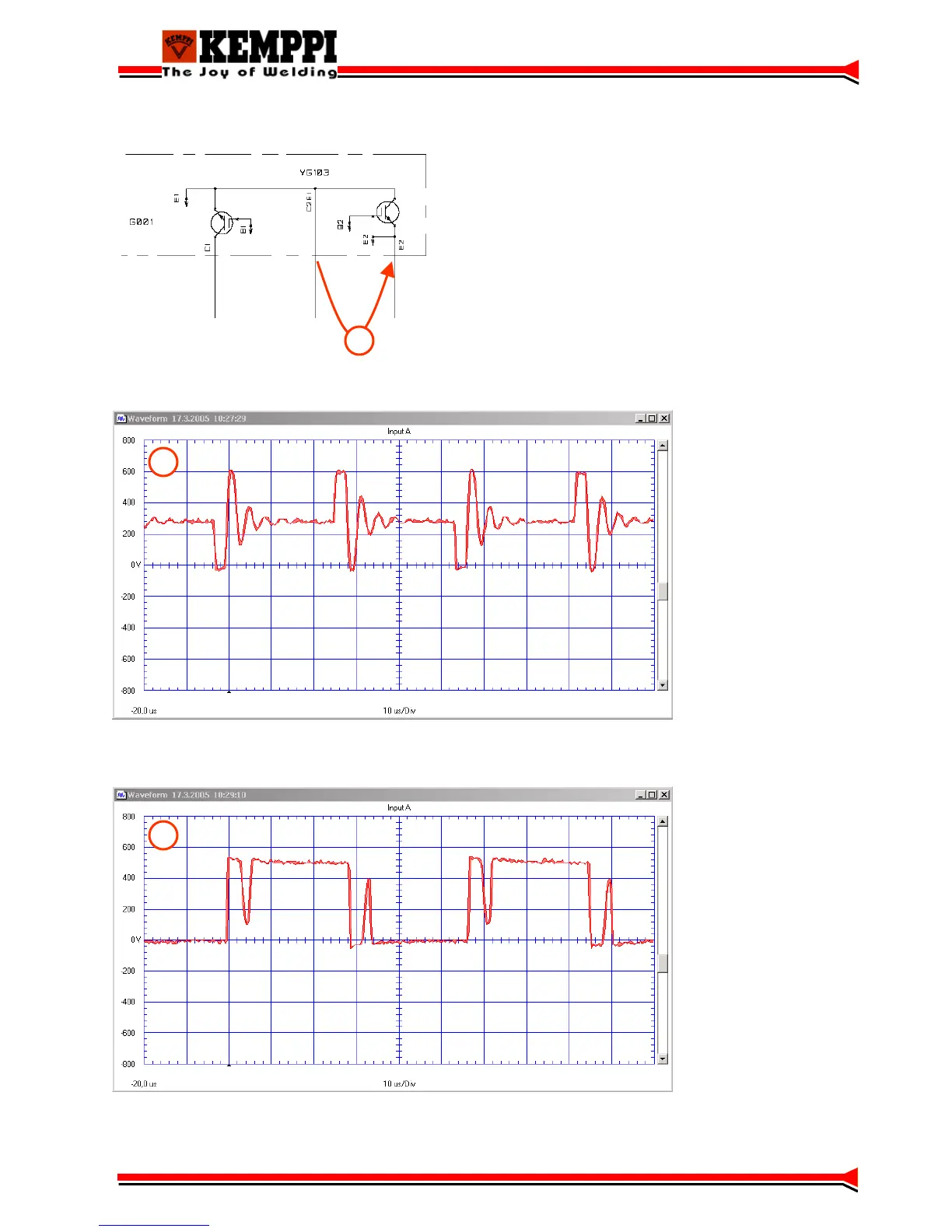

Voltage over the lower IGBT with minimum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point B).
Voltage over the lower IGBT with maximum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point B).
Voltage over the lower IGBT (Master / Mastertig 2800/3500)
