Kemppi MasterTig 2200 - Secondary Diode Voltage Analysis (1400;1500;2200)

Kemppi MasterTig 2200
31 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

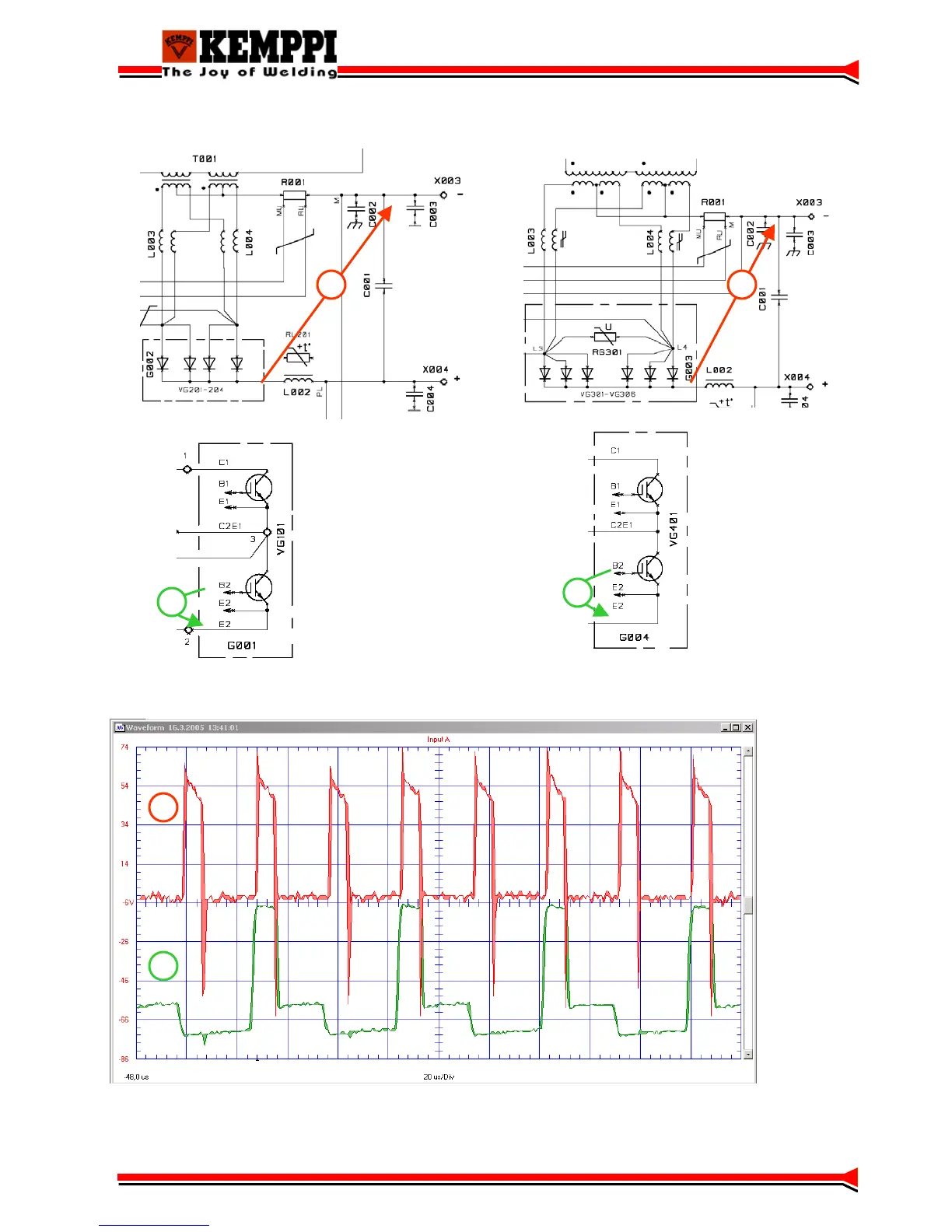

Voltage after the secondary diodes (measuring point F) and lower IGBT gate pulse (measuring point D).
F
Voltage after the secondary diodes (Master / Mastertig 1400/1500/2200)
F
Master 1400/1500
Master 2200
D
D
F
D
