When you switch the machine on, a green standby light switches on.
Simultaneously, the main switch indicator light switches on. If the machine
overheats or the supply voltage is too low or too high, the welding operation
automatically switches off and the yellow overheating indicator light switches
on. The light switches off when the machine is ready for operation again. Make
sure that there is enough space around the machine allowing air to freely ow
and cool the machine.
3.5.1. Display in automatic mode

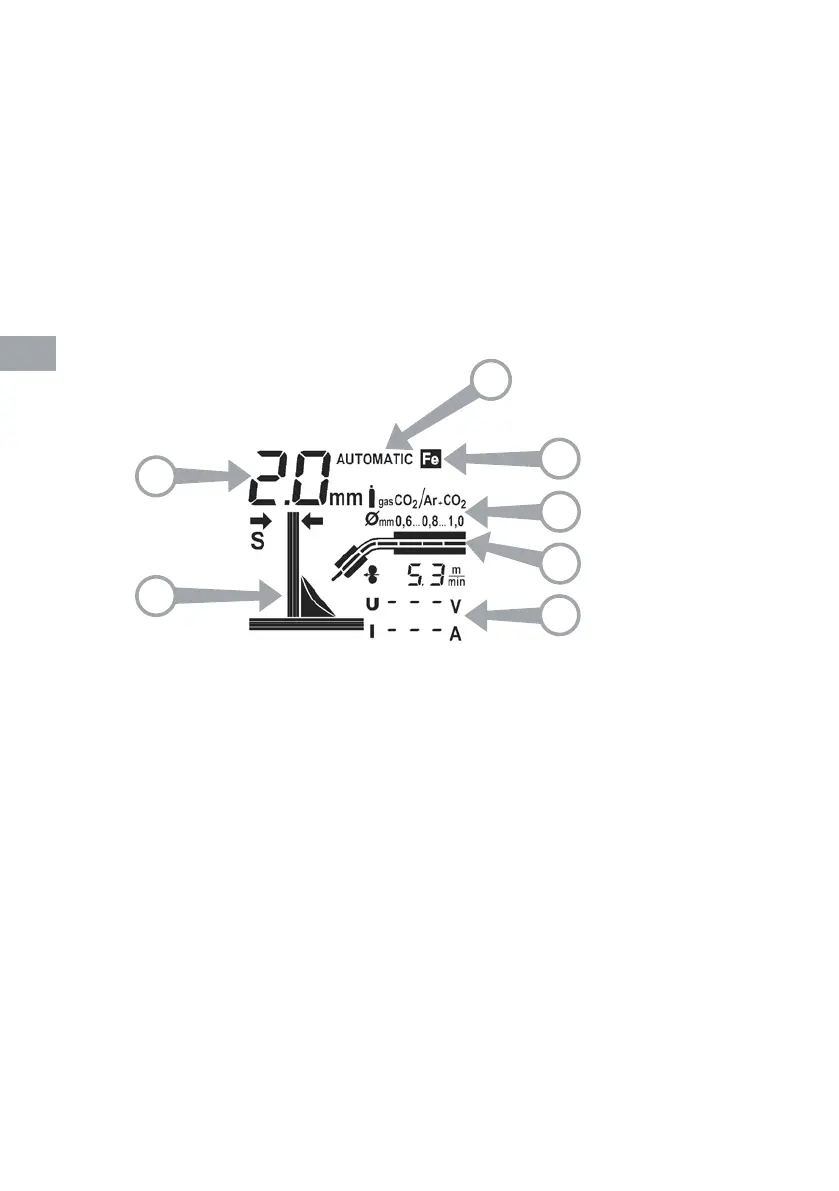

Figure 3.7. Machine display in automatic mode
1. Sheet thickness
2. Chart for sheet thickness and arc length trimmer
3. Operating mode
4. Material
5. Shielding gas and wire diameter recommendation
6. Wire feed speed chart
7. Welding values: wire feed speed, welding voltage and welding current
Sheet thickness displays the selected welding power setting which is based on
the llet weld’s sheet thickness in millimetres. When you adjust the welding
power according to sheet thickness, the sheet thickness in the chart changes
thinner or thicker correspondingly.
The selected operating mode and material are shown on the display. The display
also shows a recommendation as to what shielding gas and wire diameter
should be used with the material in question.
