MinarcMig™ Adaptive 180
© Kemppi Oy 0640 7
3.2. GENERAL VIEW OF THE MACHINE

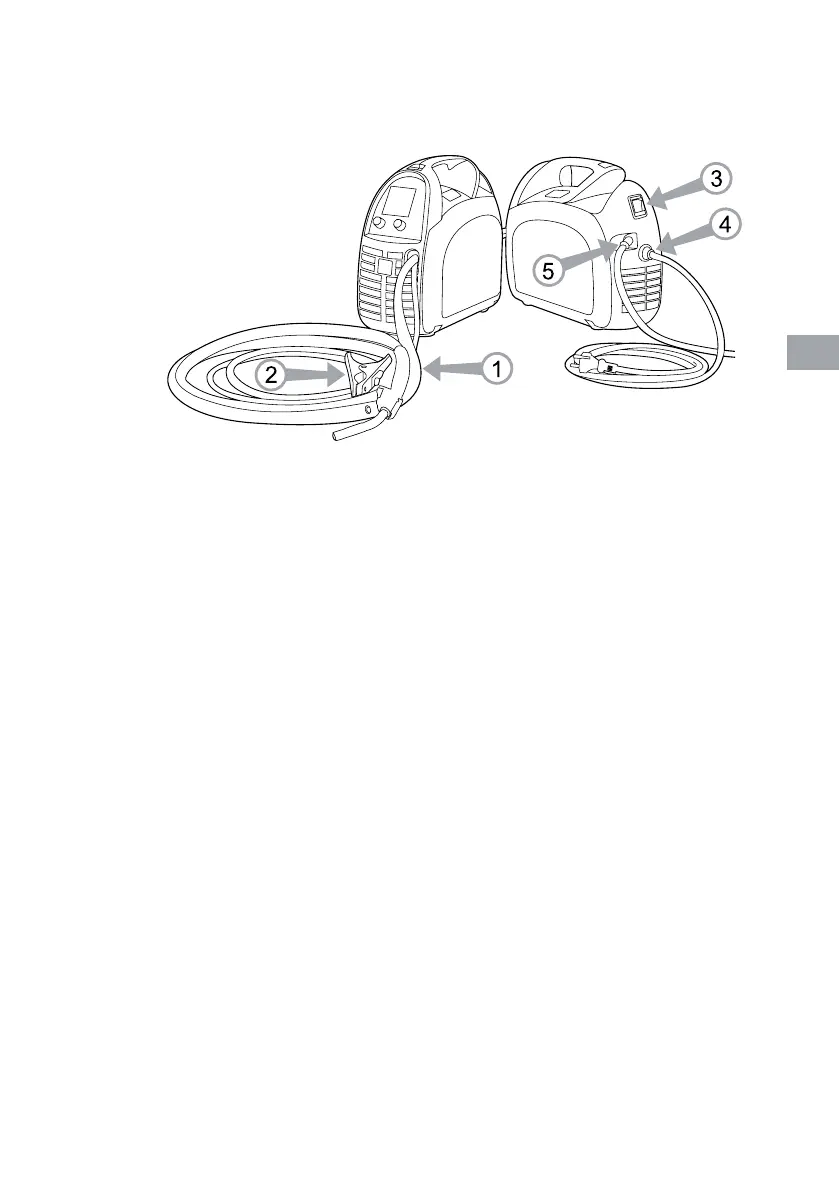

Figure 3.1. General view
1. Welding gun
2. Earthing cable
3. Main switch
4. Supply voltage cable
5. Shielding gas hose connector
3.3. CABLE CONNECTIONS
Connection to the mains
The machine is equipped with a 3.3 m long supply voltage cable and plug.
Connect the supply voltage cable to the mains.
NOTE! The fuse size needed is 16 A delayed.
If you use an extension cord, its cross-sectional area should be at least as large
as the supply voltage cable’s (3 x 2.5 mm²). The maximum length for the
extension cord is 50 m.
The machine can also be used with a generator. The minimum power for the
generator is 4.2 kVA, and the recommended power 8.0 kVA in order for the
machine to be used at maximum capacity.
Earthing
The earthing cable is already connected to the machine. Clean the workpiece
surface and x the earthing cable clamp to the piece in order to create a closed
and interference-free circuit needed for welding.
