Man-1112 Sigma XT+_23 Page 46 of 52

23. CE Mark

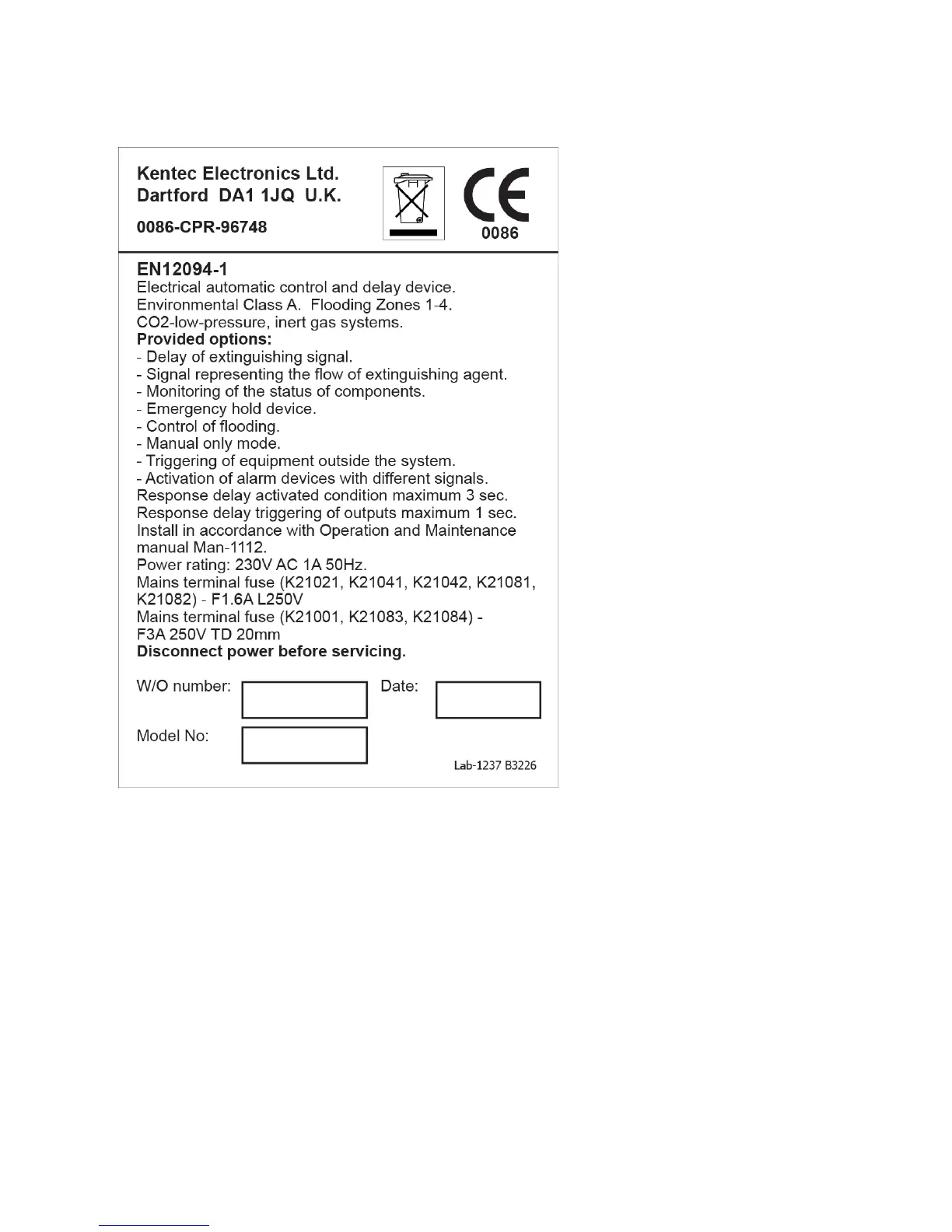

All control panels have a label affixed to the inside of the lid as shown below.

This label should not be removed under any circumstances.
