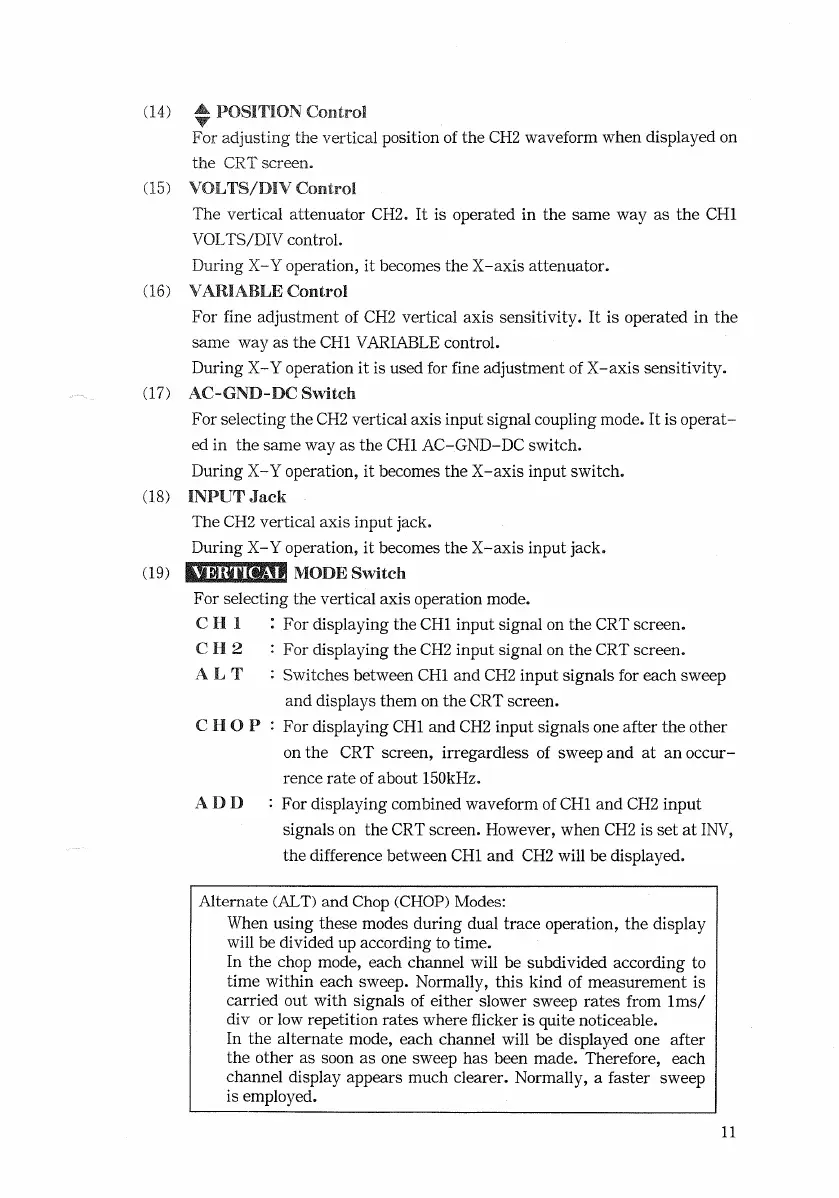

(14)

POSITION Control

For

adjusting the

vertical

position of the CH2 waveform when displayed on

the

CRT

screen.

(15) VOLTS/DIV

Control

The

vertical

attenuator

CH2. It is operated in the same way as the CHI

VOLTS/DIV

control.

During

X-Y

operation, it becomes the

X-axis

attenuator.

(16)

VARIABLE

Control

For

fine adjustment of CH2

vertical

axis

sensitivity. It is operated in the

same way as the

CHI

VARIABLE

control.

During

X-Y

operation it is used for fine adjustment of

X-axis

sensitivity.

(17) AC-GND-DC

Switch

For

selecting the

CH2

vertical

axis

input signal coupling mode. It is

operat-

ed in the same way as the

CHI AC-GND-DC

switch.

During

X-Y

operation, it becomes the

X-axis

input

switch.

(18)

INPUT

Jack

The

CH2

vertical

axis

input

jack.

During

X-Y

operation, it becomes the

X-axis

input

jack.

(19) PHTHMH MODE

Switch

For

selecting the

vertical

axis

operation mode.

CHI

: For displaying the

CHI

input signal on the

CRT

screen.

H 2 : For displaying the

CII2

input signal on the

CRT

screen.

ALT

: Switches between

CHI

and CH2 input signals for each sweep

and displays them on the

CRT

screen.

CHOP:

For displaying

CHI

and CH2 input signals one after the other

on the CRT screen, irregardless of sweep and at an occur-

rence rate of

about

150kHz.

ADD

: For displaying combined waveform of

CHI

and CH2 input

signals

on the

CRT

screen. However, when CH2 is set at

INV,

the difference between

CHI

and CH2

will

be displayed.

Alternate

(ALT)

and Chop

(CHOP)

Modes:

When

using

these

modes during dual trace operation, the display

will

be divided up according to time.

the chop mode, each channel

will

be subdivided according to

time

within

each sweep. Normally, this

kind

of measurement is

carried

out

with

signals of either slower sweep rates from 1ms/

div

or low repetition rates where

flicker

is quite noticeable.

the alternate mode, each channel

will

be displayed one after

the other as soon as one sweep has been made. Therefore, each

channel display appears much clearer. Normally, a faster sweep

employed.
