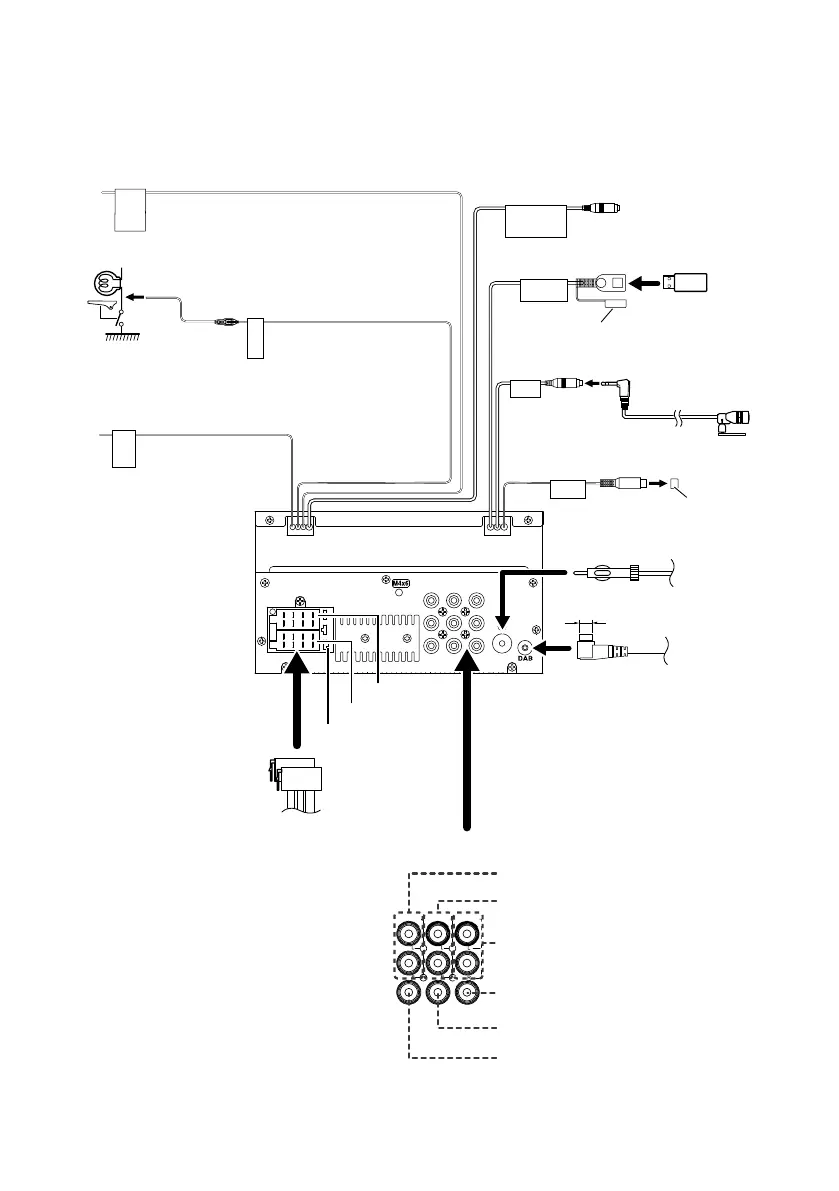

Connection/Installation
50
ANT
CAM IN VIDEO OUT VIDEO IN
AV IN
L
R
FRONT OUTREAR OUT
M4x6
5V
=
1.5A
MIC
SUB
WOOFER
PRK SW
REVERSE
STEERING WHEEL REMOTE INPUT
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
STEERING
REMOTE
INPUT
Connect to the vehicle’s
parking brake detection
switch harness.
For best safety, be sure to
connect the parking sensor.
Light Green (Parking sensor wire)
Accessory 4:Parking Extention cable
Purple/White (Reverse sensor wire)
Accessory 1
Bluetooth
Microphone
To steering remote
To use the steering wheel remote control
feature, you need an exclusive remote
adapter (not supplied) matched to your car.
Connect to vehicle’s
reverse lamp harness
when using the
optional rear view
camera.
Light Blue/Yellow (Steering remote control wire)
Connect to vehicle’s steering remote
harness.
Contact your KENWOOD dealer for details.
Fuse (15A)
Ñ Connecting wires to terminals
Subwoofer Preout
Cap
Cap
FM/AM antenna
Φ 6.5 mm (maximum)
DAB antenna CX-DAB1
[3]
DMX7018DABS only.
! CAUTION
Use of a CX-DAB1 (optional accessory)
as a DAB antenna is recommended.
When using a commercially available
DAB antenna, the diameter of the SMB
connector must be Φ6.5 mm or less.
Connector A
Connector B
USB device
[2]
USB terminal
[1]
(1 m)
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
ISO Connector
FRONTOUTREAROUT
VIDEOOUT VIDEOINCAMIN
AVIN
Rear Audio Preout
(Left; White, Right; Red)
AV-IN audio input
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Visual Output (Yellow)
Rear view camera input (Yellow)
AV-IN visual input (Yellow)
