Connection/Installation
51English
ANT
CAM IN
VIDEO OUT VIDEO IN
AV IN
L
R
FRONT OUTREAR OUT
M4x6
5V
=
1.5A
KCA-iP103 (0.8m)
[3]
Micro USB to USB
cable
[2]
iPod/iPhone
[2]
Lightning connector
Android smartphone
[2]
[1]
iPod/iPhone maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory

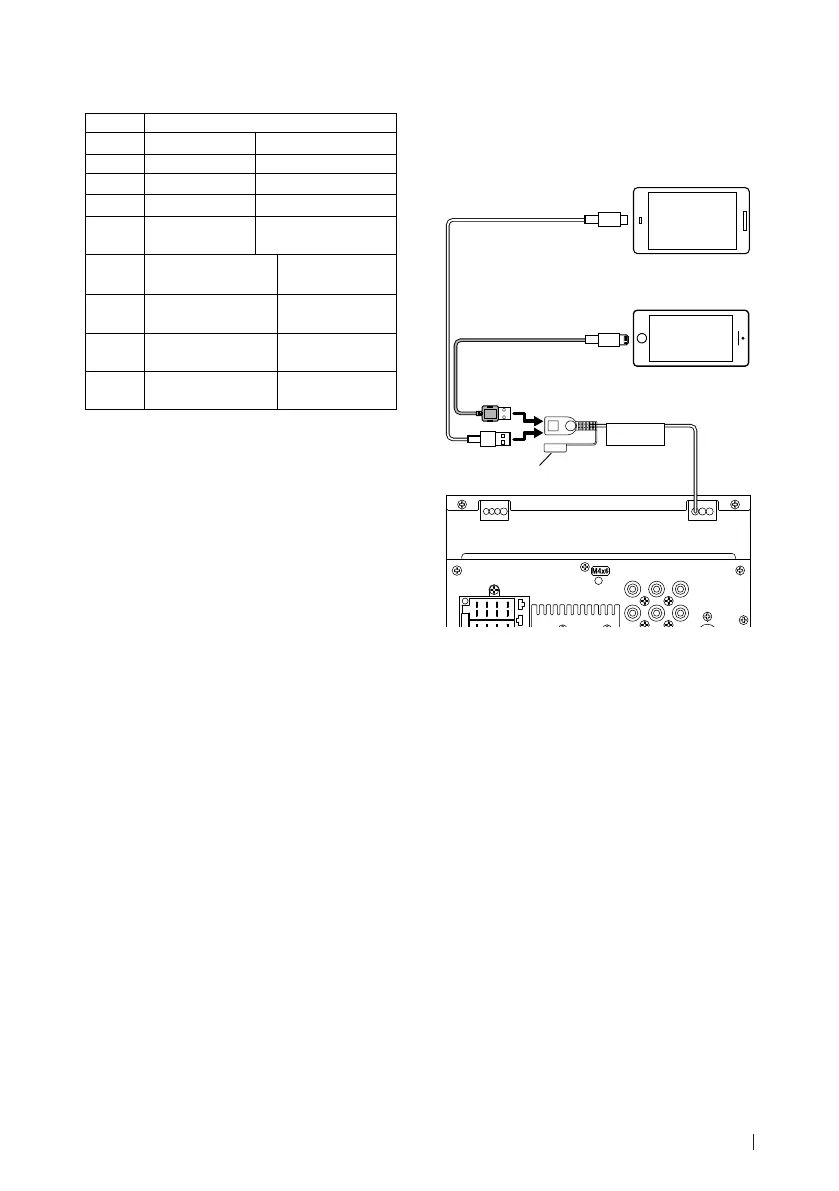

Ñ Connecting an iPod/iPhone/
Android
Cap
USB terminal
[1]
(0.8 m)
Ñ ISO Connector function guide
Pin Color and function
A-4 Yellow Battery
A-5 Blue/White
[1]
Power Control
A-6 Orange/White Illumination
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground)
Connection
B-1/ B-2 Purple (+) /
Purple/Black (–)
Rear Right
B-3/ B-4 Gray (+) /
Gray/Black (–)
Front Right
B-5/ B-6 White (+) /
White/Black (–)
Front Left
B-7/ B-8 Green (+) /
Green/Black (–)
Rear Left
[1]
Max. 300mA, 12V
• Speaker Impedance: 4-8 Ω
! CAUTION
Before you connect the commercially
available ISO connectors to the unit, check the
following condition:
• Make sure that the pin assignment of the
connector matches with the KENWOOD unit.
• Take extra notice of the power wire.
• In case battery wire and ignition wire are not
corresponding then change them accordingly.
• In case the car does not have an ignition wire,
use a commercially available interface.
!B5A-2247-10_DMX_E_EnFr.indb 51 2018/06/11 16:16
