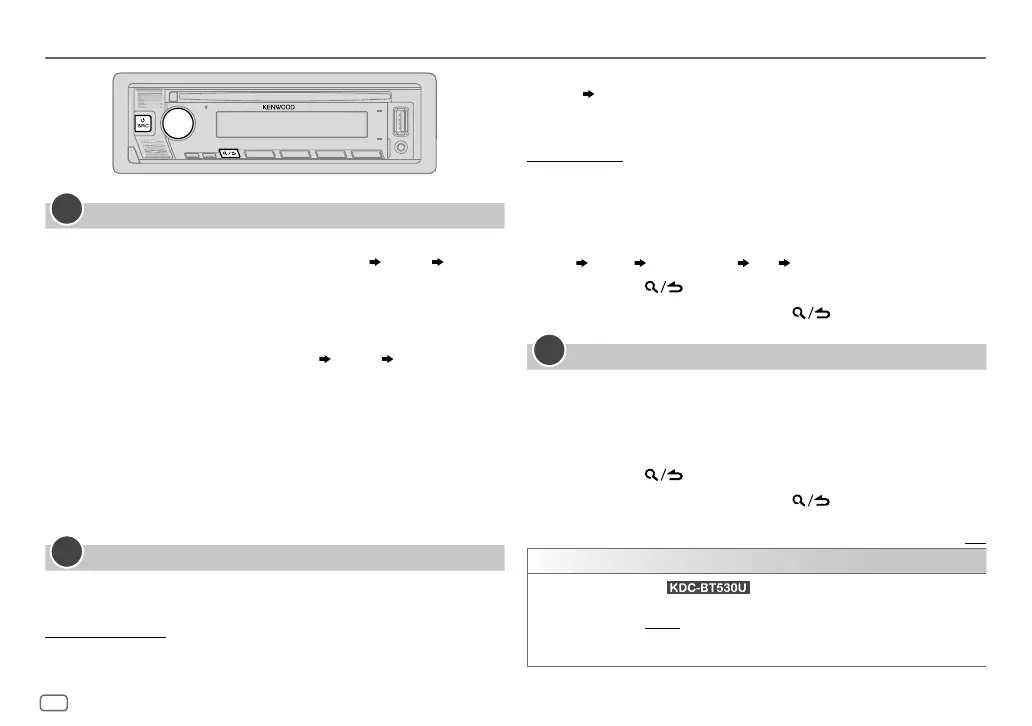

Kenwood KDC-BT530U User Manual

4
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
GETTING STARTED
Select the display language and cancel the demonstration
When you turn on the power for the first time (or [FACTORY RESET] is set to
[YES] , see page 5), the display shows: “SEL LANGUAGE” “PRESS”
“VOLUME KNOB”
1 Turn the volume knob to select [ENG] (English) or [TUR] (Turkish), then
press the knob.
[ENG] is selected for the initial setup.
Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”.
2 Press the volume knob again.
[YES] is selected for the initial setup.
3 Press the volume knob again.
“DEMO OFF” appears.
Then, the display shows the selected crossover type: “2-WAY X ’ OVER” or
“3-WAY X ’ OVER”
• To change the crossover type, see “Change the crossover type” on
page 5.
Set the clock and date
1
Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select [CLOCK] , then press the knob.
To adjust the clock
3 Turn the volume knob to select [CLOCKADJUST] , then press the knob.
1
2
4 Turn the volume knob to make the settings, then press the knob.
Hour Minute
5 Turn the volume knob to select [CLOCK FORMAT] , then press the knob.
6 Turn the volume knob to select [12H] or [24H] , then press the knob.
To set the date
7 Turn the volume knob to select [DATEFORMAT] , then press the knob.
8 Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY] , then press
the knob.
9 Turn the volume knob to select [DATESET] , then press the knob.
10 Turn the volume knob to make the settings, then press the knob.
Day Month Year or Month Day Year
11 Press and hold to exit.
To return to the previous setting item, press
.
Set the initial settings
1
Press B SRC repeatedly to enter STANDBY.
2 Press the volume knob to enter [FUNCTION] .
3 Turn the volume knob to select an item (see the following table), then
press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exit.
To return to the previous setting item, press
.
Default: [XX]
[AUDIO CONTROL]
[SWITCH PREOUT]
(For : Applicable only if [X’OVER] is set to [2WAY].)
(Page 5)
[REAR]/[SUB-W]: Selects whether rear speakers or a subwoofer are
connected to the line out terminals on the rear (through an external
amplifier). (Page 33)
3
JS_KWD_KDC_BT630U_MN_EN_3rd draft.indd 4JS_KWD_KDC_BT630U_MN_EN_3rd draft.indd 4 7/11/2018 8:57:29 AM7/11/2018 8:57:29 AM

Kenwood KDC-BT530U Specifications

General

USB port	Yes
USB version	2.0
Bluetooth range	10 m
Bluetooth version	3.0+HS
USB port position	Front
Bluetooth profiles	A2DP, HFP
USB ports quantity	1
Bluetooth functions	Audiostreaming, Handsfree calling
Headphone connectivity	3.5mm
DIN size	1 DIN
Clock mode	24h
Output power	88 W
RDS features	AF, EON, PTY, TP
Product color	Black
Frequency range	20 - 20000 Hz
Disc types supported	CD, CD-R, CD-ROM, CD-RW
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Signal-to-Noise Ratio (SNR)	97 dB
Mobile operating systems supported	Android, iOS
Display type	LCD
Display digits	13 digits
Illumination color	Multi
Display number of lines	1.5 lines
Number of OSD languages	4
On Screen Display (OSD) languages	ENG, ESP, FRE, RUS
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, FM, LW, MW
Preset stations quantity	24
USB direct playback	-
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	155.5 mm
Width	182 mm
Height	53 mm
Weight	1200 g
