RXD-M32
3

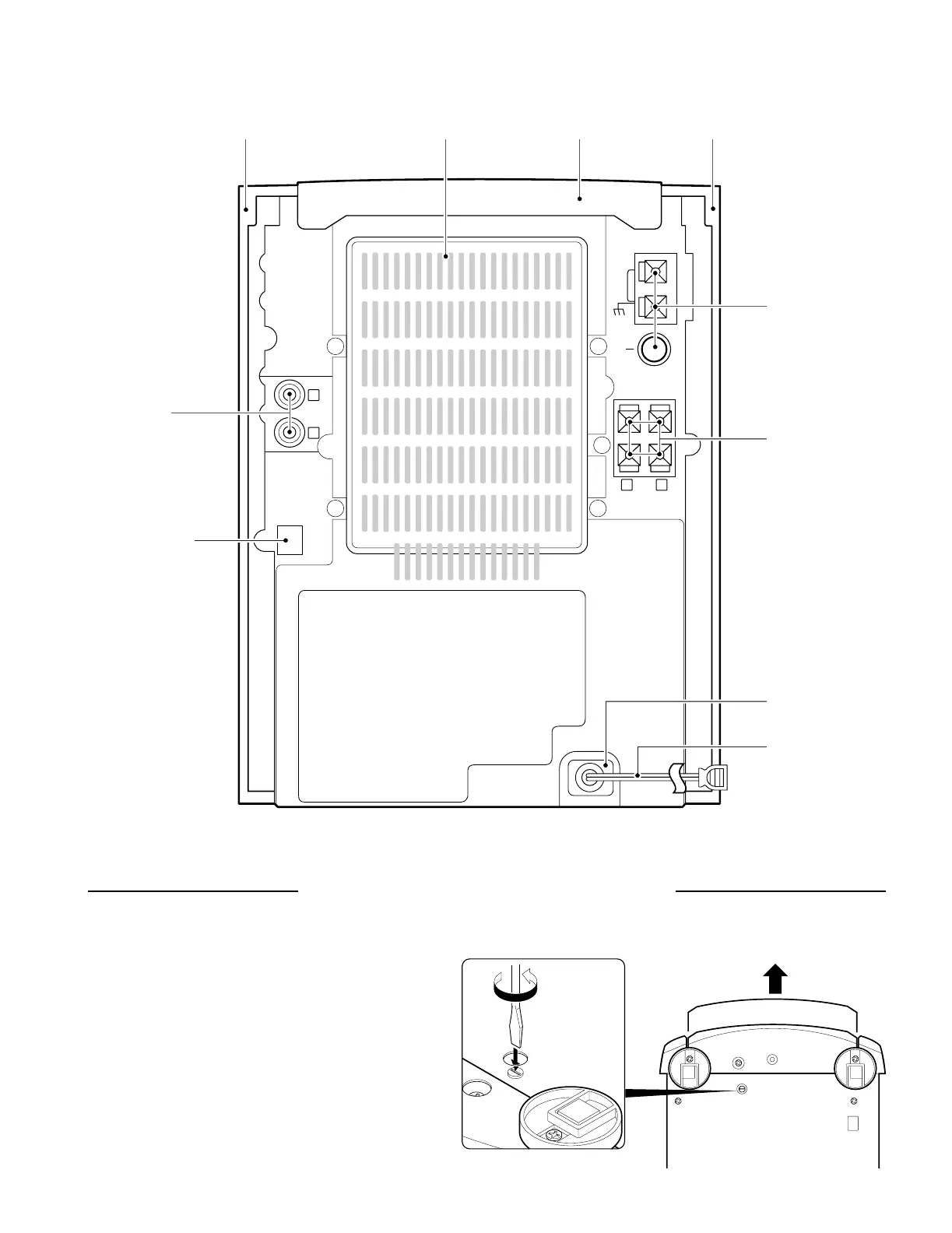

EXTERNAL VIEW
L
R
AUX
IN
SPEAKERS(6–16Ω)
GND
AM
ANTENNA
FM
75Ω
+
-
LR
OPTICAL
OUT
Lock terminal board
(E70-0052-05) or
(E20-0321-05)
Cover *
(F07-)
Top plate
(A52-0387-08)
Pin jack
(E63-0095-05)
Oscillating module
(W02-1114-05)
Side plate R *
(A50-)
Side plate L *
(A50-)
Lock terminal board
(E70-0053-05)
AC power cord bushing
(J42-0083-05)
AC power cord *
(E30-)
* Refer to parts list on page39.
FRONT
CAM
CAM
How to open the tray if not comes out.
(1) From the bottom side of the CD mechanism, use a
screw driver or the like to turn the cam slightly coun-
terclockwise.
(2) Pull out the tray front wards by hand when the tray
comes just out.
DISASSEMBLY FOR REPAIR
