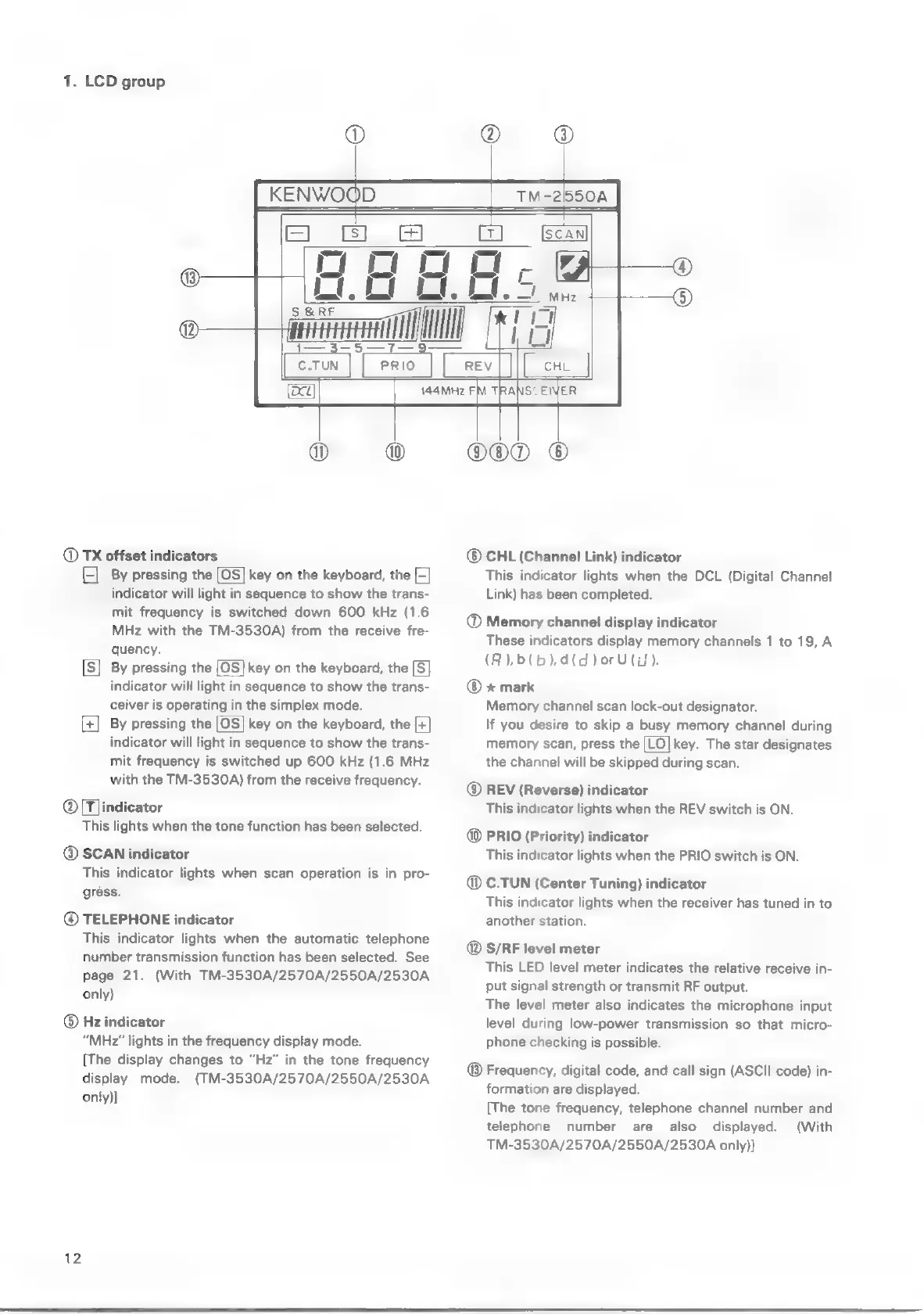

1.
LCD
group
1
<o
|
*
a
|
[Rev
TX
offset
indicators
[=]
By
pressing
the
[OS]
key
on
the
keyboard,
the
[-
indicator
will
light
in
sequence
to
show
the
trans-
mit
frequency
is
switched
down
600
kHz
(1.6
MHz
with
the
TM-3530A)
from
the
receive
fre-
quency.
S]
By
pressing
the
[OS]
key
on
the
keyboard,
the
[S]
indicator
will
light
in
sequence
to
show
the
trans-
ceiver
is
operating
in
the
simplex
mode.
By
pressing
the
[OS]
key
on
the
keyboard,
the
[+
|+
indicator
will
light
in
sequence
to
show
the
trans-
mit
frequency
is
switched
up
600
kHz
(1.6
MHz
with
the
TM-3530A)
from
the
receive
frequency.
@
[Tindicator
This
lights
when
the
tone
function
has
been
selected.
®
SCAN
indicator
This
indicator
lights
when
scan
operation
is in
pro-
gress.
TELEPHONE
indicator
This
indicator
lights
when
the
automatic
telephone
number
transmission
function
has
been
selected.
See
page
21.
(With
TM-3530A/2570A/2550A/2530A
only)
®
Hz
indicator
“MHz”
lights
in
the
frequency
display
mode.
[The
display
changes
to
“Hz”
in
the
tone
frequency
display
mode.
(TM-3530A/2570A/2550A/2530A
only)]
12
CHL
(Channel
Link)
indicator
This
indicator
lights
when
the
DCL
(Digital
Channel
Link)
has
been
completed.
Memory
channel
display
indicator
These
indicators
display
memory
channels
1
to
19,
A
(FA).b(b),d(d)orU
(iJ).
®
*
mark
Memory
channel
scan
lock-out
designator.
If
you
desire
to
skip
a
busy
memory
channel
during
memory
scan,
press
the
|LO|key.
The
star
designates
the
channel
will
be
skipped
during
scan.
REV
(Reverse)
indicator
This
indicator
lights
when
the
REV
switch
is
ON.
@
PRIO
(Priority)
indicator
This
indicator
lights
when
the
PRIO
switch
is
ON.
@
C.TUN
(Center
Tuning)
indicator
This
indicator
lights
when
the
receiver
has
tuned
in
to
another
station.
S/RF
level
meter
This
LED
level
meter
indicates
the
relative
receive
in-
put
signal
strength
or
transmit
RF
output.
The
level
meter
also
indicates
the
microphone
input
level
during
low-power
transmission
so
that
micro-
phone
checking
is
possible.
®
Frequency,
digital
code,
and
call
sign
(ASCII
code)
in-
formation
are
displayed.
[The
tone
frequency,
telephone
channel
number
and
telephone
number
are
also
displayed.
(With
TM-3530A/2570A/2550A/2530A
only)}
