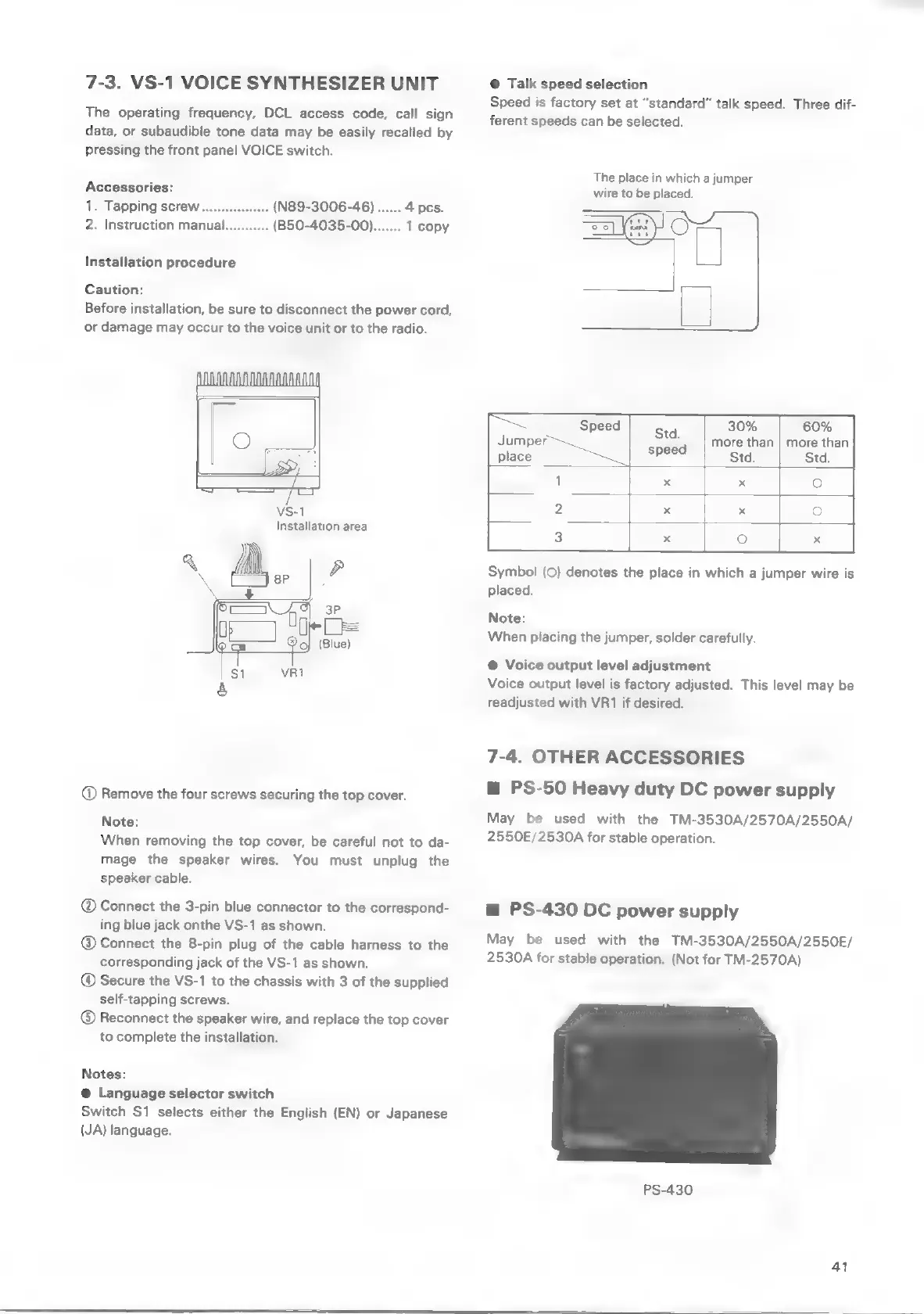

7-3. VS-1 VOICE SYNTHESIZER UNIT
The operating frequency, DCL access code, call sign
data, or subaudible tone data may be easily recalled by
pressing the front panel VOICE switch.
Accessories:
1. Tapping screw.............04 (N89-3006-46) ...... 4 pcs.
2. Instruction manual........... (B50-4035-00)....... 1 copy
Installation procedure
Caution:
Before installation, be sure to disconnect the power cord,
or damage may occur to the voice unit or to the radio.
VS-1
Installation area
@ Remove the four screws securing the top cover.
Note:
When removing the top cover, be careful not to da-
mage the speaker wires. You must unplug the
speaker cable.
@ Connect the 3-pin blue connector to the correspond-
ing blue jack onthe VS-1 as shown.
@® Connect the 8-pin plug of the cable harness to the
corresponding jack of the VS-1 as shown.
@ Secure the VS-1 to the chassis with 3 of the supplied
self-tapping screws.
@® Reconnect the speaker wire, and replace the top cover
to complete the installation.
Notes:
@ Language selector switch
Switch S1 selects either the English (EN) or Japanese
(JA) language.
@ Talk speed selection
Speed
is
factory
set
at
“standard”
talk
speed.
Three
dif-
ferent speeds can be selected.
The place in which a jumper
wire to be placed.
Symbol! (©) denotes the place in which a jumper wire is
placed.
Note:
When placing the jumper, solder carefully.
@ Voice output level adjustment
Voice output level is factory adjusted. This level may be
readjusted with VR1 if desired.
7-4. OTHER ACCESSORIES
m@ PS-50 Heavy duty DC power supply
May
be
used
with
the
TM-3530A/2570A/2550A/
2550E/2530A
for
stable
operation.
@ PS-430 DC power supply
May
be
used
with
the
TM-3530A/2550A/2550E/
2530A
for
stable
operation.
(Not
for
TM-2570A)
PS-430
41
