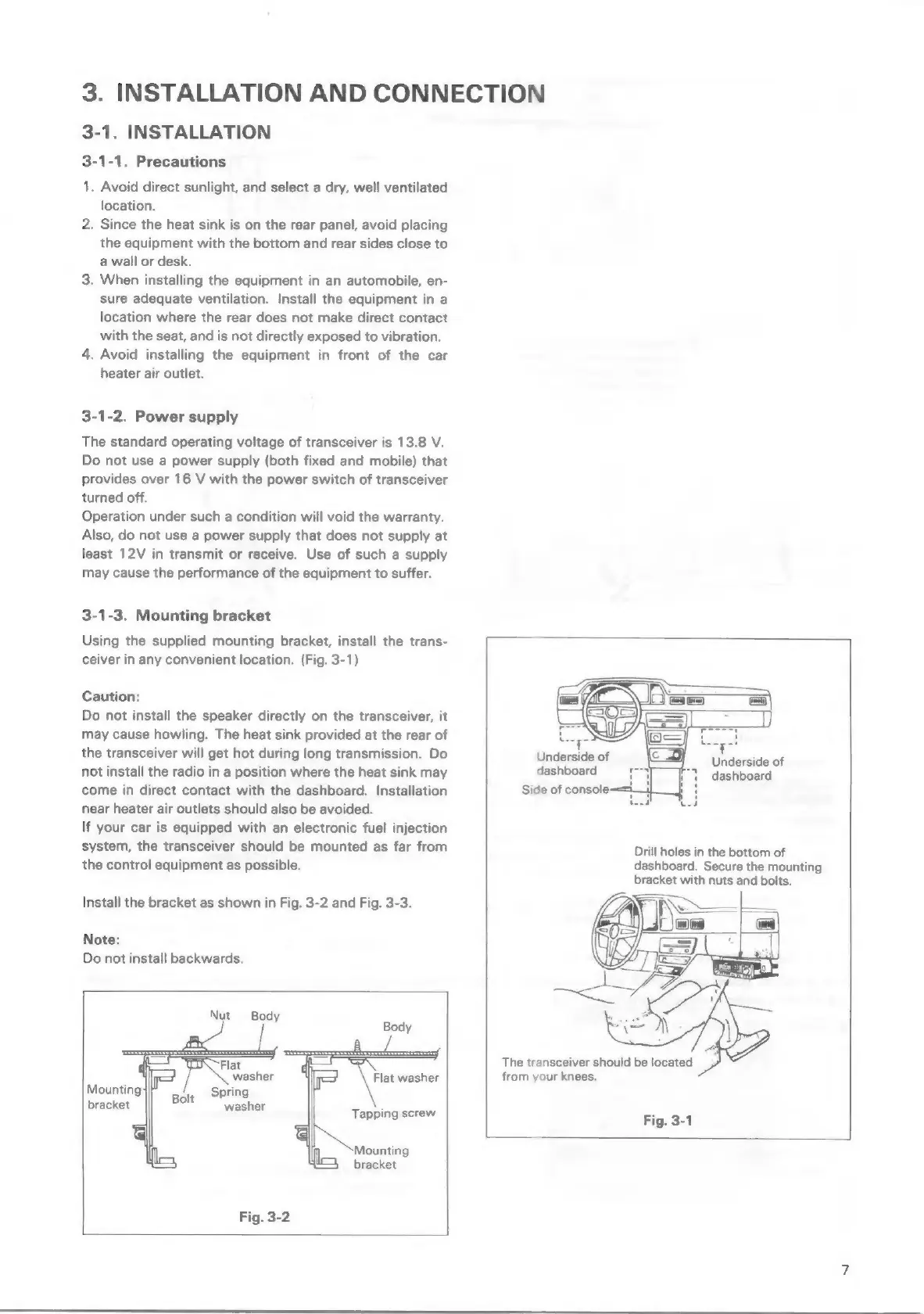

3.
INSTALLATION
AND
CONNECTION
3-1.
INSTALLATION
3-1-1.
Precautions
1.
Avoid
direct
sunlight,
and
select
a
dry,
well
ventilated
location.
2.
Since
the
heat
sink
is
on
the
rear
panel,
avoid
placing
the
equipment
with
the
bottom
and
rear
sides
close
to
a
wall
or
desk.
3.
When
installing
the
equipment
in
an
automobile,
en-
sure
adequate
ventilation.
Install
the
equipment
in
a
location
where
the
rear
does
not
make
direct
contact
with
the
seat,
and
is
not
directly
exposed
to
vibration.
4.
Avoid
installing
the
equipment
in
front
of
the
car
heater
air
outlet.
3-1-2.
Power
supply
The
standard
operating
voltage
of
transceiver
is
13.8
V.
Do
not
use
a
power
supply
(both
fixed
and
mobile)
that
provides
over
16
V
with
the
power
switch
of
transceiver
turned
off.
Operation
under
such
a
condition
will
void
the
warranty.
Also,
do
not
use
a
power
supply
that
does
not
supply
at
least
12V
in
transmit
or
receive.
Use
of
such
a
supply
may
cause
the
performance
of
the
equipment
to
suffer.
3-1-3.
Mounting
bracket
Using
the
supplied
mounting
bracket,
install
the
trans-
ceiver
in
any
convenient
location.
(Fig.
3-1)
Caution:
Do
not
install
the
speaker
directly
on
the
transceiver,
it
may
cause
howling.
The
heat
sink
provided
at
the
rear
of
the
transceiver
will
get
hot
during
long
transmission.
Do
not
install
the
radio
in
a
position
where
the
heat
sink
may
come
in
direct
contact
with
the
dashboard.
Installation
near
heater
air
outlets
should
also
be
avoided.
If
your
car
is
equipped
with
an
electronic
fuel
injection
system,
the
transceiver
should
be
mounted
as
far
from
the
control
equipment
as
possible.
Install
the
bracket
as
shown
in
Fig.
3-2
and
Fig.
3-3.
Note:
Do
not
install
backwards.
Body
Flat
washer
Mounting
bracket
Spring
Bolt
washer
Tapping
screw
Mounting
bracket
Fig.
3-2
Underside
of
dashboard
Side
of
console
Underside
of
dashboard
Drill
holes
in
the
bottom
of
dashboard.
Secure
the
mounting
bracket
with
nuts
and
bolts.
The
transceiver
should
be
located
from
your
knees.
Fig.
3-1
