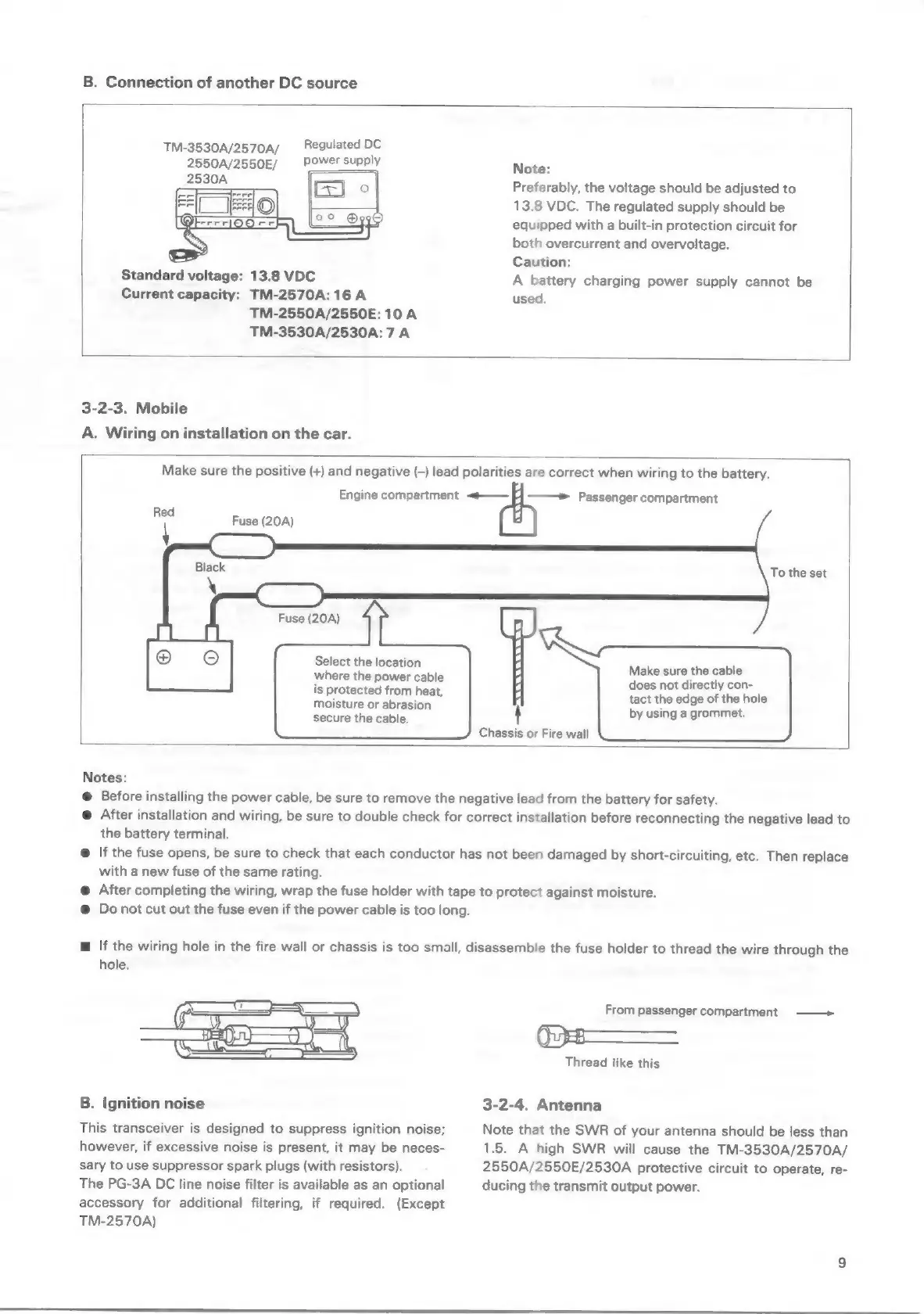

B.
Connection
of
another
DC
source
TM-3530A/2570A/
Regulated
DC
2550A/2550E/
Power
supply
Note:
Preferably,
the
voltage
should
be
adjusted
to
13.8
VDC.
The
regulated
supply
should
be
equipped
with
a
built-in
protection
circuit
for
both
overcurrent
and
overvoltage.
Caution:
Standard
voltage:
13.8
VDC
A
battery
charging
power
supply
cannot
be
Current
capacity:
TM-2570A:16
A
used.
TM-2550A/2550E:
10
A
TM-3530A/2530A:
7
A
3-2-3.
Mobile
A.
Wiring
on
installation
on
the
car.
Make
sure
the
positive
(+)
and
negative
(-)
lead
polarities
are
correct
when
wiring
to
the
battery.
Engine
compartment
“a
———
Passenger
compartment
i
Chassis
or
Fire
wall
Red
Fuse
(20A)
To
the
set
Fuse
(20A)
Select
the
location
where
the
power
cable
is
protected
from
heat,
moisture
or
abrasion
secure
the
cable.
Make
sure
the
cable
does
not
directly
con-
tact
the
edge
of
the
hole
by
using
a
grommet.
Notes:
@
Before
installing
the
power
cable,
be
sure
to
remove
the
negative
lead
from
the
battery
for
safety.
@
After
installation
and
wiring,
be
sure
to
double
check
for
correct
installation
before
reconnecting
the
negative
lead
to
the
battery
terminal.
@
If
the
fuse
opens,
be
sure
to
check
that
each
conductor
has
not
been
damaged
by
short-circuiting,
etc.
Then
replace
with
a
new
fuse
of
the
same
rating.
@
After
completing
the
wiring,
wrap
the
fuse
holder
with
tape
to
protect
against
moisture.
@
Do
not
cut
out
the
fuse
even
if
the
power
cable
is
too
long.
@
If
the
wiring
hole
in
the
fire
wall
or
chassis
is
too
small,
disassemble
the
fuse
holder
to
thread
the
wire
through
the
hole.
From
passenger
compartment
.——»
(3S
=
Thread
like
this
B.
Ignition
noise
3-2-4.
Antenna
This
transceiver
is
designed
to
suppress
ignition
noise;
Note
that
the
SWR
of
your
antenna
should
be
less
than
however,
if
excessive
noise
is
present,
it
may
be
neces-
1.5.
A
high
SWR
will
cause
the
TM-3530A/2570A/
sary
to
use
suppressor
spark
plugs
(with
resistors).
2550A/2550E/2530A
protective
circuit
to
operate,
re-
The
PG-3A
DC
line
noise
filter
is
available
as
an
optional
ducing
the
transmit
output
power.
accessory
for
additional
filtering,
if
required.
(Except
TM-2570A)
