@ Set to key
[FLOCK ‘ON AR MICH
RX
CH 16
CH 18
RX
CH 17
CH19
TX
CH 17
CH 19
TX
CH 16
CH 18
16

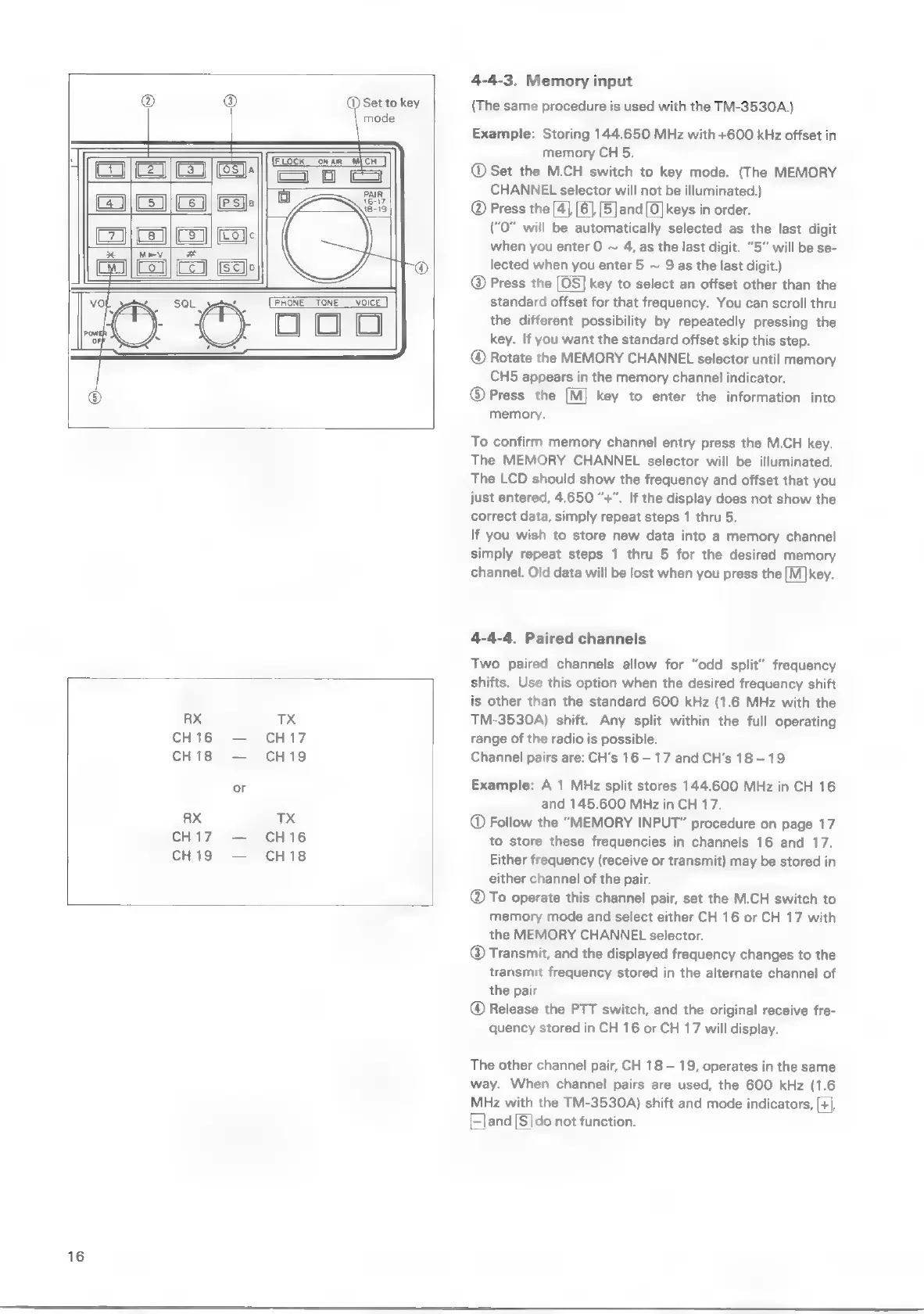

4-4-3. Memory input
(The same procedure is used with the TM-3530A.)
Example: Storing 144.650 MHz with +600 kHz offset in
memory CH 5.
@ Set the M.CH switch to key mode. (The MEMORY
CHANNEL selector will not be illuminated.)
@ Press the [4], [6], [5]and[O] keys in order.
(“O” will be automatically selected as the last digit
when you enter O ~ 4, as the last digit. “5” will be se-
lected when you enter 5 ~ 9 as the last digit.)
@ Press the [OS] key to select an offset other than the
standard offset for that frequency. You can scroll thru
the different possibility by repeatedly pressing the
key. If you want the standard offset skip this step.
@ Rotate the MEMORY CHANNEL selector until memory
CH5 appears in the memory channel indicator.
@® Press the [M key to enter the information into
memory.
To confirm memory channel entry press the M.CH key.
The MEMORY CHANNEL selector will be illuminated.
The LCD should show the frequency and offset that you
just entered, 4.650 “+”. If the display does not show the
correct data, simply repeat steps 1 thru 5.
If you wish to store new data into a memory channel
simply repeat steps 1 thru 5 for the desired memory
channel. Old data will be lost when you press the [M] key.
4-4-4. Paired channels
Two paired channels allow for “odd split” frequency
shifts. Use this option when the desired frequency shift
is other than the standard 600 kHz (1.6 MHz with the
TM-3530A) shift. Any split within the full operating
range of the radio is possible.
Channel pairs are: CH’s 16 - 17 and CH’s 18-19
Example: A 1 MHz split stores 144.600 MHz in CH 16
and 145.600 MHz in CH 17.
@ Follow the “MEMORY INPUT” procedure on page 17
to store these frequencies in channels 16 and 17.
Either frequency (receive or transmit) may be stored in
either channel of the pair.
@® To operate this channel pair, set the M.CH switch to
memory mode and select either CH 16 or CH 17 with
the MEMORY CHANNEL selector.
@® Transmit, and the displayed frequency changes to the
transmit frequency stored in the alternate channel of
the pair
@ Release the PTT switch, and the original receive fre-
quency stored in CH 16 or CH 17 will display.
The other channel pair, CH 18 — 19, operates in the same
way. When channel pairs are used, the 600 kHz (1.6
MHz with the TM-3530A) shift and mode indicators, [+
—]and [S| do not function.
