EO)
© Lift the lever.
(a)
@® The angle of the bracket may
be adjusted to any of 5 possi-
ble viewing angles by loosen-
ing the 4 allen bolts at the
top of the bracket using the
hex wrench provided.
After the desired angle has
been selected tighten the 4
cure the transceiver.
+— © Carefully slide the transceiver
into the mounting bracket.
® By installing a lock thru the
keyhole on the side of the
mounting bracket, the lever
can be locked and the trans-
ceiver secured.
(b)

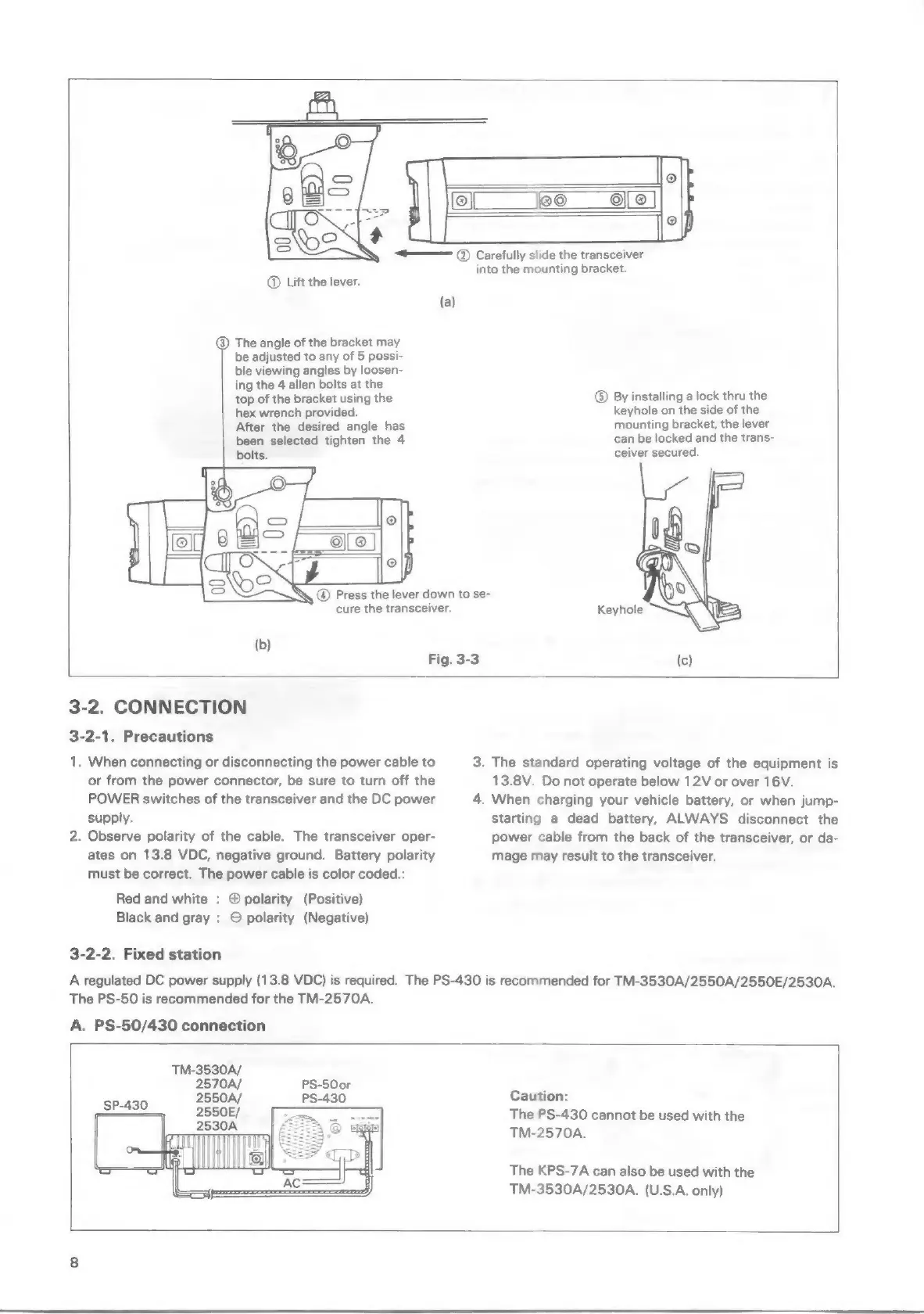

Fig. 3-3
3-2. CONNECTION
3-2-1. Precautions
1. When connecting or disconnecting the power cable to 3.
or from the power connector, be sure to turn off the
POWER switches of the transceiver and the DC power 4.
supply.
2. Observe polarity of the cable. The transceiver oper-
ates on 13.8 VDC, negative ground. Battery polarity
must be correct. The power cable is color coded.:
Red and white : @ polarity (Positive)
Black and gray : © polarity (Negative)
3-2-2. Fixed station
The standard operating voltage of the equipment is
13.8V. Do not operate below 12V or over 16V.
When charging your vehicle battery, or when jump-
starting a dead battery, ALWAYS disconnect the
power cable from the back of the transceiver, or da-
mage may result to the transceiver.
A regulated DC power supply (13.8 VDC) is required. The PS-430 is recommended for TM-3530A/2550A/2550E/2530A.
The PS-50 is recommended for the TM-2570A.
A. PS-50/430 connection
TM-3530A/
2570A/ PS-50or
2550A/ PS-430
SP-430 2550E/ 3
2530A
sae
Caution:
The PS-430 cannot be used with the
TM-2570A.
The KPS-7A can also be used with the
TM-3530A/2530A. (U.S.A. only)
