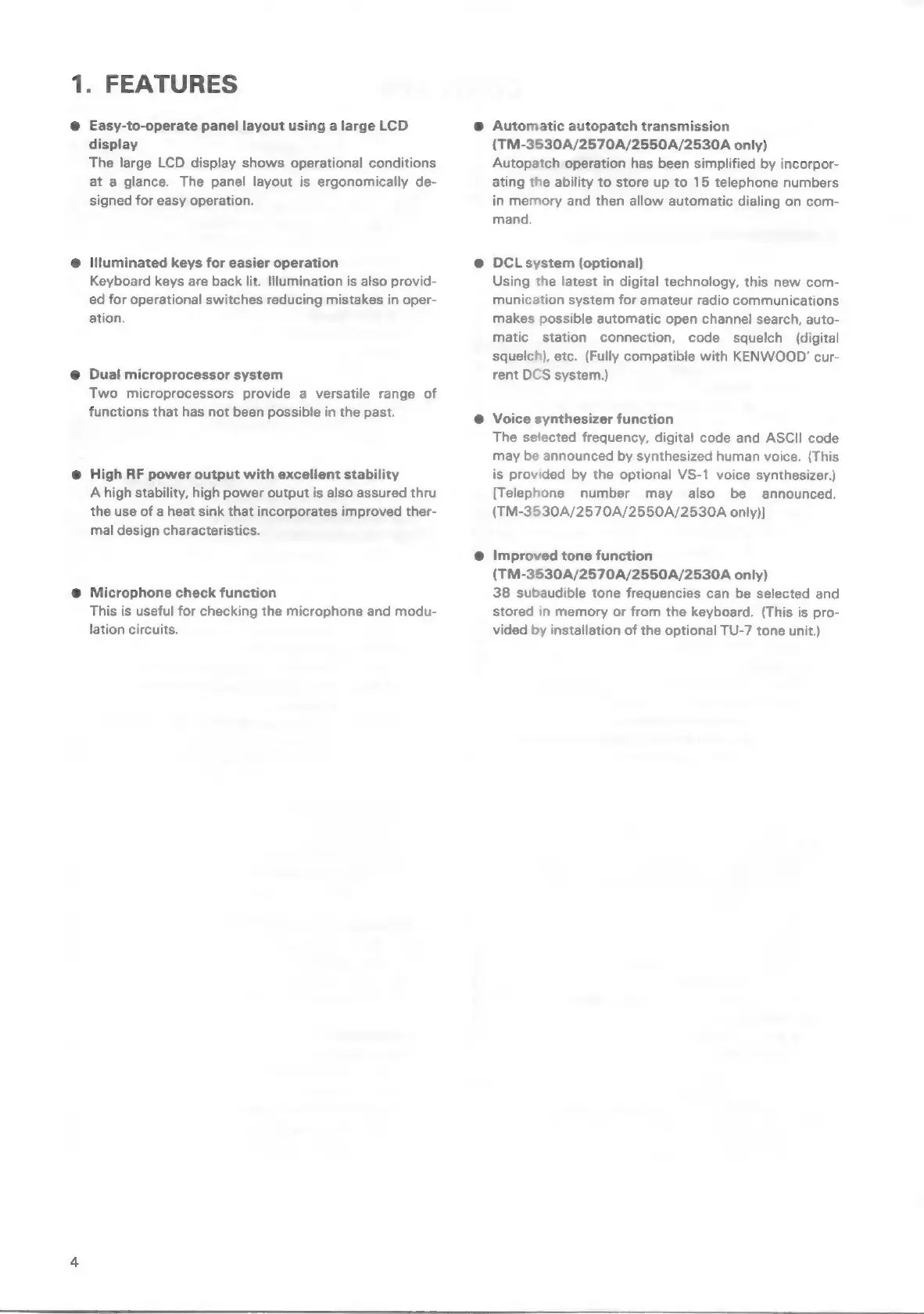

1. FEATURES
Easy-to-operate panel layout using a large LCD
display
The large LCD display shows operational conditions
at a glance. The panel layout is ergonomically de-
signed for easy operation.
Illuminated keys for easier operation
Keyboard keys are back lit. Illumination is also provid-
ed for operational switches reducing mistakes in oper-
ation.
Dual microprocessor system
Two microprocessors provide a versatile range of
functions that has not been possible in the past.
High RF power output with excellent stability
A high stability, high power output is also assured thru
the use of a heat sink that incorporates improved ther-
mal design characteristics.
Microphone check function
This is useful for checking the microphone and modu-
lation circuits.
@ Automatic autopatch transmission
(TM-3530A/2570A/2550A/2530A only)
Autopatch operation has been simplified by incorpor-
ating the ability to store up to 15 telephone numbers
in memory and then allow automatic dialing on com-
mand.
DCL system (optional)
Using the latest in digital technology, this new com-
munication system for amateur radio communications
makes possible automatic open channel search, auto-
matic station connection, code squelch (digital
squelch), etc. (Fully compatible with KENWOOD’ cur-
rent DCS system.)
Voice synthesizer function
The selected frequency, digital code and ASCII code
may be announced by synthesized human voice. (This
is provided by the optional VS-1 voice synthesizer.)
[Telephone number may also be announced.
(TM-3530A/2570A/2550A/2530A only)]
Improved tone function
(TM-3530A/2570A/2550A/2530A only)
38 subaudible tone frequencies can be selected and
stored in memory or from the keyboard. (This is pro-
vided by installation of the optional TU-7 tone unit.)
