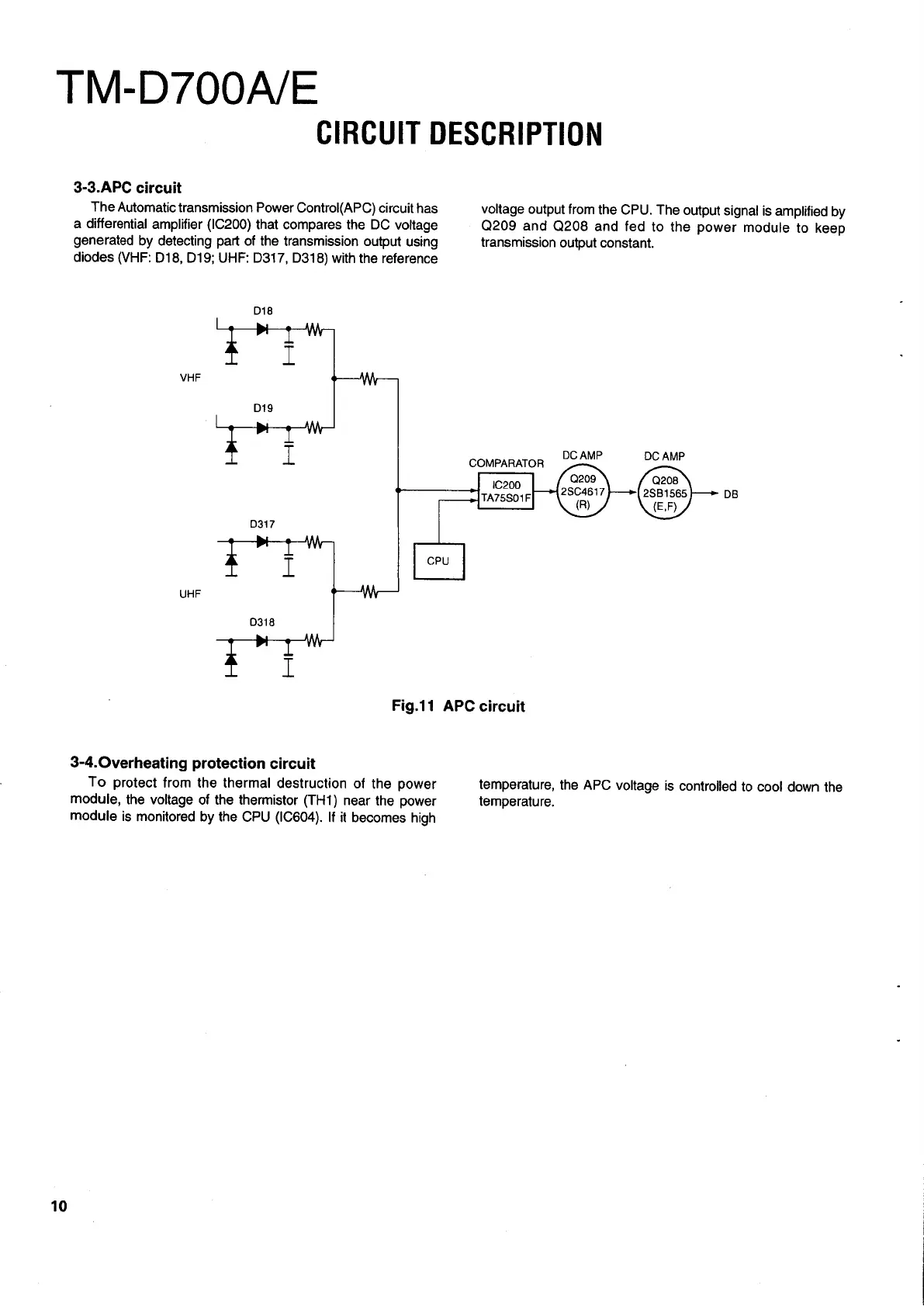

TM-D700A/E
CIRCUIT
DESCRIPTION
10
3-3.APC
circuit
The
Automatic
transmission
Power
Control(APC)
circuit
has
a
differential
amplifier
(\C200)
that
compares
the
DC
voltage
generated
by
detecting
part
of
the
transmission
output
using
diodes
(VHF:
D18,
D19;
UHF:
D317,
D318)
with
the
reference
D18
:
voltage
output
from
the
CPU.
The
output
signal
is
amplified
by
Q209
and
Q208
and
fed
to
the
power
module
to
keep
transmission
output
constant.
VHF
AW
D19
k
DC
AMP
I
comparator
PCA
DC
AMP
1C200
2Se4617
TA75S01F
(R)
D317
k
t
CPU
UHF
AM,
0318
:
Fig.11
APC
circuit
3-4.Overheating
protection
circuit
To
protect
from
the
thermal
destruction
of
the
power
module,
the
voltage
of
the
thermistor
(TH1)
near
the
power
module
is
monitored
by
the
CPU
(IC604).
If
it
becomes
high
temperature,
the
APC
voltage
is
controlled
to
cool
down
the
temperature.
