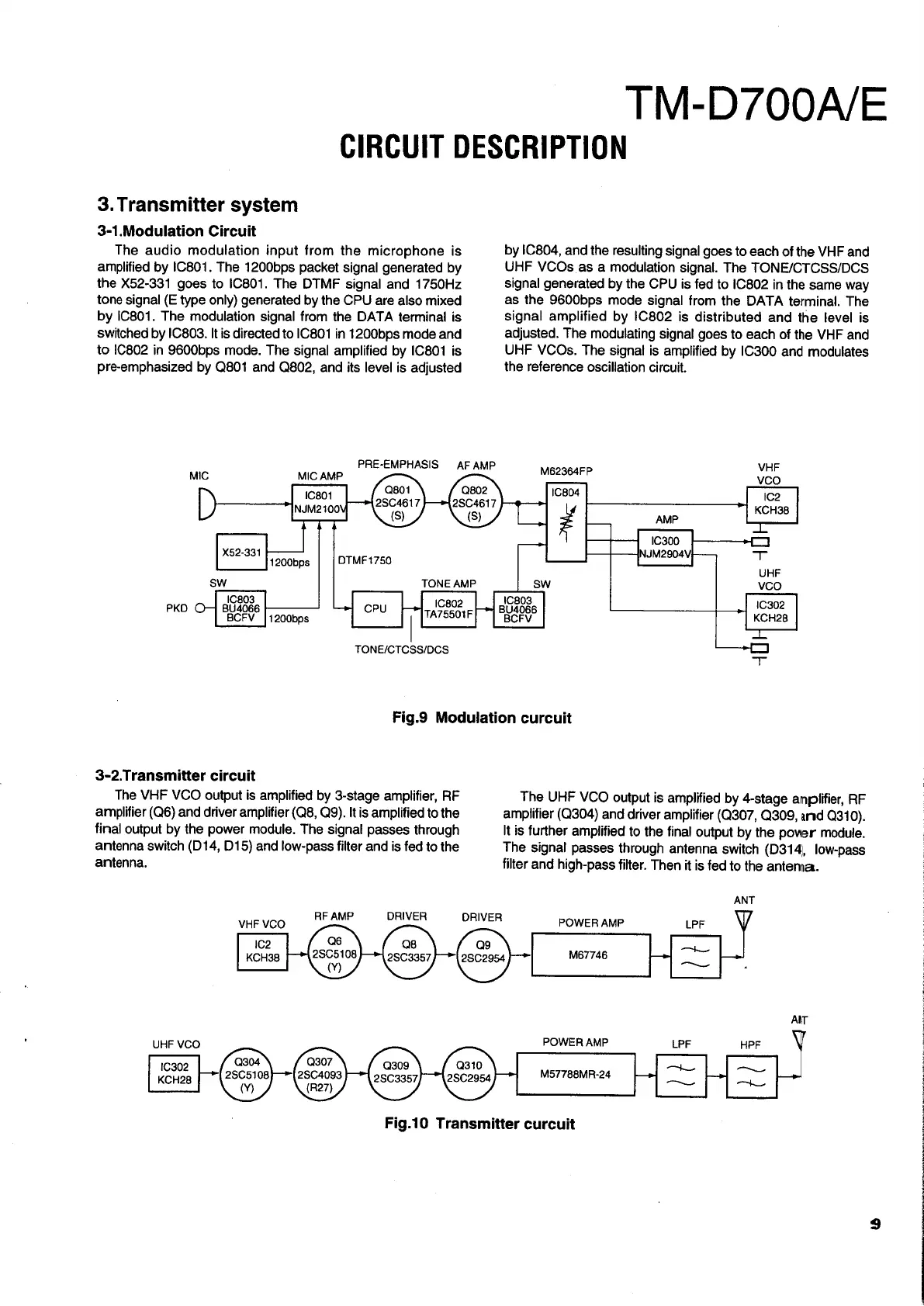

TM-D700A/E
CIRCUIT
DESCRIPTION
3.
Transmitter
system
3-1.Modulation
Circuit
The
audio
modulation
input
from
the
microphone
is
amplified
by
|1C801.
The
1200bps
packet
signal
generated
by
the
X52-331
goes
to
iIC801.
The
DTMF
signal
and
1750Hz
tone
signal
(E
type
only)
generated
by
the
CPU
are
also
mixed
by
IC801.
The
modulation
signal
from
the
DATA
terminal
is
switched
by
IC803.
It
is
directed
to
C801
in
1200bps
mode
and
to
1C802
in
9600bps
mode.
The
signal
amplified
by
IC801
is
pre-emphasized
by
Q801
and
Q802,
and
its
level
is
adjusted
PRE-EMPHASIS
AF
AMP
MIC
AMP
C801
NJM2100V4
MIC
[}———
X§2-331
1200bps
DTMF
1750
TONE
AMP
by
IC804,
and
the
resulting
signal
goes
to
each
of
the
VHF
and
UHF
VCOs
as
a
modulation
signal.
The
TONE/CTCSS/DCS
signal
generated
by
the
CPU
is
fed
to
IC802
in
the
same
way
as
the
9600bps
mode
signal
from
the
DATA
terminal.
The
signal
amplified
by
C802
is
distributed
and
the
level
is
adjusted.
The
modulating
signal
goes
to
each
of
the
VHF
and
UHF
VCOs.
The
signal
is
amplified
by
IC300
and
modulates
the
reference
oscillation
circuit.
M62364FP
IC804
AMP
IC300
YUM2904V;
sw
IC802
CPU
TA75501F
Ba
PKD
OF
B
1200bps
IC803
BU4066
BCFV
TONE/CTCSS/DCS
Fig.9
Modulation
curcuit
3-2.Transmitter
circuit
The
VHF
VCO
output
is
amplified
by
3-stage
amplifier,
RF
amplifier
(Q6)
and
driver
amplifier
(Q8,
QQ).
It
is
amplified
to
the
final
output
by
the
power
module.
The
signal
passes
through
antenna
switch
(D14,
D15)
and
low-pass
filter
and
is
fed
to
the
antenna.
The
UHF
VCO
output
is
amplified
by
4-stage
amplifier,
RF
amplifier
(Q304)
and
driver
amplifier
(Q307,
Q309,
and
Q310).
It
is
further
amplified
to
the
final
output
by
the
power
module.
The
signal
passes
through
antenna
switch
(D314),
low-pass
filter
and
high-pass
filter.
Then
it
is
fed
to
the
antema.
ANT
VHF
VCO
RF
AMP
DRIVER
DRIVER
POWER
AMP
_
Y
Ic2
as
~Le
KCH38
2802954
M67746
|
;
AIT
UHF
VCO
POWER
AMP
LPF
HPF
IC302
:
i
—~
Fig.10
Transmitter
curcuit
