Kenwood TM-D700A Service Manual

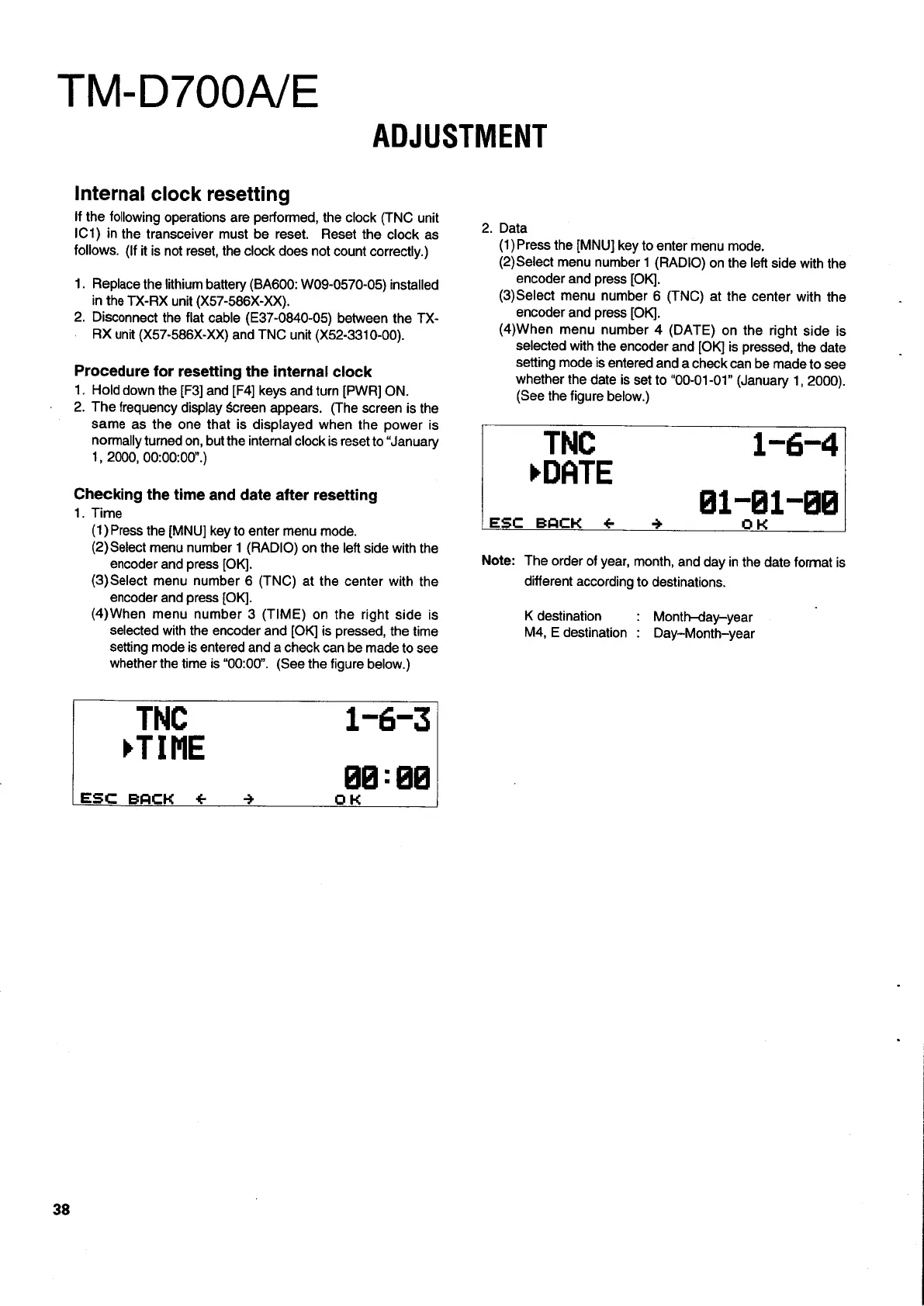

TM-D700A/E
38
ADJUSTMENT
Internal clock resetting
if the following operations are performed, the clock (TNC unit
IC1) in the transceiver must be reset. Reset the clock as
follows. (If it is not reset, the clock does not count correctly.)
1. Replace the fithium battery (BA600: W09-0570-05) installed
in the TX-RX unit (X57-586X-XX).
2. Disconnect the flat cable (E37-0840-05) between the TX-
RX unit (X57-586X-XX) and TNC unit (X52-3310-00).
Procedure for resetting the internal clock
1. Hold down the [F3] and [F4] keys and turn [PWR] ON.
2. The frequency display Screen appears. (The screen is the
same as the one that is displayed when the power is
normally turned on, but the internal clock is reset to “January
1, 2000, 00:00:00”.)
Checking the time and date after resetting
1. Time
(1) Press the [MNU] key to enter menu mode.
(2)Select menu number 1 (RADIO) on the left side with the
encoder and press [OK].
(3)Select menu number 6 (TNC) at the center with the
encoder and press [OK].
(4)When menu number 3 (TIME) on the right side is
selected with the encoder and [OK] is pressed, the time
setting mode is entered and a check can be made to see
whether the time is “00:00”. (See the figure below.)
TNC 1-6-3
>TIME
66:88
ESC BACK +t +
2. Data
(1)Press the [MNU] key to enter menu mode.
(2)Select menu number 1 (RADIO) on the left side with the
encoder and press [OK].
(3)Select menu number 6 (TNC) at the center with the
encoder and press [OK].
(4)When menu number 4 (DATE) on the right side is
selected with the encoder and [OK] is pressed, the date
setting mode is entered and a check can be made to see
whether the date is set to “00-01-01” (January 1, 2000).
(See the figure below.)
TNC
>DATE
ESC BACK ¢€ >
1-6-4
61-41-86
Note: The order of year, month, and day in the date format is
different according to destinations.
K destination
M4, E destination :
Month-day-year
Day~Month-year
