Kenwood TM-D700A Service Manual

TM-D700A/E

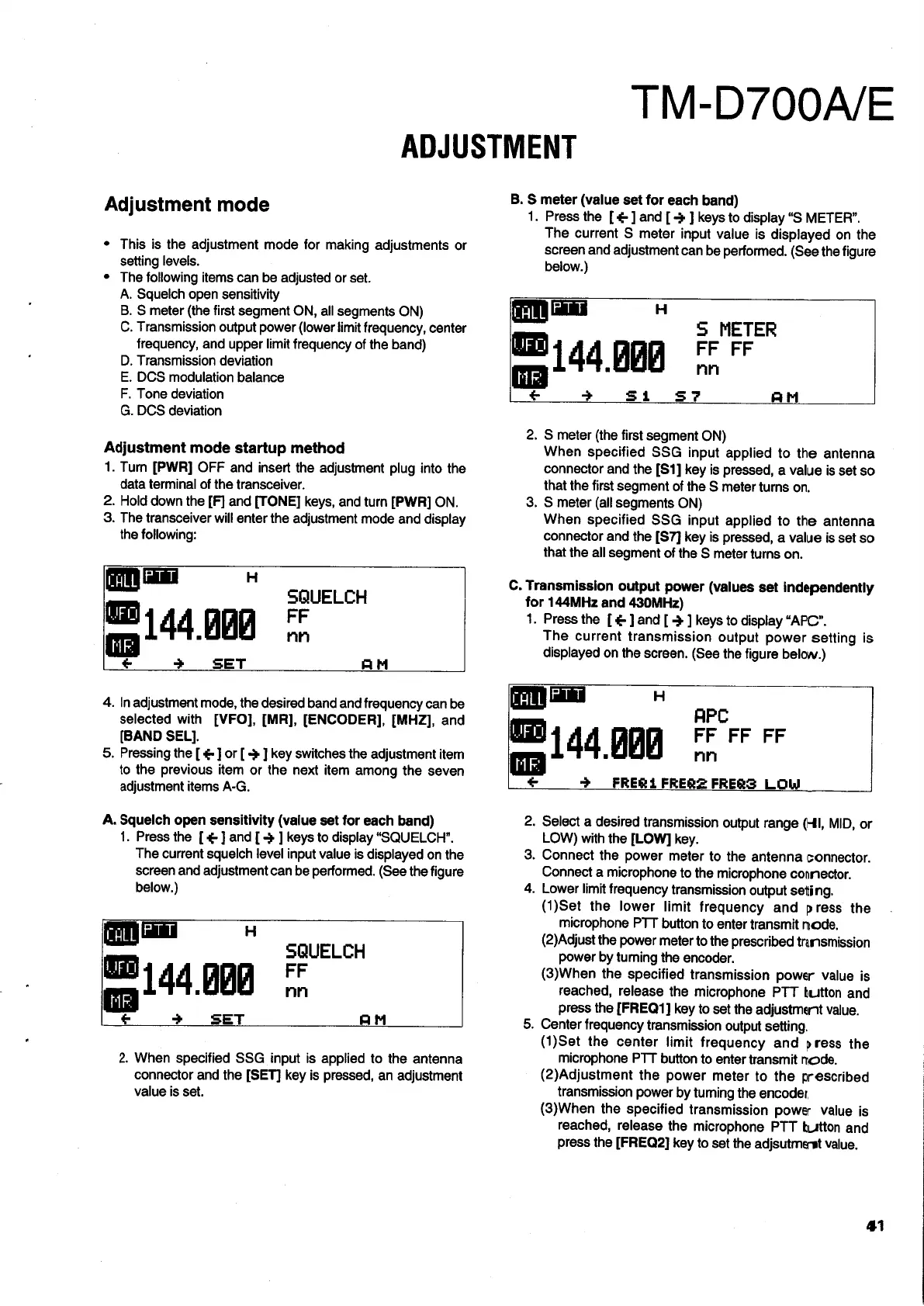

ADJUSTMENT
Adjustment mode
* This is the adjustment mode for making adjustments or
setting levels.
* The following items can be adjusted or set.
A. Squelch open sensitivity
B. S meter (the first segment ON, all segments ON)
C. Transmission output power (lower limit frequency, center
frequency, and upper limit frequency of the band)
D. Transmission deviation
E. DCS modulation balance
F. Tone deviation
G. DCS deviation
Adjustment mode startup method
1. Turn [PWR] OFF and insert the adjustment plug into the
data terminal of the transceiver.
2. Hold down the [F] and [TONE] keys, and turn [PWR] ON.
3. The transceiver will enter the adjustment mode and display
the following:
H
SQUELCH
ne 144.000 FF
€ + SET
AM
4. In adjustment mode, the desired band and frequency can be
selected with [VFO], [MR], [ENCODER], [MHZ], and
(BAND SEL].
5. Pressing the [ € ] or [ + ] key switches the adjustment item
to the previous item or the next item among the seven
adjustment items A-G.
A. Squelch open sensitivity (value set for each band)
1. Press the [€] and [ + ] keys to display “SQUELCH’.
The current squelch level input value is displayed on the
screen and adjustment can be performed. (See the figure
below.)
A
SQUELCH
mm 144.000 =
€ > SET
AM
2. When specified SSG input is applied to the antenna
connector and the [SET] key is pressed, an adjustment
value is set.
B. S meter (value set for each band)
1. Press the [€] and [ + ] keys to display “S METER”.
The current S meter input value is displayed on the
screen and adjustment can be performed. (See the figure
below.)
H
FIFIF FF FF
44008
© 3% sia 5s? AM
2. S meter (the first segment ON)
When specified SSG input applied to the antenna
connector and the [S1] key is pressed, a value is set so
that the first segment of the S meter turns on.
3. S meter (all segments ON)
When specified SSG input applied to the antenna
connector and the [S7] key is pressed, a value is set so
that the all segment of the S meter turns on.
C. Transmission output power (values set independently
for 144MHz and 430MHz)
1. Press the [€] and [ +] keys to display “APC”.
The current transmission output power setting is
displayed on the screen. (See the figure below.)
ALOT H
as 4d PF FF FF
= : nn
FRER1 FRE@2 FRE@S LOW
2.
Select
a
desired
transmission
output
range
HI,
MID,
or
LOW) with the [LOW] key.
3.
Connect
the
power
meter
to
the
antenna
connector.
Connect a microphone to the microphone connector.
4. Lower limit frequency transmission output setiing.
(1)Set the lower limit frequency and press the
microphone PTT button to enter transmit node.
(2)Adjust the power meter to the prescribed transmission
power by turning the encoder.
(3)When the specified transmission power value is
reached,
release
the
microphone
PTT
button
and
press
the
[FREQ1]
key
to
set
the
adjustment
value.
5. Center frequency transmission output setting.
(1)Set the center limit frequency and press the
microphone PTT button to enter transmit node.
(2)Adjustment
the
power
meter
to
the
prescribed
transmission
power
by
tuming
the
encoder
(3)When
the
specified
transmission
power
vaiue
is
reached,
release
the
microphone
PTT
tustton
and
press
the
[FREQ2]
key
to
set
the
adjsutmerst
value.
41
