1 INSTALLATION

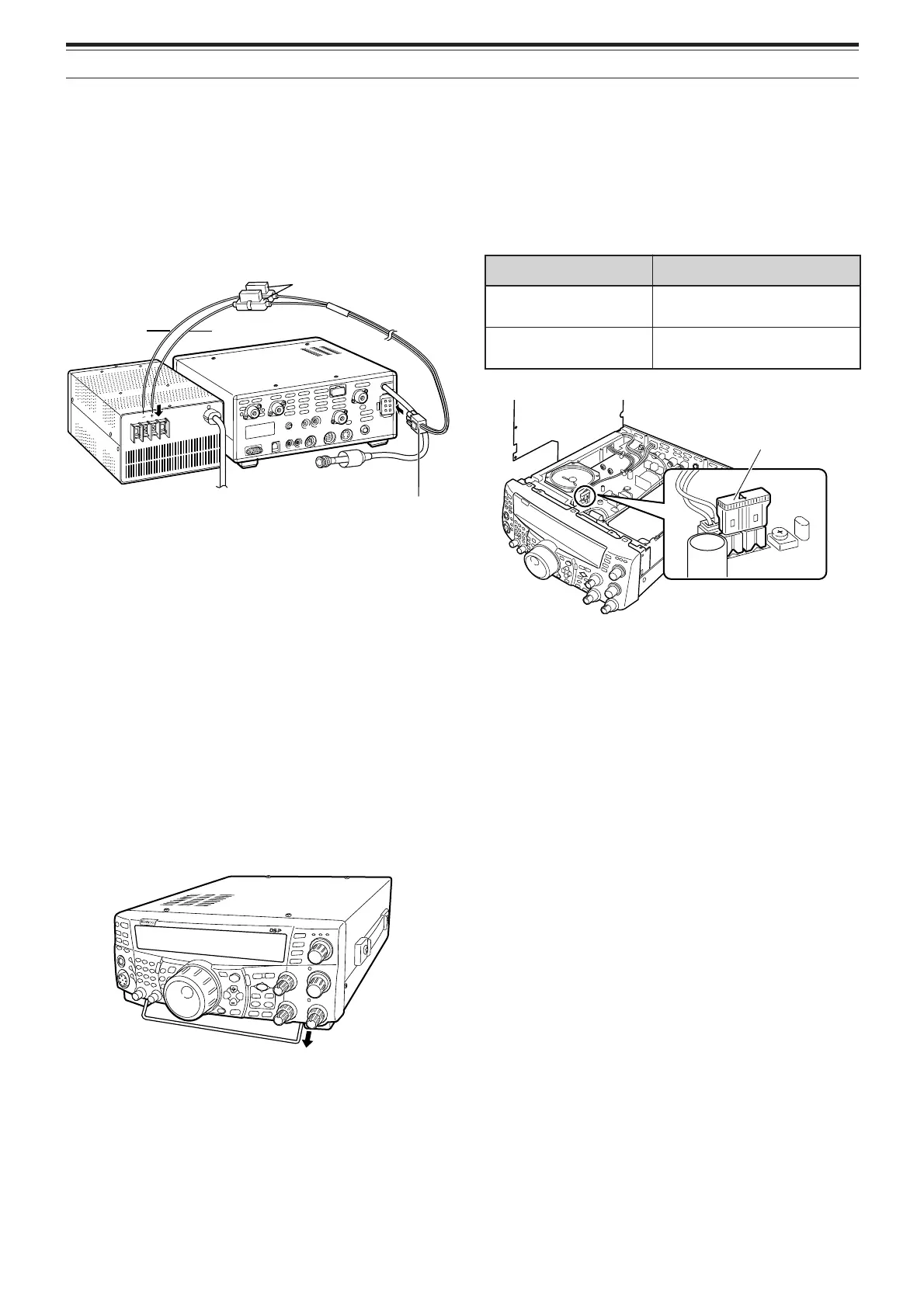

DC POWER SUPPLY CONNECTION
In order to use this transceiver, you need a separate
13.8 V DC power supply that must be purchased
separately. Do not directly connect the transceiver to
an AC outlet. Use the supplied DC power cable to
connect the transceiver to a regulated power supply.
Do not substitute a cable with smaller gauge wires.
The current capacity of the power supply must be
20.5 A peak or more.
TS-2000/ TS-2000X
TS-B2000
First, connect the DC power cable to the regulated
DC power supply; the red lead to the positive terminal
and the black lead to the negative terminal. Next,
connect the DC power cable to the transceiver’s DC
power connector. Press the connectors firmly
together until the locking tab clicks.
Note:
◆
Before connecting the DC power supply to the transceiver, be
sure to switch OFF the DC power supply and transceiver.
◆
Do not plug the DC power supply into an AC outlet until you
make all connections.
UTILIZING THE BAIL (TS-2000(X) ONLY)
This transceiver is equipped with a bail so that you
can angle the transceiver. The bail is located on the
bottom of the transceiver. Pull the bail forward to the
limit as shown.
REPLACING FUSES
If a fuse blows, determine the cause then correct the
problem. Only after the problem has been resolved,
replace the blown fuse with a new one with the
specified ratings. If newly installed fuses continue to
blow, disconnect the power plug and contact a
KENWOOD service station or your dealer for
assistance.
noitacoLesuF gnitaRtnerruCesuF
/)X(0002-ST
0002B-ST
A4
)renutannetnalanretxenaroF(
rewopCDdeilppuS
elbac
A52
Fuse holders
(Fuse 25 A)
DC 13.8 V
RedBlack
Pull the bail
Fuse (4A)
