Kenwood TS-2000 Instruction Manual

17 INSTALLING OPTIONS
98

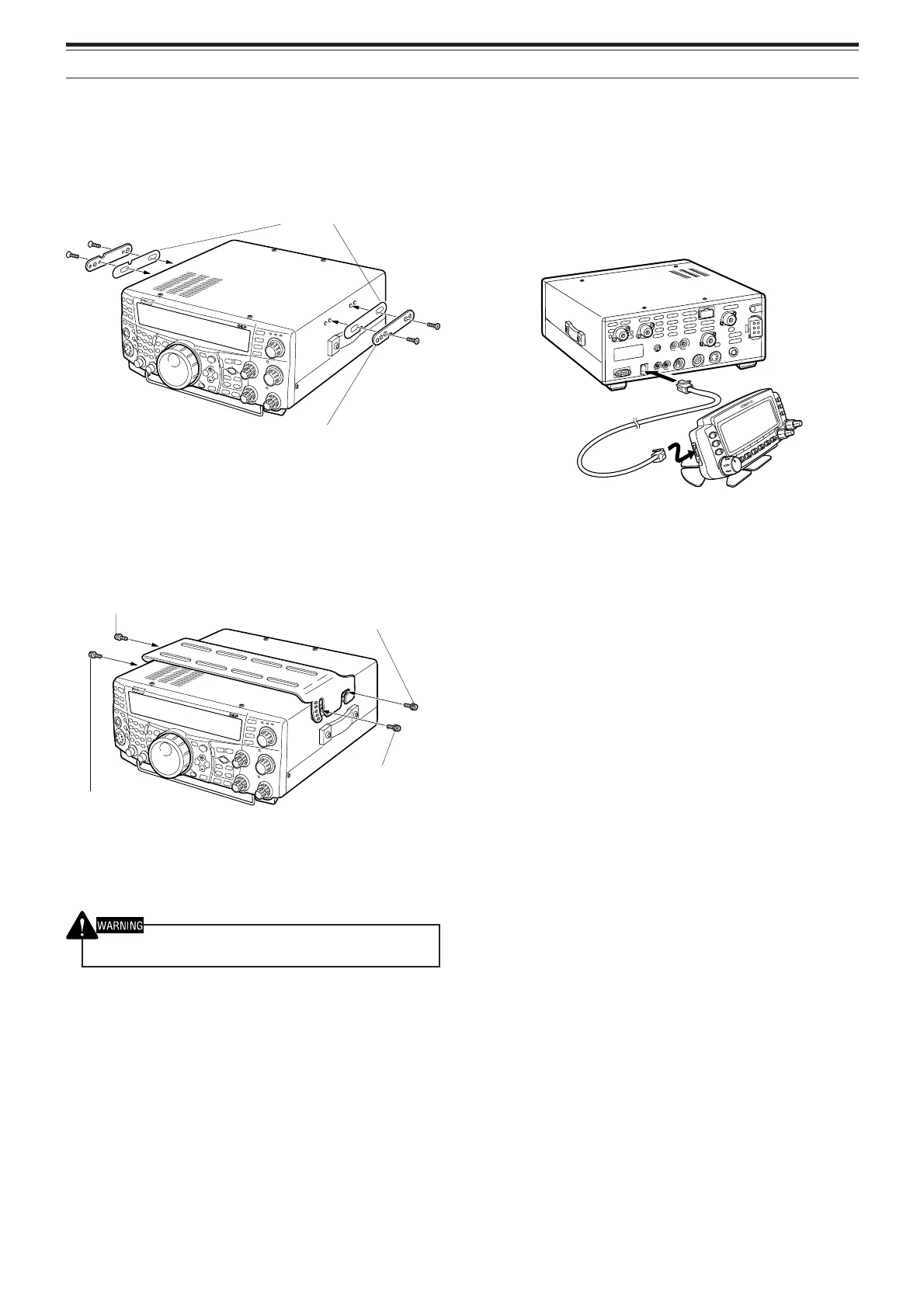

MB-430 MOBILE BRACKET
When installing the MB-430, attach the supplied
plastic spacers (G11-2698-XX) to the metal plates
that come with the MB-430. This is necessary to
protect the TS-2000(X)/ TS-B2000 from scratches.
Once the bracket is installed onto the vehicle,
prepare the transceiver by loosely screwing in the
rear screws. Hook those screws onto the rear guide
rail of the mounting bracket then adjust the
transceiver to your desired angle before tightening
the screws. Insert and tighten the front screws to
secure the transceiver in place.
To remove the transceiver from the bracket, first
remove the front screws, then loosen the rear screws
slightly and pull the transceiver forward to unlatch it
from the bracket.
Do not install the transceiver so that it is vertically on its side.
RC-2000 REMOTE PANEL
Plug the modular cable from the RC-2000 into the
PANEL connector on the TS-2000(X)/ TS-B2000 rear
panel. Access Menu No. 58 ~ 60 to adjust the panel
configuration if necessary.
TS-2000/ TS-2000X
TS-B2000
Rear screw
Rear screw
Front screw
Front screw
Make sure the tab faces out
G11-2698-XX

Kenwood TS-2000 Specifications

General

Antenna Impedance	50 ohms
Supply Voltage	13.8V DC ±15%
Current Drain TX	20.5A
Receiver Type	Triple Conversion Superheterodyne
Modes	SSB, CW, AM, FM, FSK
Type	Base Station
Frequency Range TX	0.1-60 MHz (HF), 144-148 MHz (VHF), 430-450 MHz (UHF)
Image Rejection	More than 70 dB
Selectivity	2.4 kHz (SSB), 500 Hz (CW), 15 kHz (FM)
Antenna Connector	SO-239
Frequency Range	HF/6m/2m/70cm
