4 GETTING ACQUAINTED
%4 PC
Appears when the TS-2000(X) is being controlled by
a PC {page 81}.
%5
The main transceiver operating frequency display.
%6
When the sub-receiver is switched ON, it shows the
receive frequency for the sub-receiver. However, if
you are controlling the main transceiver functions,
such as RIT, XIT, or SPLIT, it is used to display the
frequency information for these functions {page 45}.
%7 MAIN dot-matrix display
In the normal operating mode, it displays the
operating mode for the main transceiver. It is also
used to display various control information, such as
menu numbers and settings and the DSP filter
configuration.
%8 SUB dot-matrix display
In the normal operating mode, it displays the
operating mode for the sub-receiver. It is also used
to display various control information, such as menu
information and the DSP filter frequency
configuration.

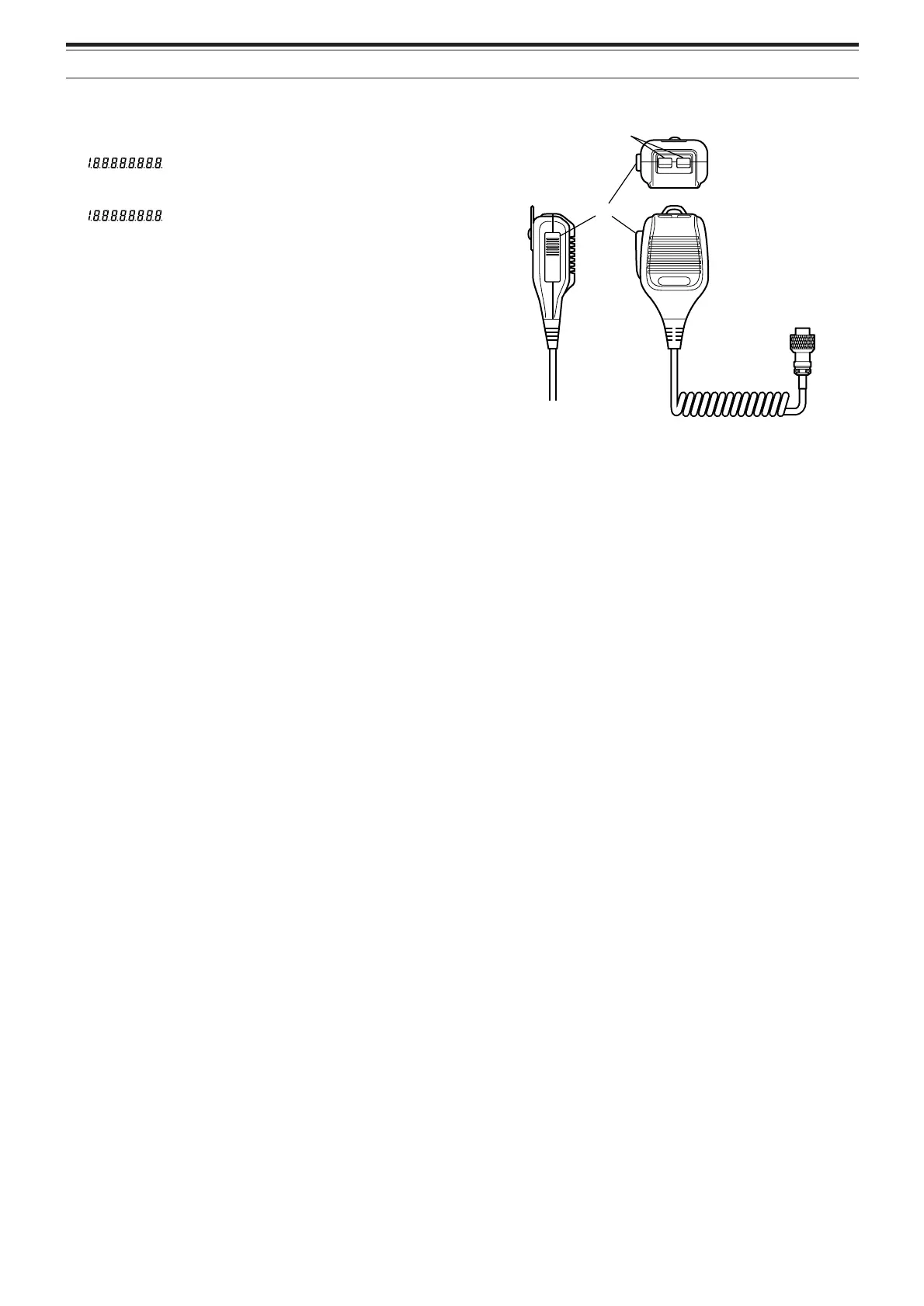

MICROPHONE
PTT
DWN UP
q
w
q UP/ DWN keys
Use these keys to step the VFO frequency, memory
channels, or Menu selections up and down. Press
and hold these keys to continuously change the
settings.
w PTT (Push-to-Talk) switch
The transceiver is placed in transmit mode when this
non-locking switch is held down. Releasing the
switch returns the transceiver to receive mode.
