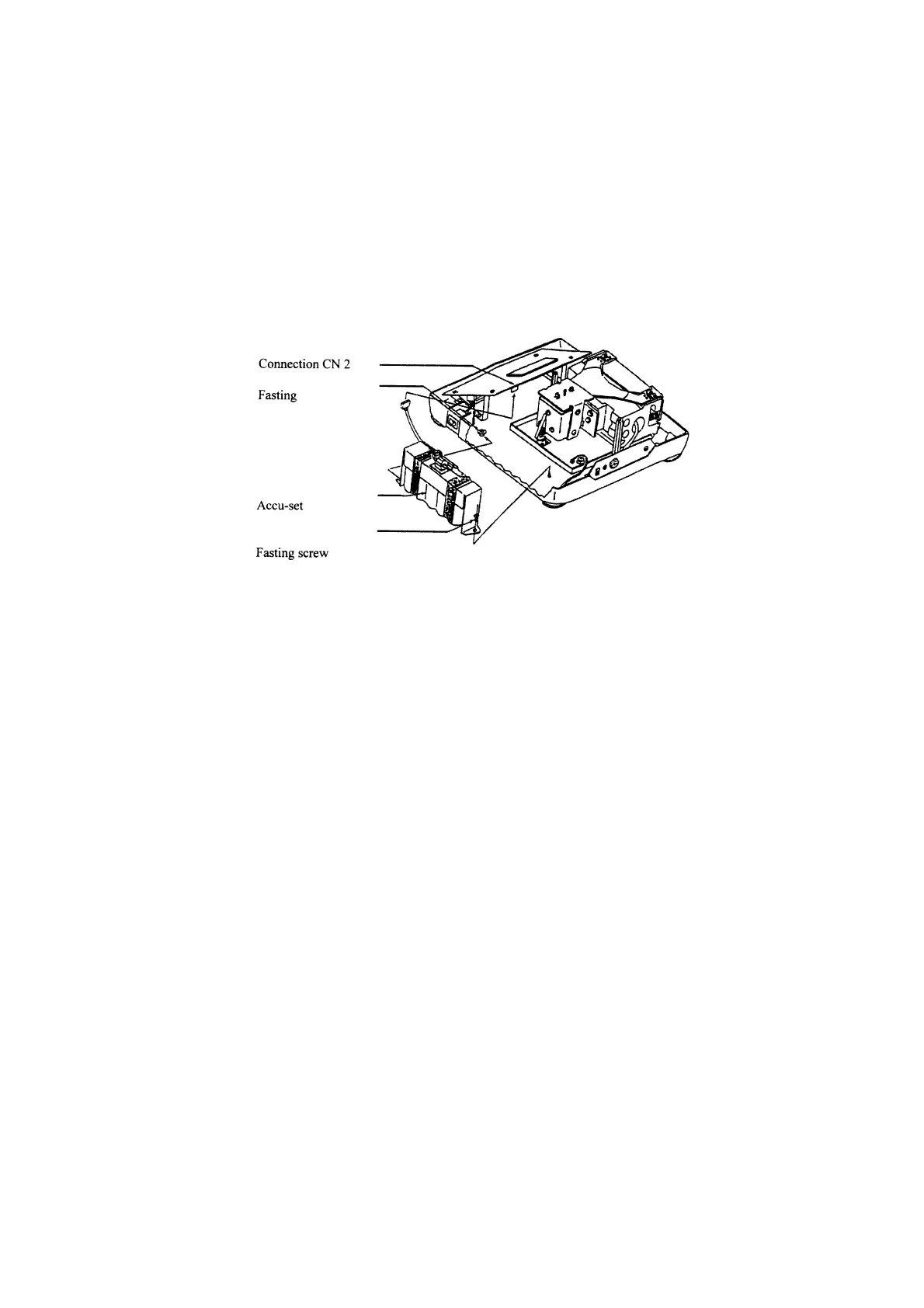

Release the fastening screw in the lower part of the casing and insert the accu-set as
per the drawing.
Slide the U-shaped sector of the accu-holder below the lock.
Re-insert and tighten the fastening screw.
Do the same with the fastening screw for the lock.
Slide the plug of the connection cable on the plug CN2 of the main print.
Put on the upper part of the casing. Take care that no cable will be squeezed.
Tighten the both screws in the frame and put on the weighing plate.
When the balance must automatically shut off after a certain time (sleep function) point
4 AS in the programmation, see point 10 „General programmations“ has to be set
accordingly.
