12 Data output
The balance is supplied as standard with an interface similar to RS 232
Important!
A standard bidirectional RS 232 C interface with comfortable remount
control is available against extra charge.
12.1 Description of the serial data output (similar to RS 232)
The data output is placed at the rear side of the balance. It is a 8-pole standard socket.

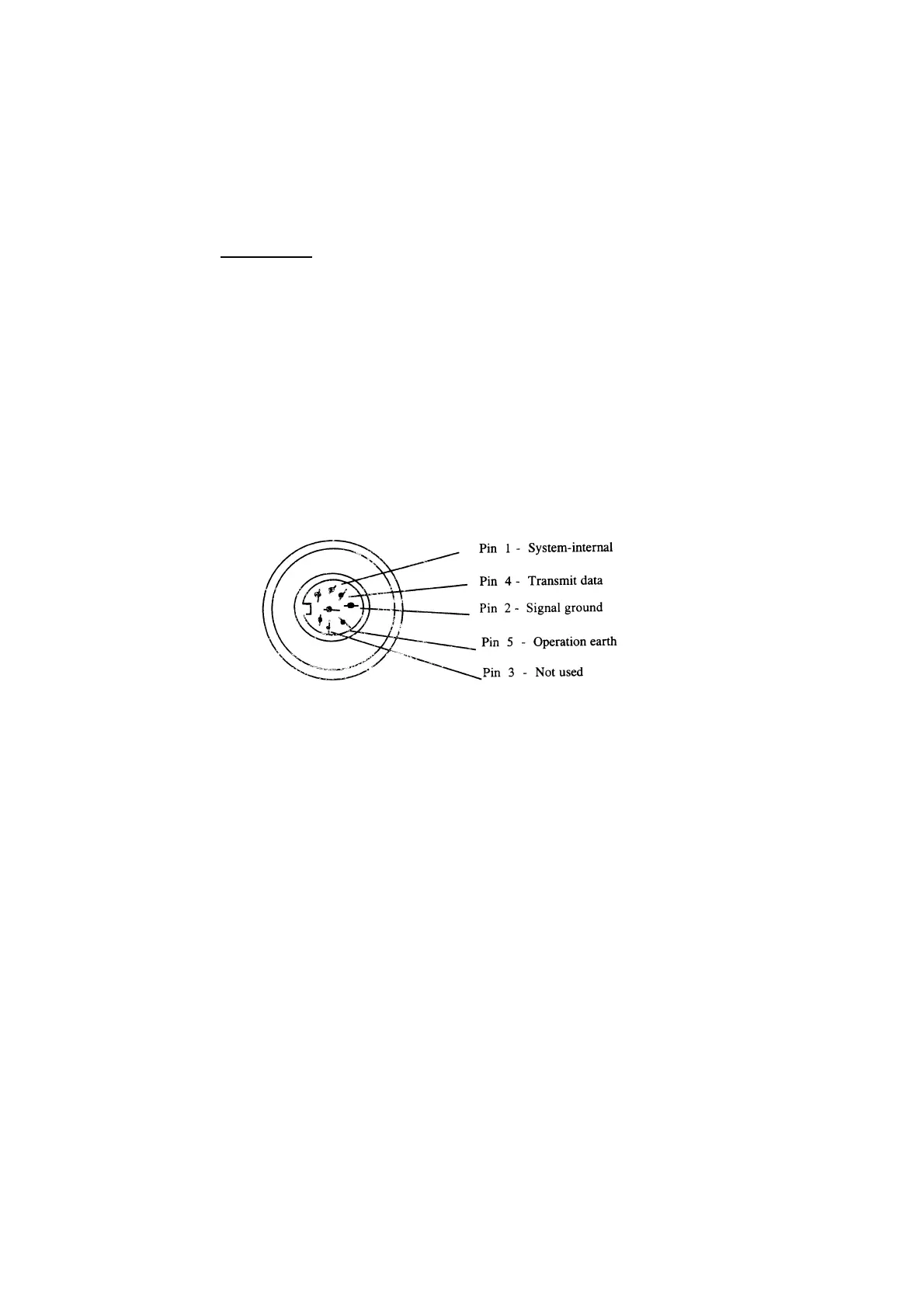

Pin description see following illustration:
The transfer of the measuring data from the balance is made via pin 4 and 5 only.
Pin 4 - Transmit data
Pin 5 - Signal ground
