11.1 Connection to peripheral devices

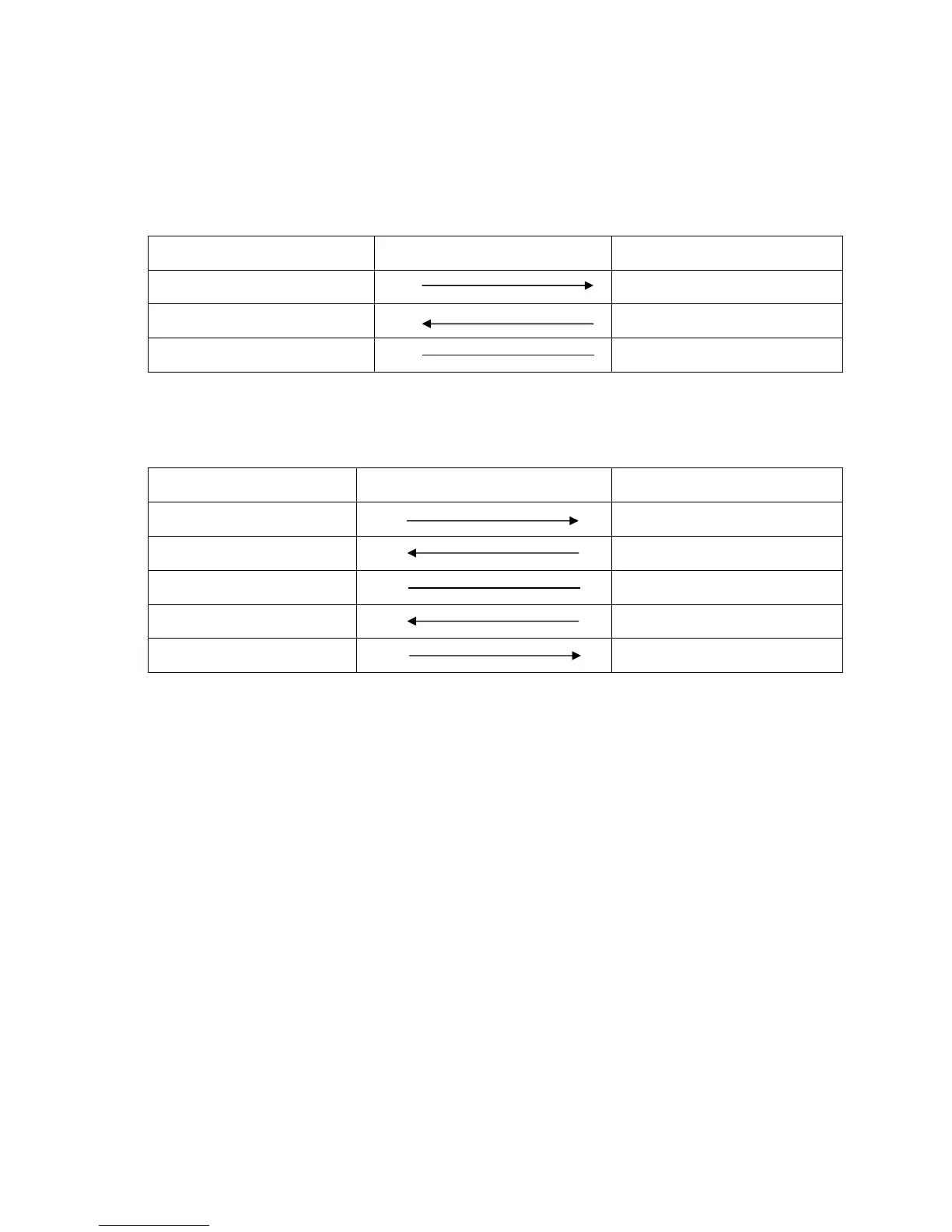

The balance can be connected to peripheral devices in three ways:
• Standard, duplex connection
Balance RJ 45 D25 Peripheral device
RS 232 out 2 3 RS 232 in
RS 232 in 6 2 RS 232 out
GND 5 7 GND
• Standard, duplex connection with additional hardware handshake in the
peripheral device
Balance RJ 45 D25 Peripheral device
RS 232 out 2 3 RS 232 in
RS 232 in 6 2 RS 232 out
GND 5 7 GND
CTS 3 20 DTR
DTR 7 5 CTS
