Installation
45 / 1802017/11
Danger through incorrectly dimensioned connection cables. The lifting station is only designed for operation
with the enclosed connection cables (or equivalent). If in doubt, consult the manufacturer / supplier.
• Fit end sleeves (length 8 mm) to the ends of the cables
• Lay the connecting cable safely from the system tank to the control unit (e.g. conduit pipe, cable duct)

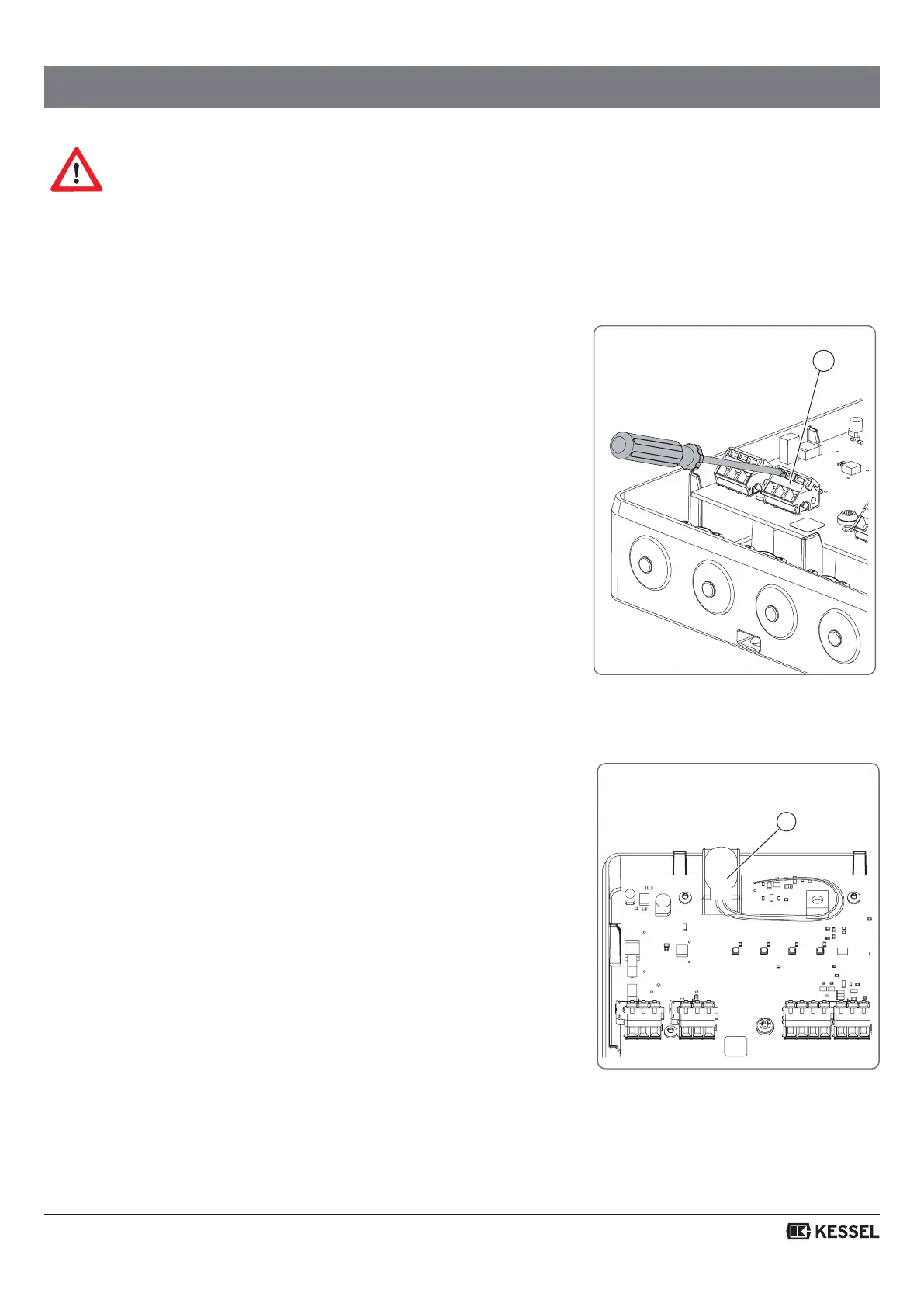

• Attach connecting cable to the terminal strip acc. to the
circuit diagram (next page). To do so, keep the relevant cable
terminal <3> pressed down against the spring pressure with a
suitable screwdriver until the end of the cable has been inserted
• Attach strain relief ttings for all connecting cables
• Connect battery plug to battery
• Fit and fasten the housing cover,
tightening torque 1.2 Nm
• Route the battery‘s cable (32) so that it does not cover
the LEDs or is clamped.
3
Ill. [12]
32
Ill. [13]
