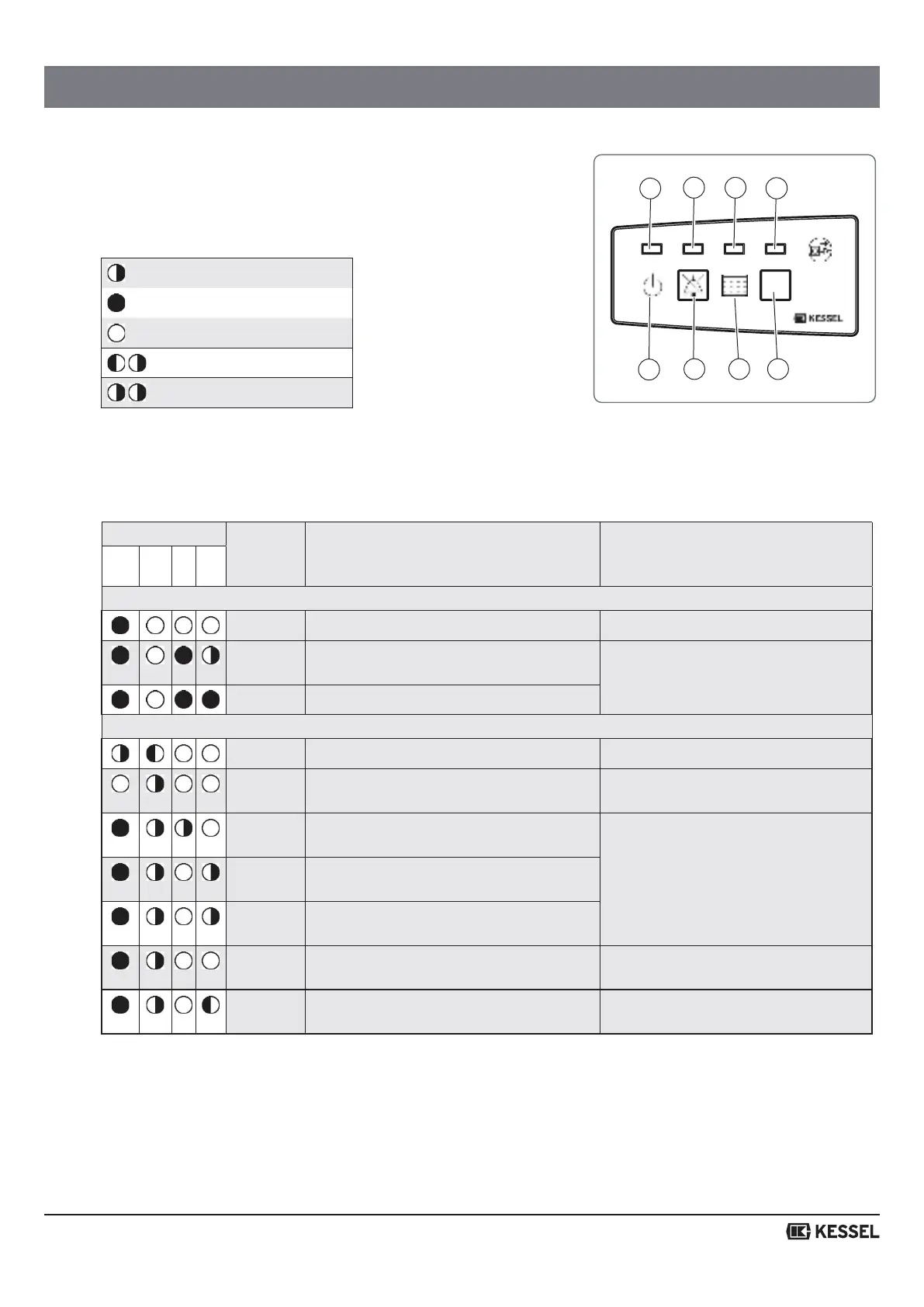

4.3 Overview of LED displays / information
ey
Flashing
Lights up / switched on
Switched off
Flashing alternately
ashing simultaneously
LED Acoustic
signal
(interval)
Description Action
1 2 3 4
Operating states
- Ready for operation
- System tank full, will be pumped out
shortly
No action necessary, wastewater
pump can be switched off with button
<8> (see manual operation 4.6)
- Pumping system tank to empty
Alarm statuses / faults
x Battery fault Replace battery
x Power outage, no mains voltage, lifting
station has no function
Restore mains voltage, acknowledge
alarm (see 4.4)
x Level fault, illogical sequence of levels
detected
Acknowledging the alarm (4.4)*
x Running time / number limit, wastewater
pump switch on to often or too long
x Running time limit, maximum running
time for wastewater pump exceeded
x Alarm level exceeded Wait until the level drops below the
alarm level again
Exceeded maximum switching cycles Acknowledge alarm (4.4) and replace
control unit
* If the fault occurs again, inform the Customer Services department
Aqualift Basic Mono
PUMP
1
234
5678
Ill. [17]
