2. Check of the alarm switch
• Fill the wastewater container as described under 1. Check of the pump(s), but allow the level to climb above
the marking so that an alarm is triggered on the control unit (audible alarm is sounded/alarm LED flashes).
• Switch off the water supply.
• Do not continue with manual operation; for this purpose, ensure that the <71> (<73>) key is not pressed
again, the control unit will then switch the pump(s) on again and the wastewater container will be drained.
• Acknowledge the alarm on the control unit by pressing the <69> key; the alarm LED is switched off.
The lifting station is now ready for operation.
3.5 Settings, menu
General
The menu control features an operating and a standby mode.
In the operating mode, the system settings can be displayed and adjusted using the display (see also 7.1,
Menu structure).
If none of the keys is actuated for a period of approx. 60 seconds, the standby mode is activated automatically
and the background lighting of the display is switched off.
Activating operating mode

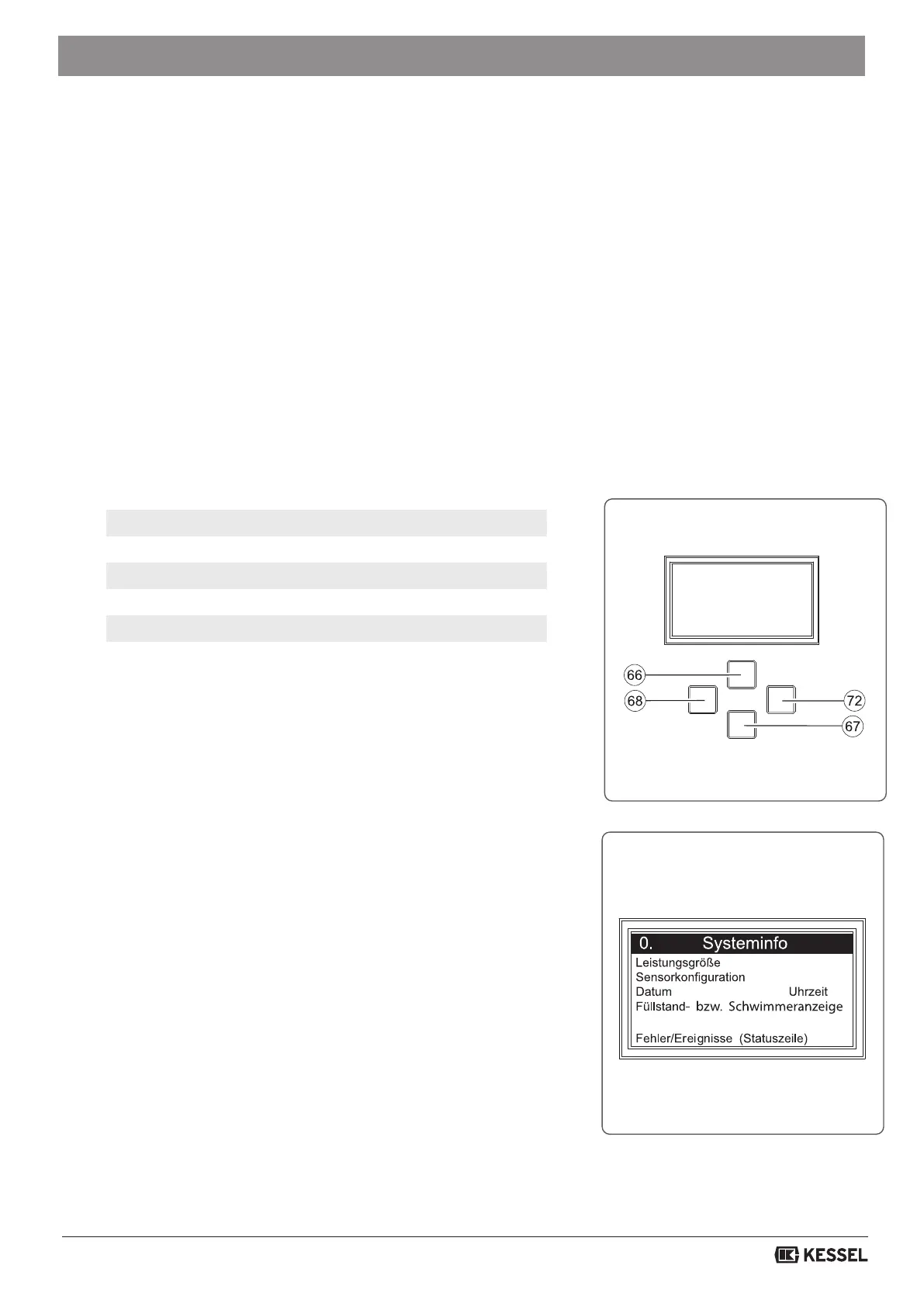

• Actuate the OK <72> key on the control panel; the background
lighting of the display lights up and the start screen (System info,
Fig. [11]) is displayed.
• Actuate OK <72>; level 1 of the menu (see 7.1, Menu structure)
is activated.
Note: The display may vary depending on the configuration.
Navigation keys for the menu
66 Up arrow Scroll in the menu
67 Down arrow Scroll in the menu
68 ESC Cancel an entry, back
72 OK Confirm an entry, next level
[10]
[11]
