B3000 SERVICE MANUAL
60-200807-000, REV C 39

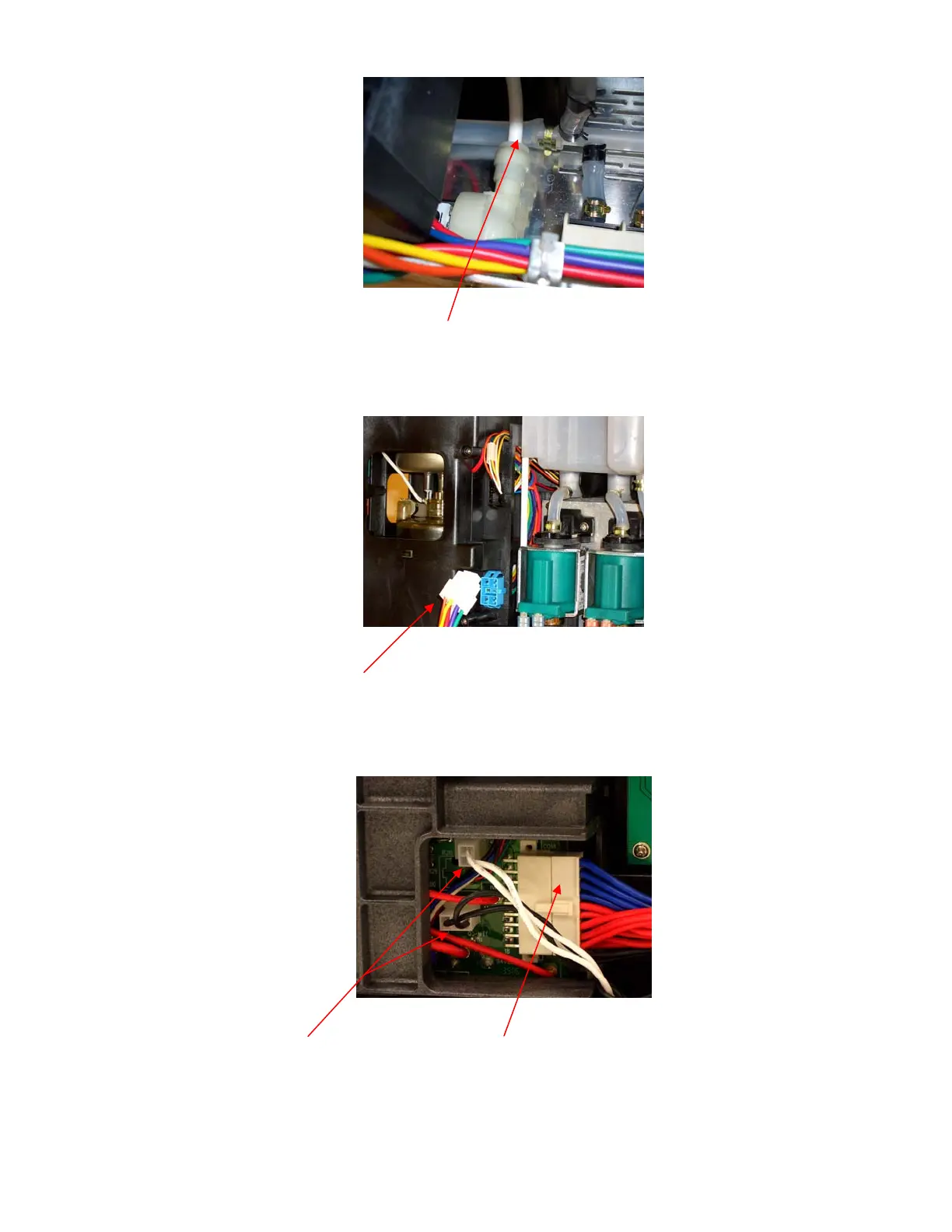

6. Disconnect the tube from the Inlet Valve that goes to the Cold Water Tank. The Inlet Valve is
located on the Power Module. This is a quick release tube connection. Remove the black locking
clip from the fitting if present. Push in on the collar, and pull out the tube.
7. Disconnect the wire harness attached to the Hot Water Tank module.
Looking at the left side of the brewer when facing from the front, locate the main power harness, and
transformer.
8. Disconnect the two transformer and main power harness from the Power Module PCB.
9. The Power Module can now be removed from the brewer.
