B3000 SERVICE MANUAL
60-200807-000, REV C 76

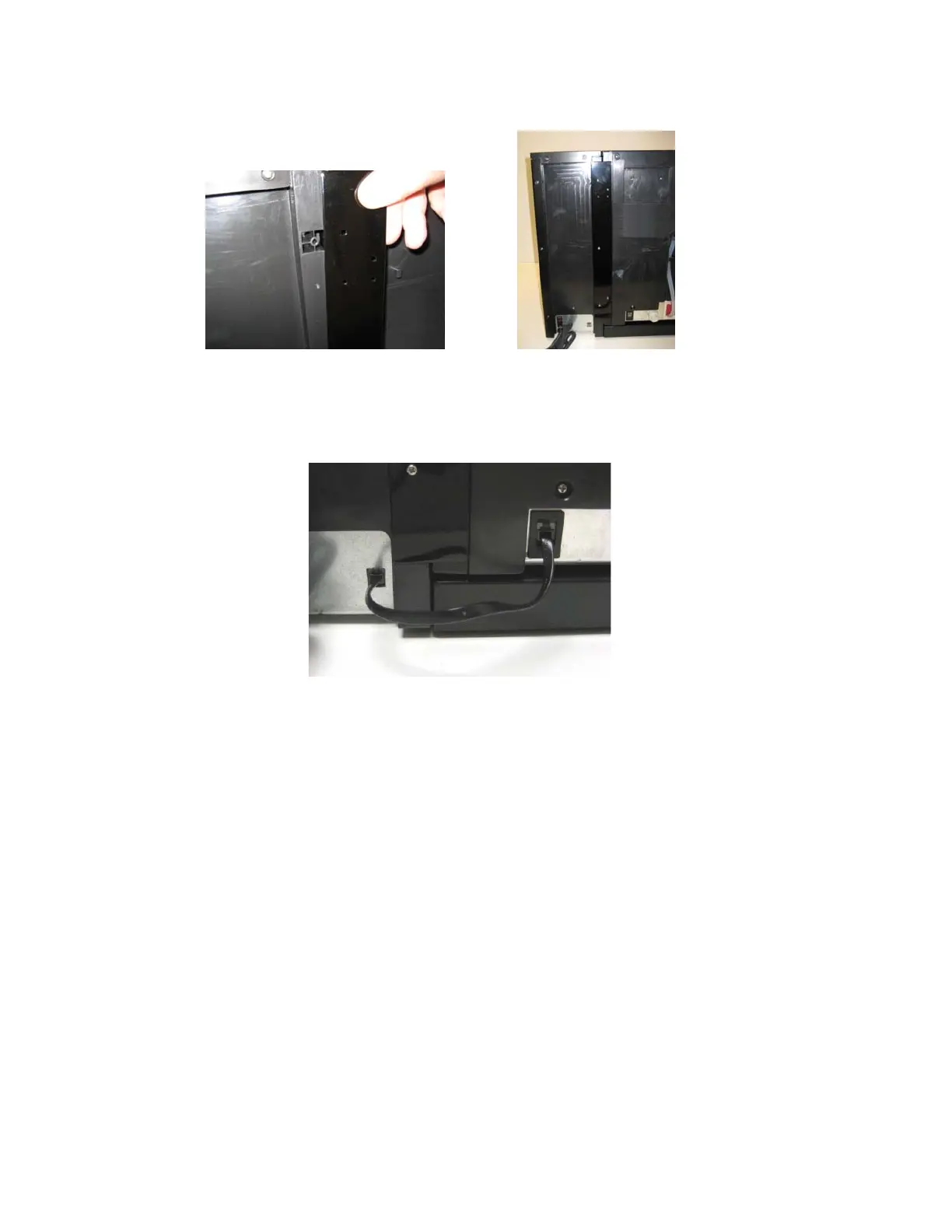

5. Fasten the brewer-cabinet plate to the cabinet (three screws) and to the brewer (two screws).
See figures 8 and 9 below.
6. Connect the control cable to both RJ11 connectors on the rear of the brewer and the coin
changer cabinet. See figure 10 below.
Figure 10
Figure 9
Figure 8
