Project 8: There’s flame
Overview
What's the simplest way to check the fire happened? Use a flame sensor. In
this project, we simply test the flame sensor to turn on led if detecting
flame.
Component Required:
 EASY plug control board*1
 EASY plug Flame Sensor *1
 EASY plug LED Module*1
 EASY plug Fan Motor*1
 RJ11 cable *2
 USB cable*1
Component Introduction:

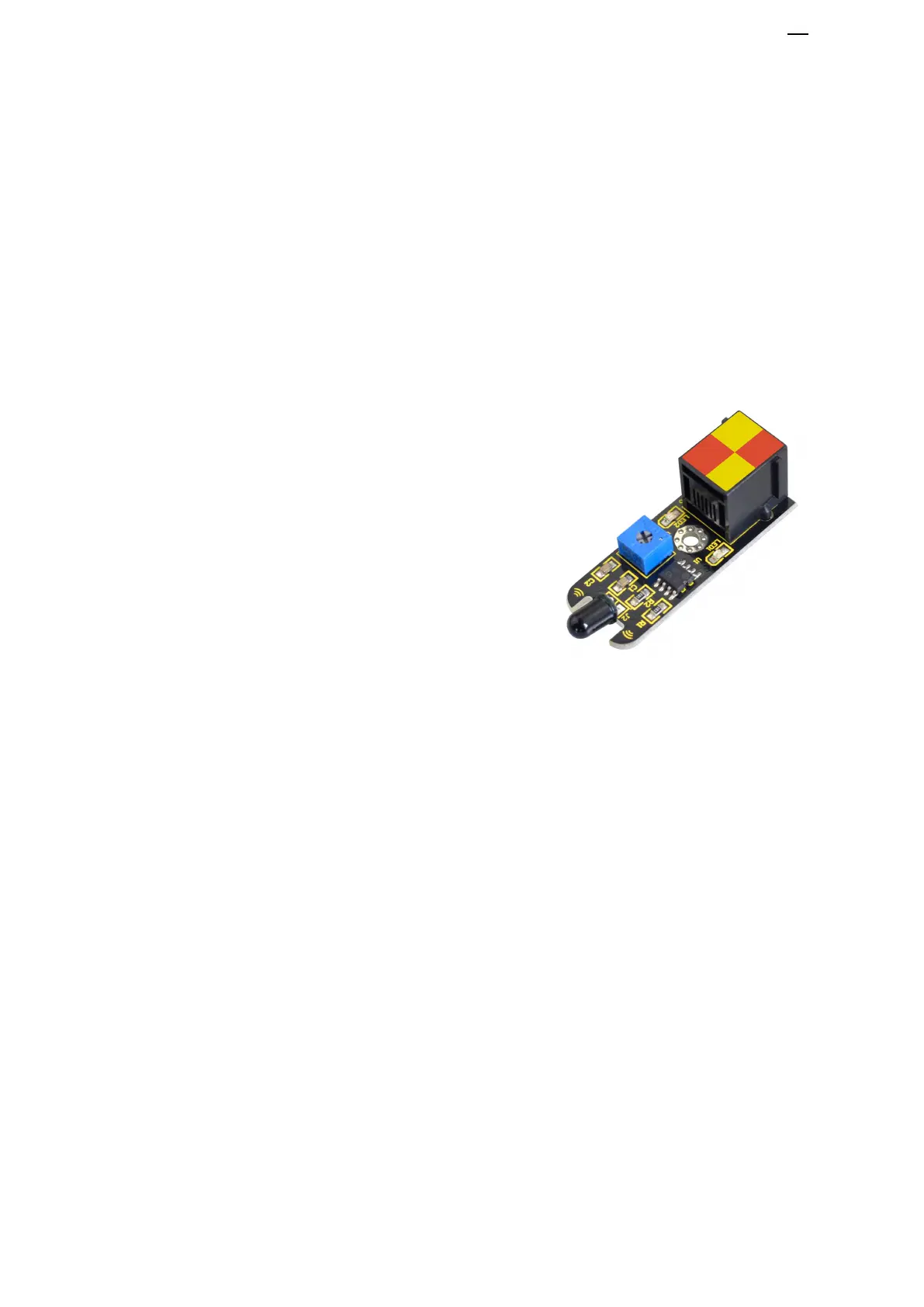

EASY plug Flame Sensor
The flame sensor can be used to detect fire or other wavelength at 760nm
~1100nm light.
In the fire-fighting robot game, the flame plays an important role in the
probe, which can be used as the robot's eyes to find fire source.
The potentiometer on the flame sensor can be used to adjust the sensitivity.
 Supply Voltage: 3.3V to 5V
 Detection range: 500px (4.8V) ~ 2500px (1V)
 Spectral Bandwidth Range: 760nm ~ 1100nm
 Operating temperature: -25℃ to 85℃
 Sensor type: digital
