Project 10: Servo
Overview
This lesson we are going to rotate the servo motor.
Component Required:
 EASY plug control board*1
 EASY plug Servo Module *1
 Keyestudio Micro Servo *1
 RJ11 cable *1
 USB cable*1
Component Introduction:

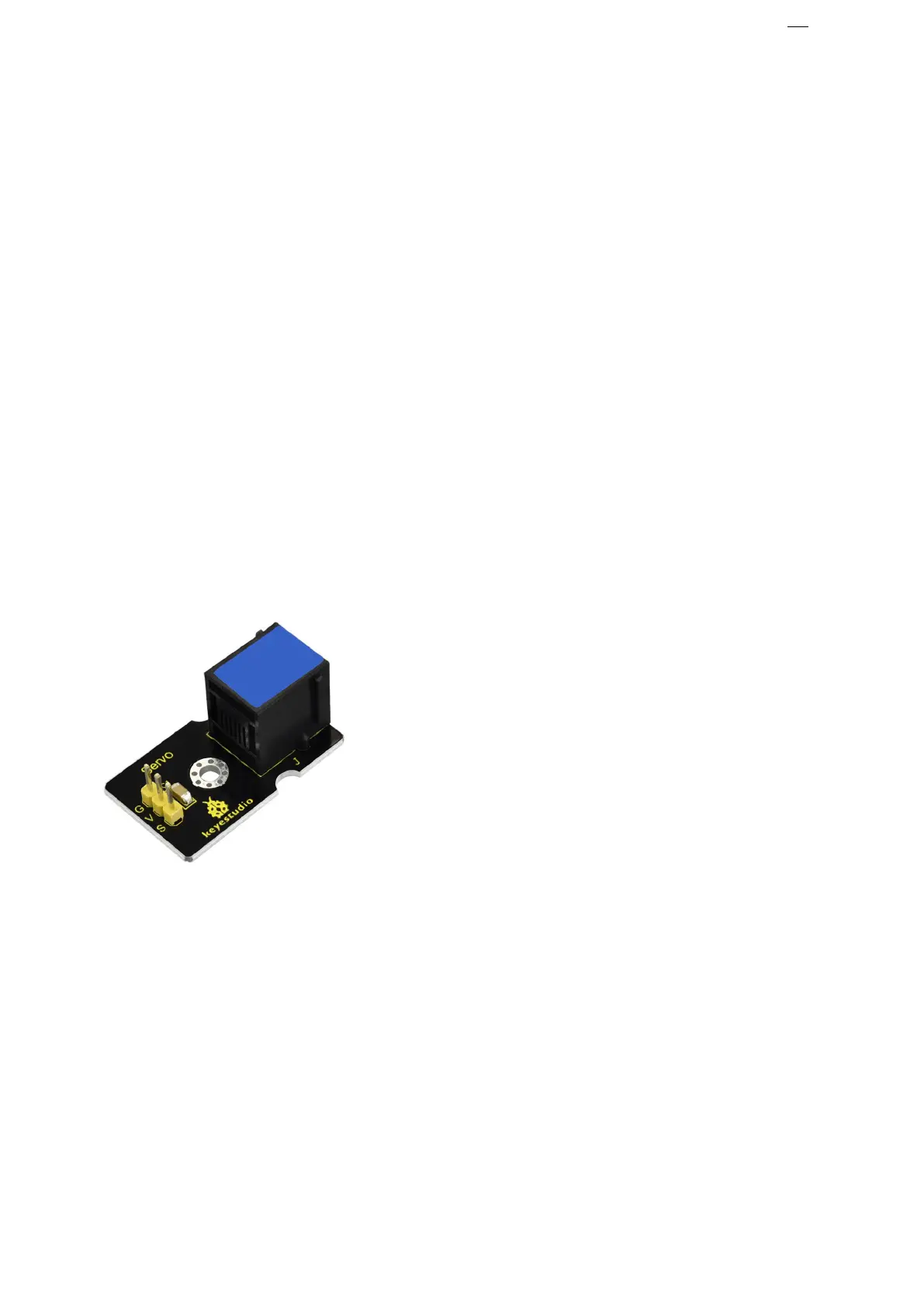

EASY plug Servo Module
If you want to use the Micro Servo and
EASY PLUG control board to do some
experiments, you need to use the EASY plug
Servo extension module.
The EASY plug Servo module is extended into
Registered Jack, so you can connect it to
EASY PLUG control board using only a RJ11
cable.
The Servo module also comes with 3pins of 2.54mm pin pitch, fully
compatible with servo pins.
Servo motor comes with many specifications. But all of them have three
connection wires, distinguished by brown, red, orange colors. Brown one is
