Project 11: Slide Position
Overview
This lesson you will learn how to use slide potentiometer to control the LED
brightness and servo rotation.
Component Required:
 EASY plug control board*1
 EASY plug slide potentiometer *1
 EASY plug LED module*1
 Servo motor *1
 RJ11 cable*2
 USB cable*1
Component Introduction:

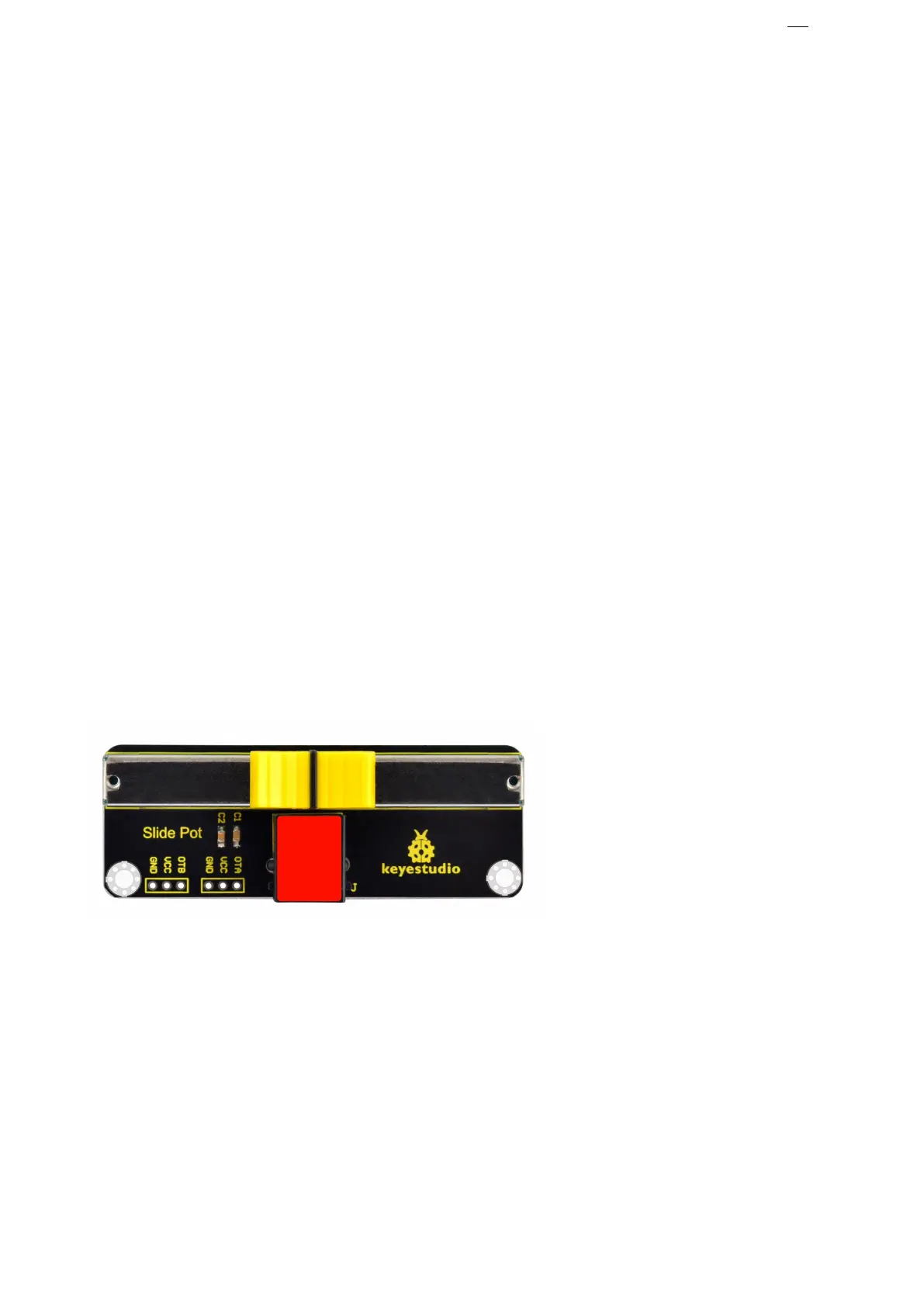

EASY plug Slide Potentiometer Module
The EASY plug slide
potentiometer uses high
quality sliding appliances
for stable and reliable
performance. It is a dual
analog output that outputs a 0-VCC analog voltage signal.
The module pins are extended into Registered jack, so you can easily
connect it to EASY Plug control board using a RJ11 cable.
There are 6 pad interfaces on the module. So you can solder two 3pin
headers with a pitch of 2.54mm on the module.
It can be used to connect with other MCUs. The signal terminal outputs two
analog values. The sum of the two analog values is 1023.
