Keyestudio EASY PLUG Ultimate Starter Kit - Page 137

www.keyestudio.com
134
the effective distance range of 2~40cm.
They can be widely used in robot obstacle avoidance, avoidance car, line
count, and black and white line tracking and many other occasions.
 Working voltage: DC 3.3V-5V
 Working current: ≥20mA
 Working temperature: －10℃ to＋50℃
 Detection distance: 2~40cm
 Output signal: TTL voltage
 Effective Angle: 35°
Connect It Up

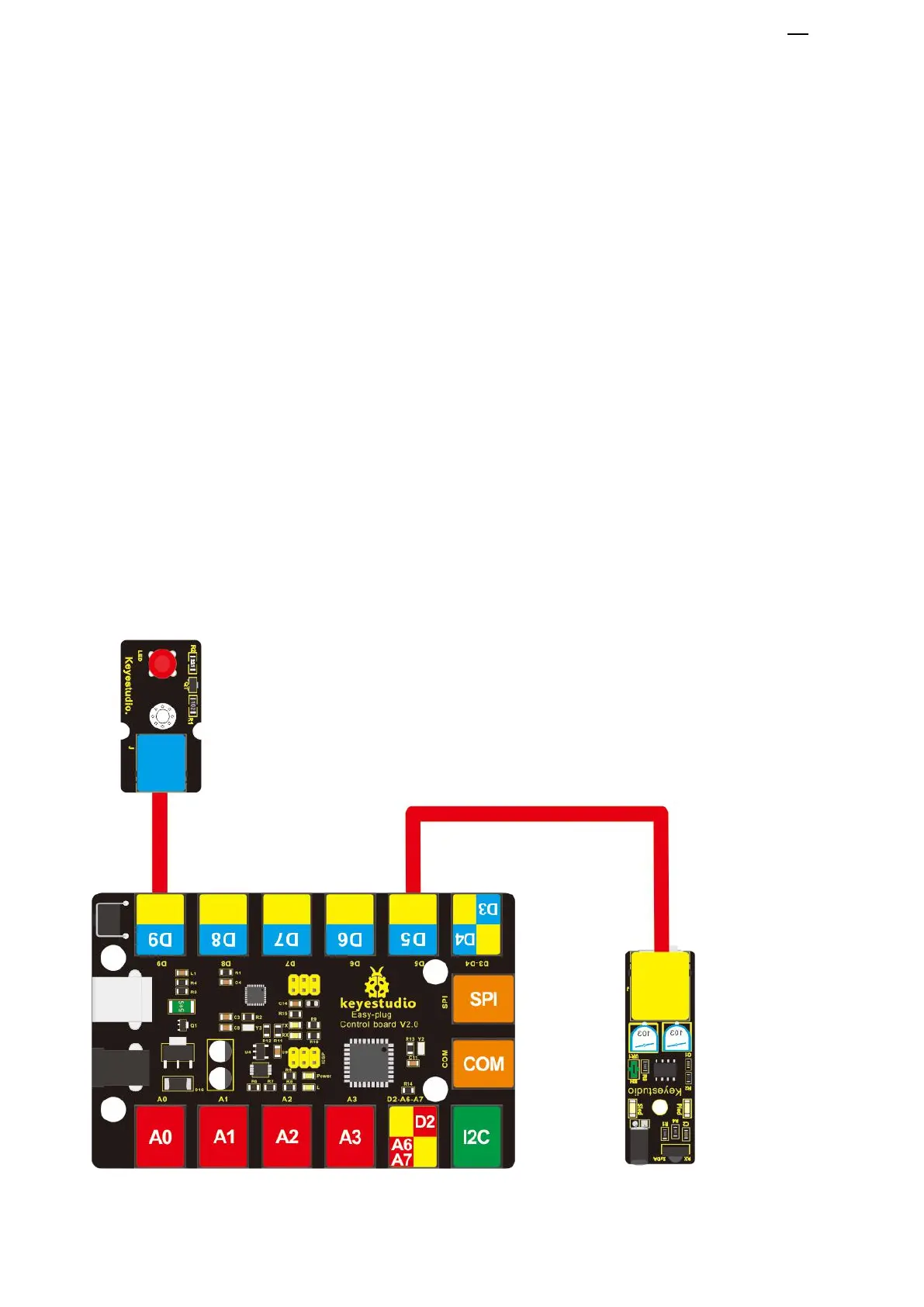

Connect the EASY Plug obstacle detector sensor and LED module to control
board using RJ11 cables.
