first pixel and then sent to the data latch inside the pixel point.
LED has advantages of low voltage drive, environmental protection and
energy saving, high brightness, wide scattering angle, good consistency,
ultra low power, long life and so on.
Specifications:
 Operating Voltage: DC5V
 Power: 0.1W
 Light Source: SMD 5050 RGB
 IC model: 4 / WS2811
 Gray level: 256 levels
 Illumination angle: 180°
 Luminous color: can be adjusted by the controller, white, red, yellow,
blue, green, etc.

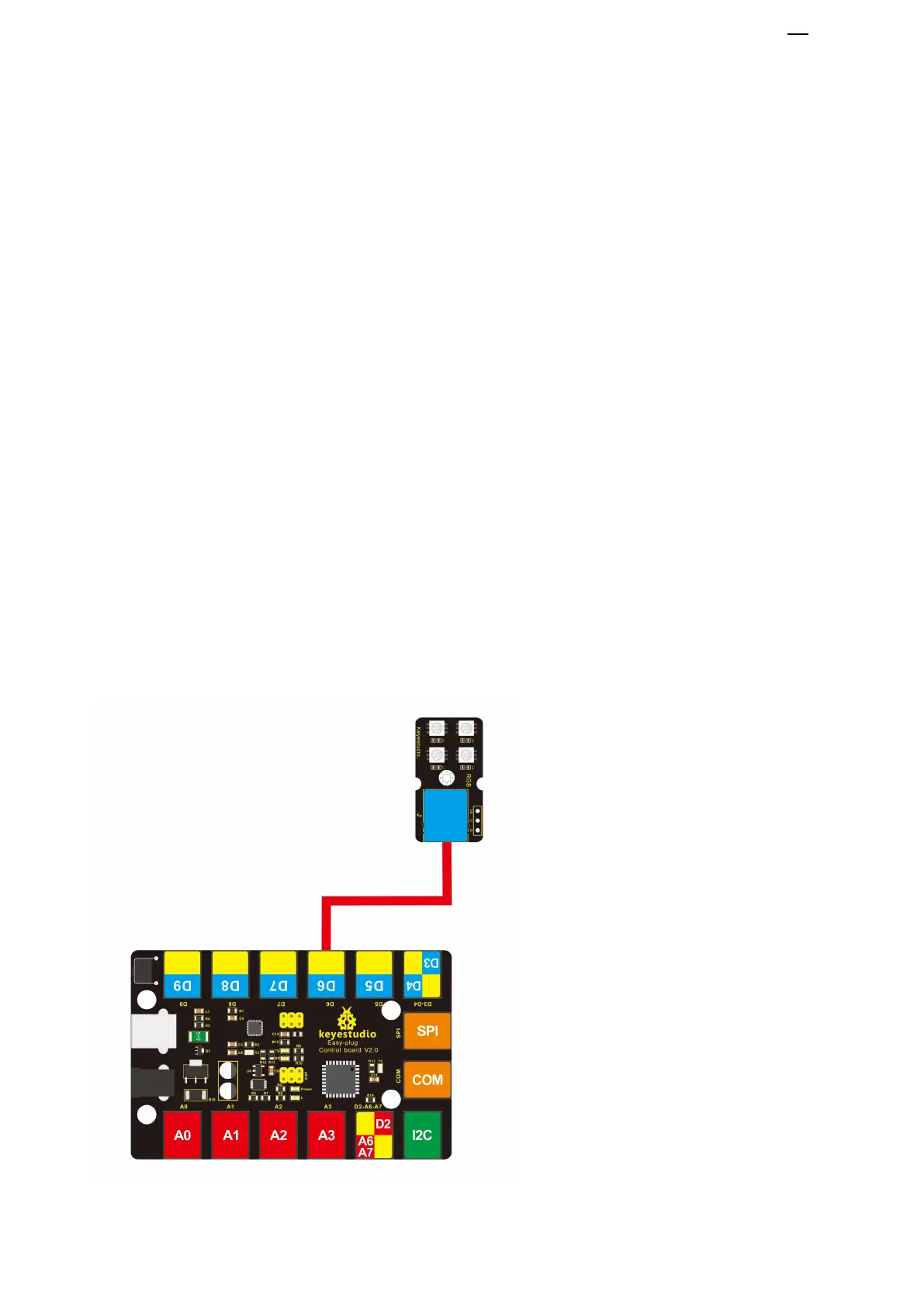

Connect It Up
