The device has a detection range of 7 meters and a detection angle of 100º.
 Input Voltage: 3.3 ~ 5V, Maximum 6V
 Working Current: 15uA
 Working Temperature: -20 ~ 85℃
 Output Voltage: High 3V, Low 0V
 Output Delay Time (High Level): About 2.3 to 3 Seconds
 Detection angle: 100°
 Detection distance: 7 meters
 Pin limit current: 100mA
Connect It Up

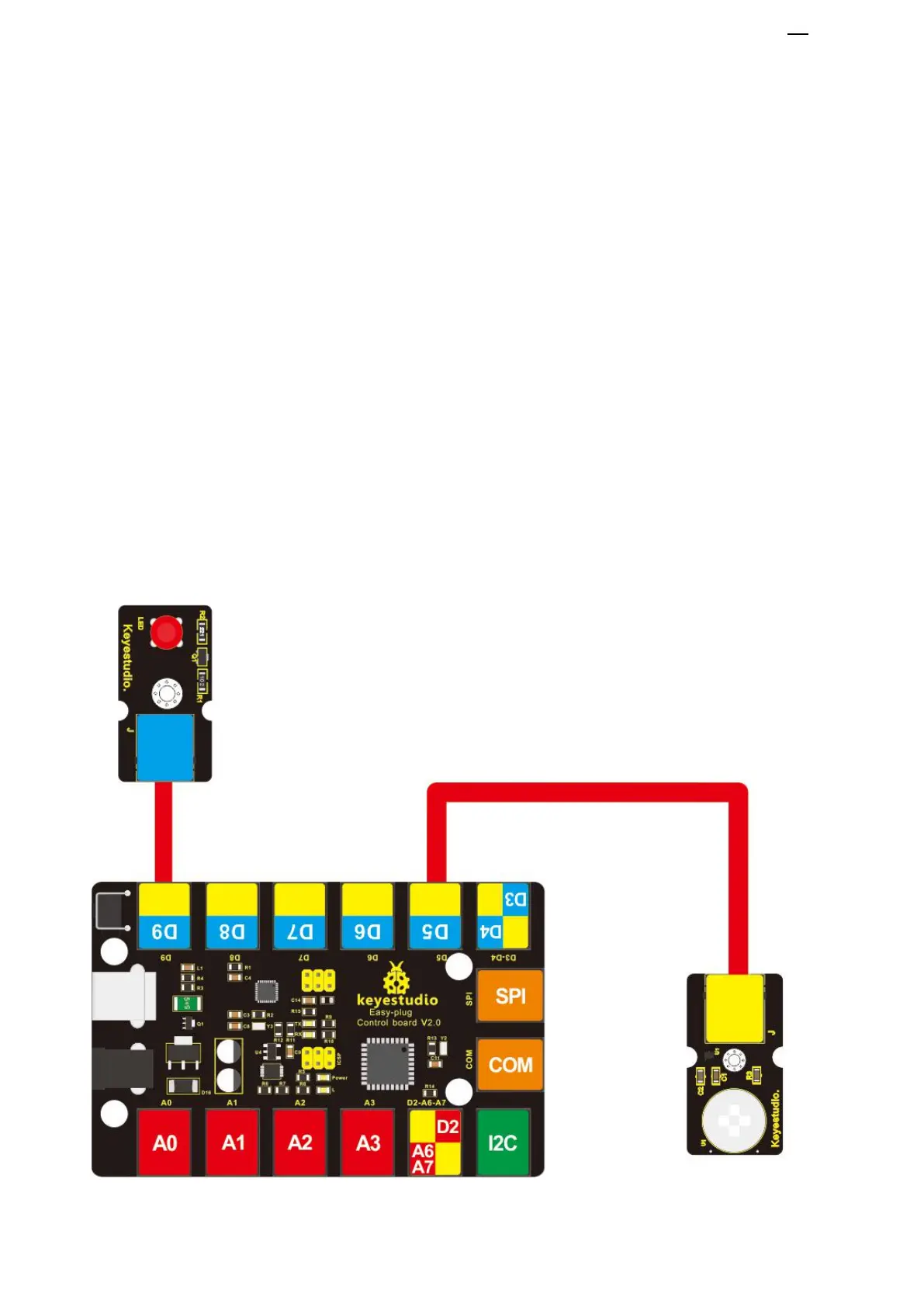

Connect the EASY Plug PIR Motion sensor and LED module to control board
using RJ11 cables.
