www.keyestudio.com
172
Connect It Up

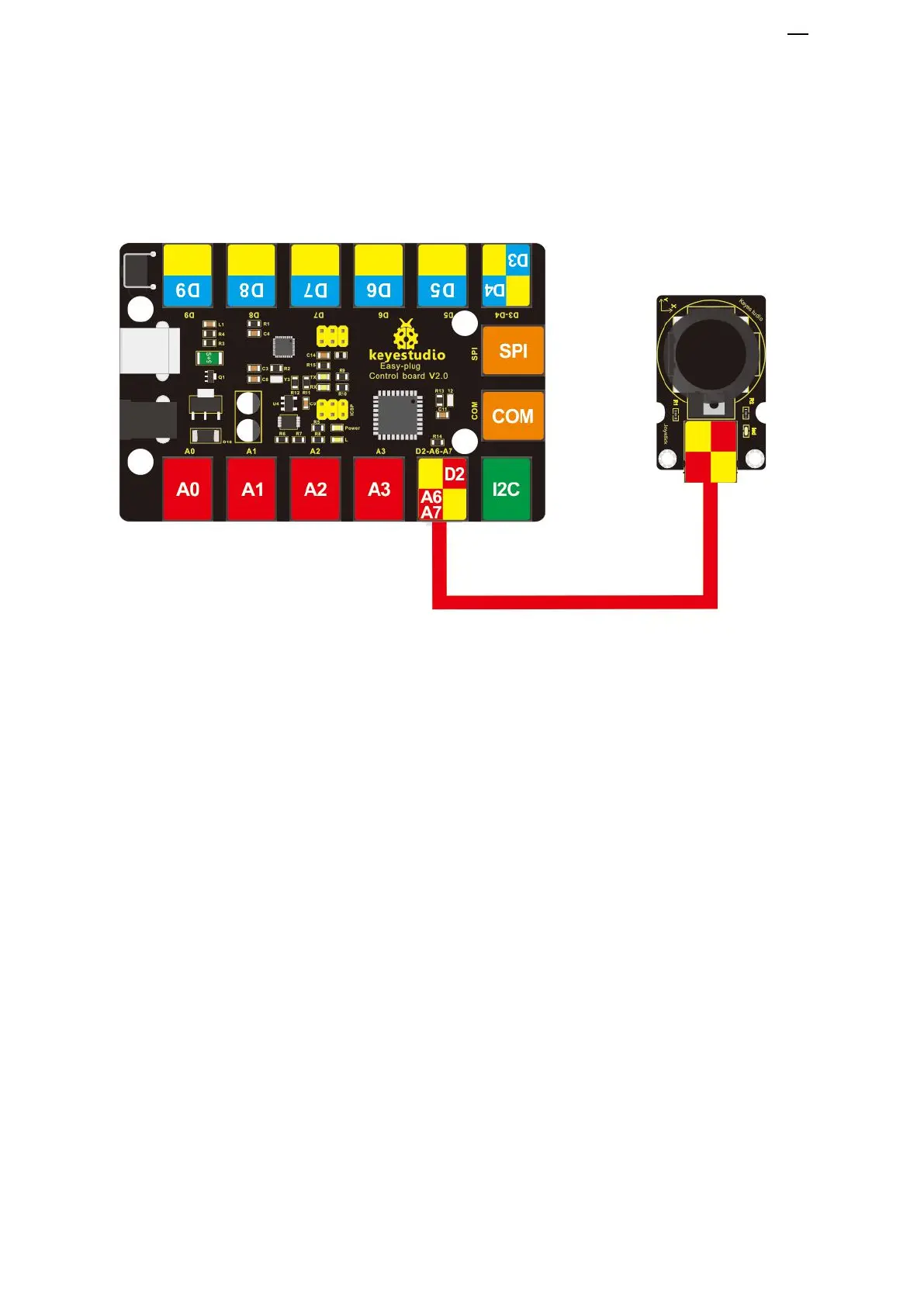

Connect the EASY Plug Joystick module to control board using an RJ11
cable.
Note: X-axis is connected to A6, Y-axis is connected to A7, Z-axis is default
by D2
Upload the Code
