24 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide
Model/Option Description Qty
B1500A Semiconductor Device
Analyzer Mainframe
1
B1500A-015/030 1.5 m or 3 m length of
bundled cables
1
B1500A-A00 Empty package for custom
solution, contains no
measurement module
1
B1500A-A11 (or
A17)
Adds one MPSMU (or
HRSMU) and two triaxial
cables
2
B1500A-A5F Test fixture for packaged
device measurement, adds
one 16442B (Optional)
1

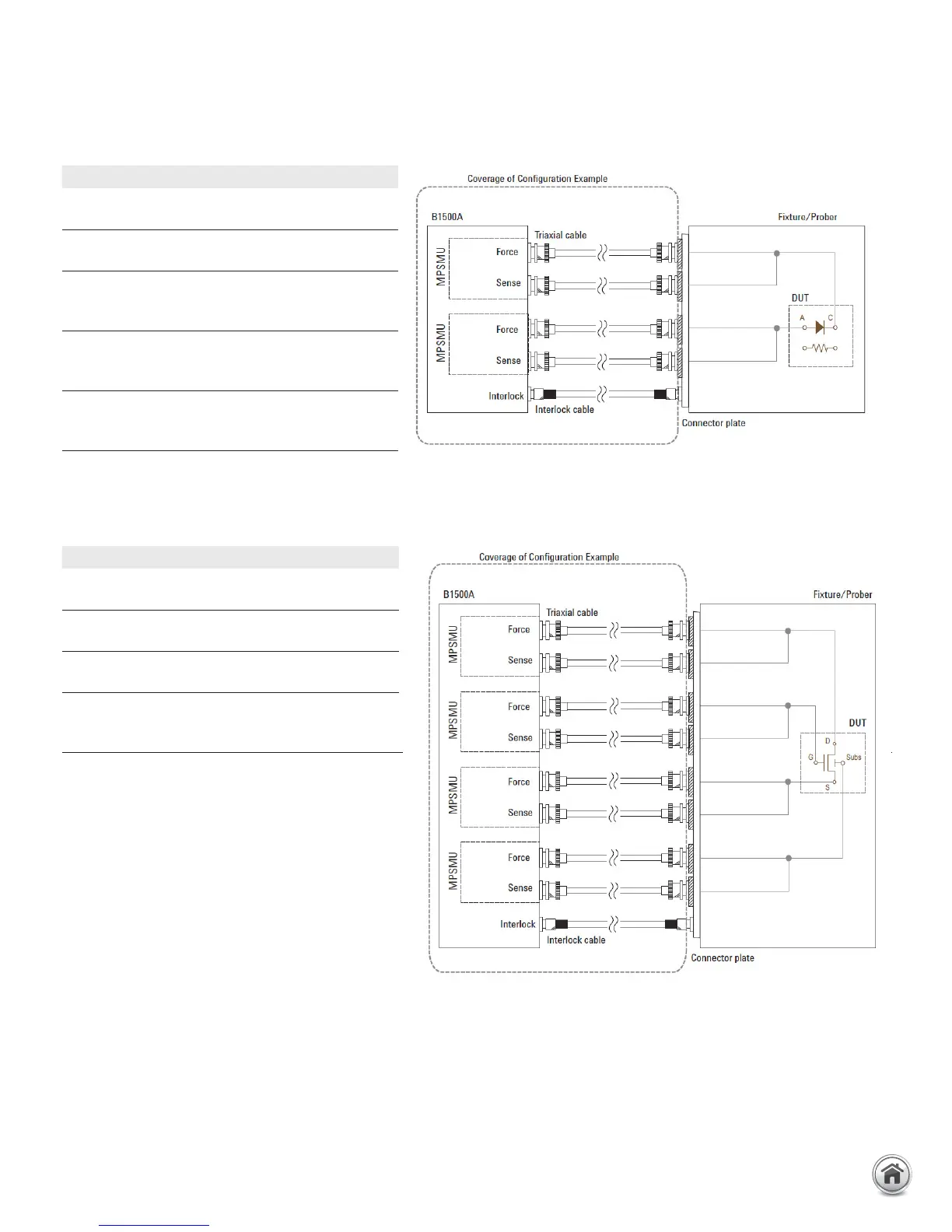

B1500A Configuration
Example-1. For IV characterization of 2-terminal device
Example-2. For IV characterization of 4-terminal device
Model/Option Description Qty
B1500A Semiconductor Device
Analyzer Mainframe
1
B1500A-015/ 030 1.5 m or 3 m length of
bundled cables
1
B1500A-A01 (or
A02)
Four MPSMU (or HRSMU)
and eight triaxial cables
1
B1500A-A5F Test fixture for packaged
device measurement, adds
one 16442B (Optional)
1
