Keysight Technologies B1500A

25 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide
Model/Option Description Qty
B1500A Semiconductor Device
Analyzer Mainframe
1
B1500A-015/030 1.5 m or 3 m length of
bundled cables
1
B1500A-A01 (or
A02)
Four MPSMU (or HRSMU)
and eight triaxial cables
1
B1500A-A29 (or
A28)
Adds one ASU, one D-sub
cable, and one triaxial cable
1
B1500A-A5F Test fixture for packaged
device measurement, adds
one 16442B (Optional)
1
B1500A Configuration, continued

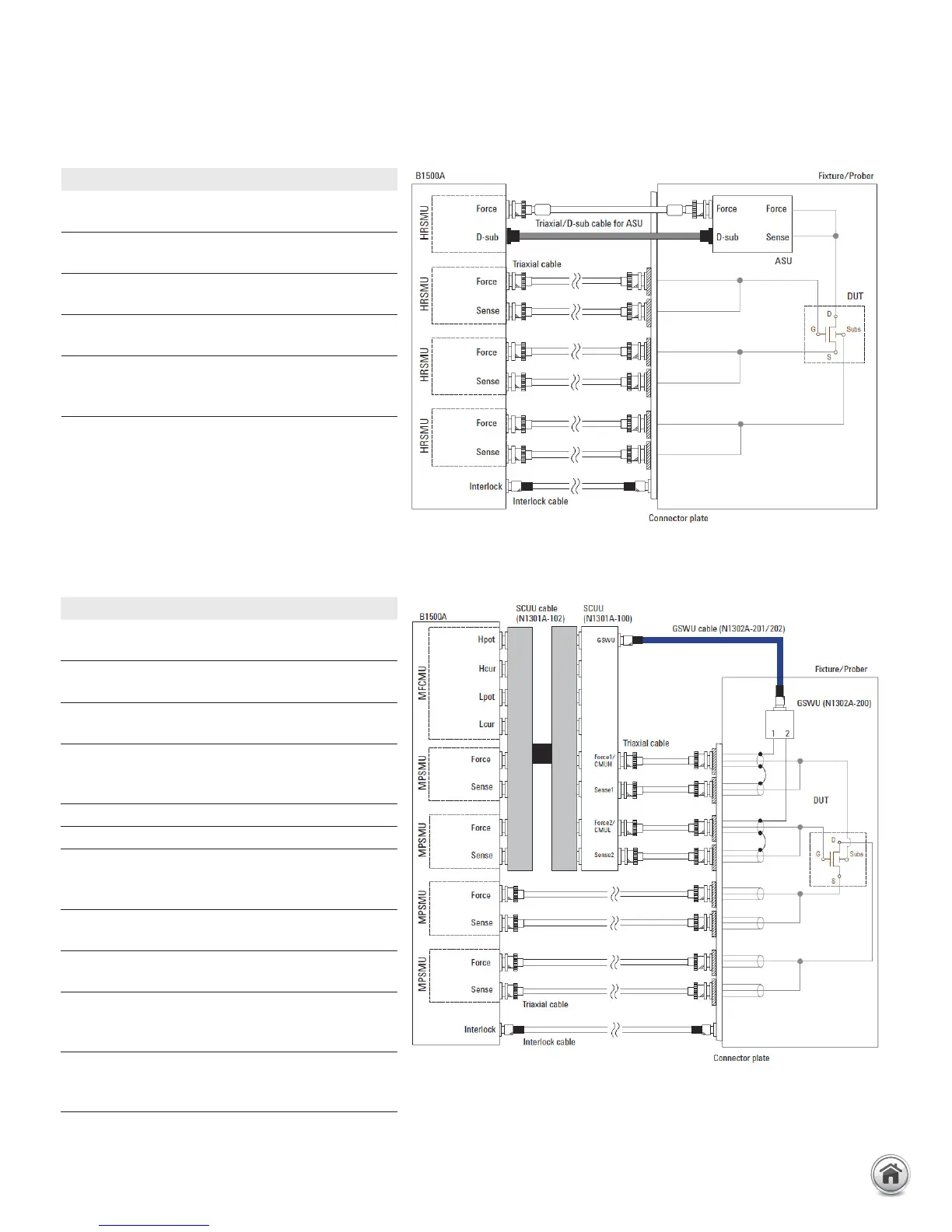

Example-3. For IV characterization of 4-terminal device with ASU
Model/Option Description Qty
B1500A Semiconductor Device
Analyzer Mainframe
1
B1500A-015/ 030 1.5 m or 3 m length of
bundled cables
1
B1500A-A01 (or
A02)
Four MPSMU (or HRSMU)
and eight triaxial cables
1
B1500A-A20 Capacitance measurement
add-on package, adds the
MFCMU and one CMU cable
1
N1301A Accessories for CMU 1
N1301A-100 SMU CMU unify unit (SCUU) 1
N1301A-102 SCUU cable, 3 m (Optional)
* Note the total cable
length.
1
N1301A-110 SCUU magnetic stand
(Optional)
1
N1301A-200 Guard switch unit (GSWU)
(Optional)
1
N1301A-201/ 202 GSWU cable, 1.5 m or 3
m (Optional. Required if
GSWU is ordered.)
1
B1500A-A5F Test fixture for packaged
device measurement, adds
one 16442B (Optional)
1
Example-4. For IV/CV characterization of 4-terminal device
