26 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide
Model/Option Description Qty
B1500A Semiconductor Device
Analyzer Mainframe
1
B1500A-015/ 030 1.5 m or 3 m length of
bundled cables
1
B1500A-A00 Empty package for custom
solution, contains no
measurement module
1
B1500A-A11
(or A17)
Adds one MPSMU (or
HRSMU) and two triaxial
cables
2
B1500A-A1A Adds one MCSMU,
connection box (N1255A)
and two triaxial cables
1
B1500A-A5F Test fixture for packaged
device measurement, adds
one 16442B (Optional)
1
16494A Triaxial cable (Select cable
length option)
4
B1500A Configuration, continued

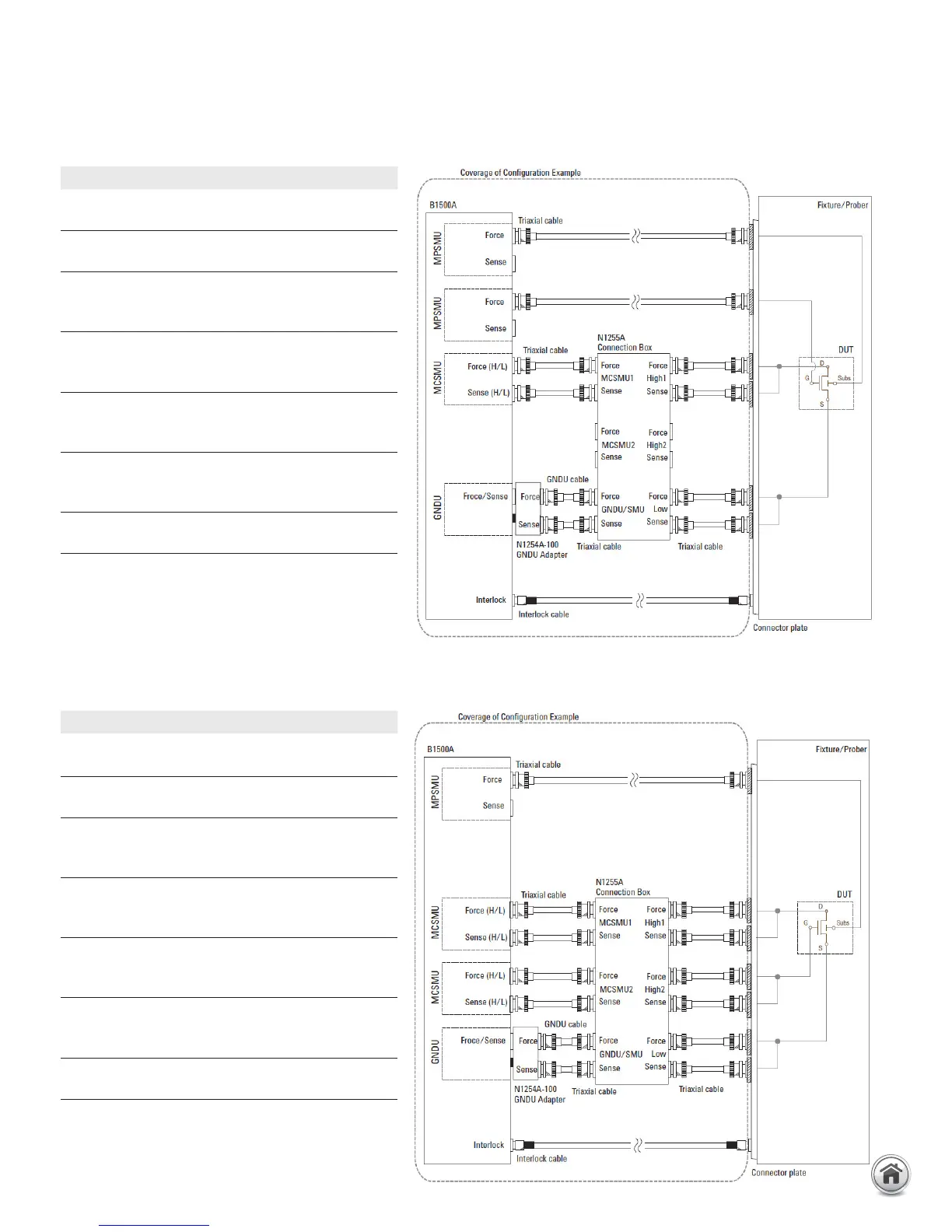

Example-5. For 50µs pulse using one MCSMU for 4-terminal device
Model/Option Description Qty
B1500A Semiconductor Device
Analyzer Mainframe
1
B1500A-015/030 1.5 m or 3 m length of
bundled cables
1
B1500A-A00 Empty package for custom
solution, contains no
measurement module
1
B1500A-A11
(or A17)
Adds one MPSMU (or
HRSMU) and two triaxial
cables
1
B1500A-A1B Adds two MCSMU,
connection box (N1255A)
and four triaxial cables
1
B1500A-A5F Test fixture for packaged
device measurement, adds
one 16442B (Optional)
1
16494A Triaxial cable (Select cable
length option)
6
Example-6. For 50µs pulse using two MCSMU for 4-terminal device
